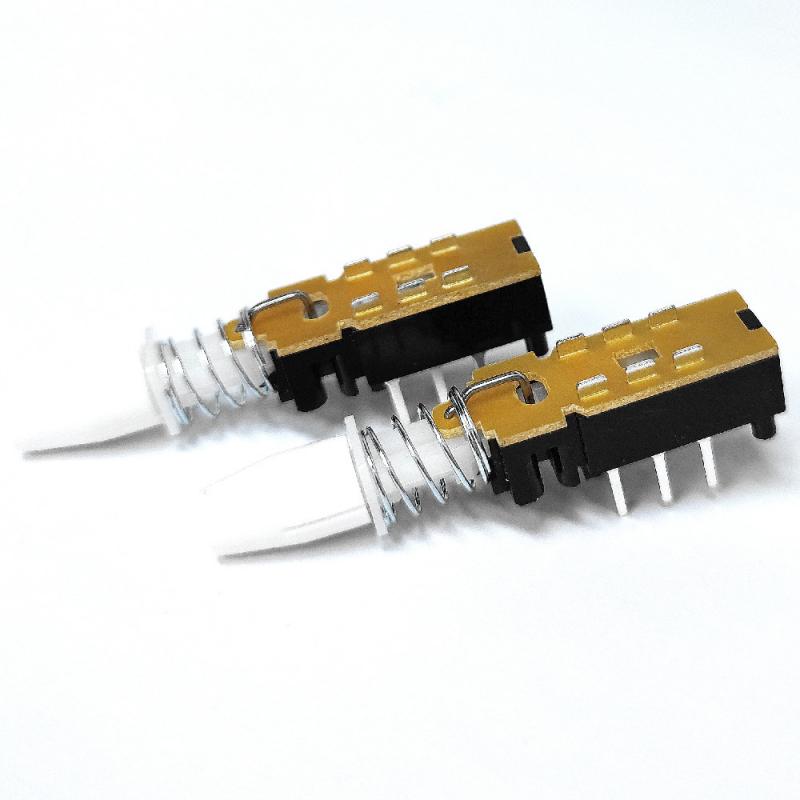

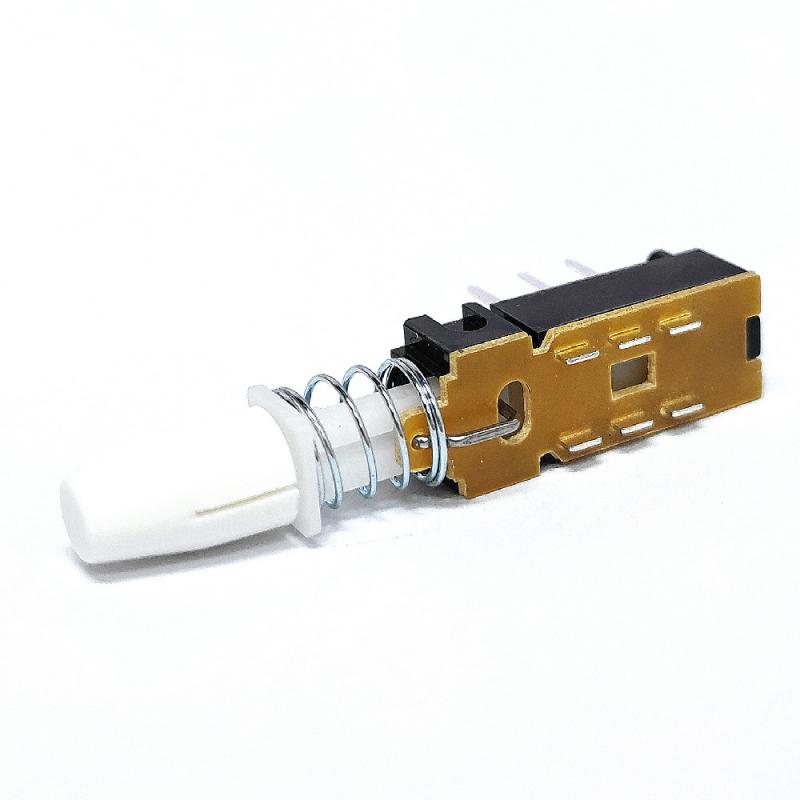

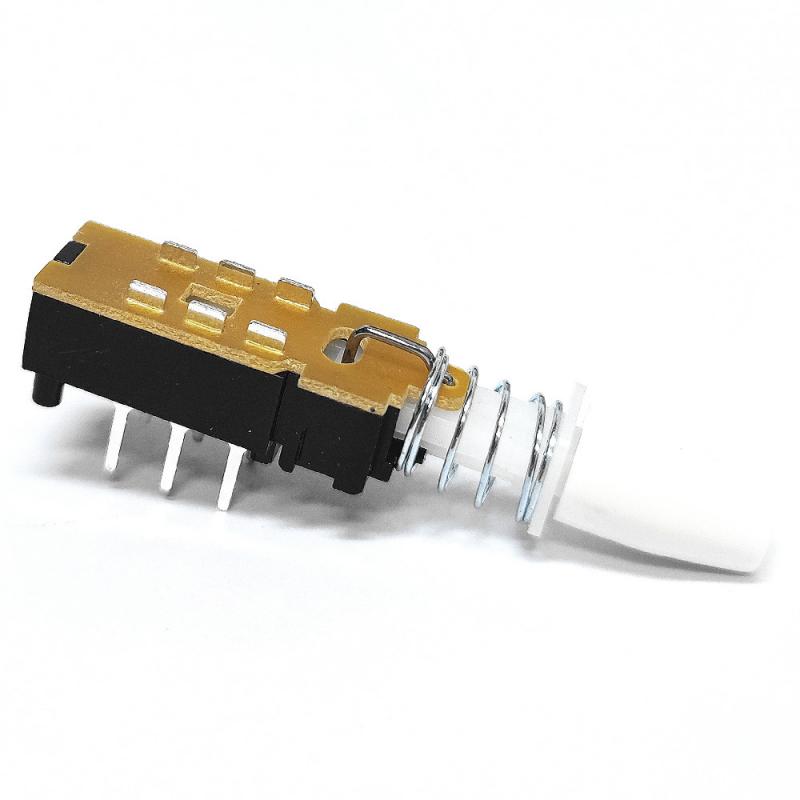

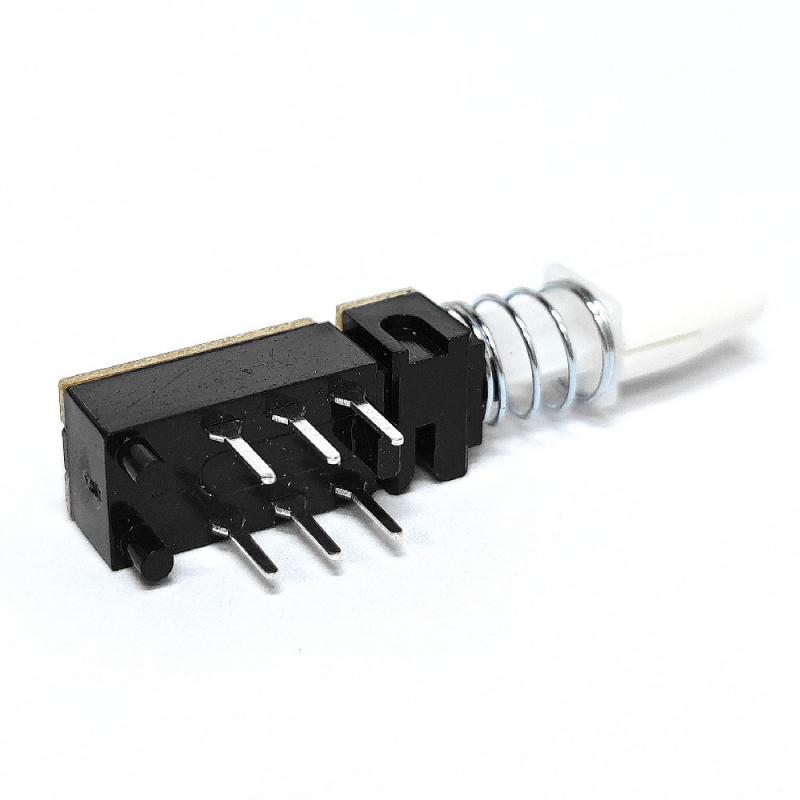

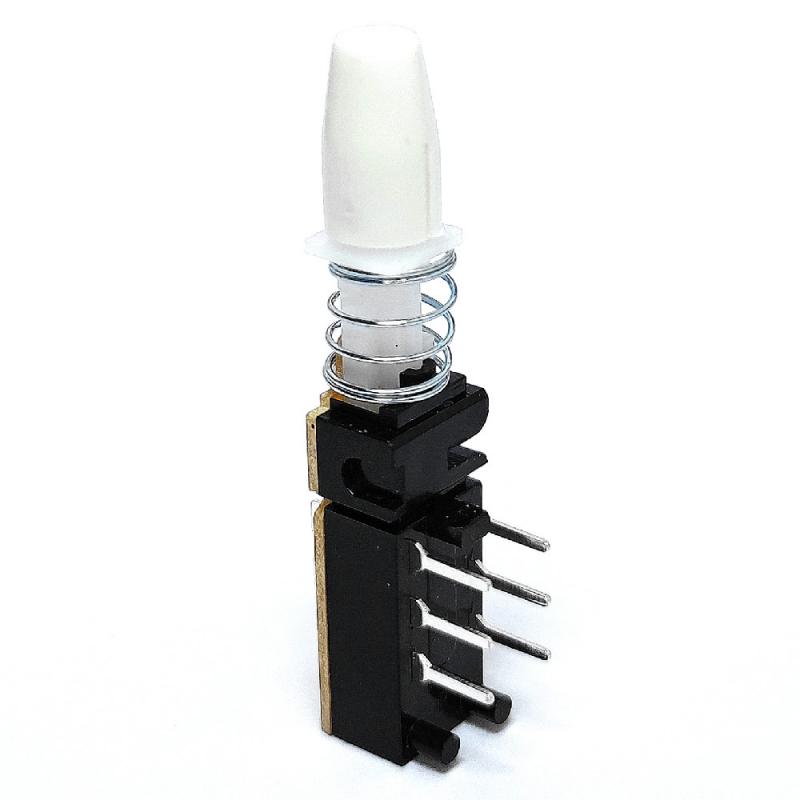

Straight key push switch (button) is a momentary or non-latching switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. This type of switch is also known as a Normally Closed (NC) Switch
Brand:
GangyuanItem NO.:
PS22G15-Ll-J3-A0903Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentwhite cap cut solder lugs straight 6 pin latching key pushbutton switch
Specification
Type: Pushbutton Switch DPDT Standard Through Hole, Right Angle
Operating force: 600gf±100gf
Life: 10000 cycle
Locking stroke: 3.9±0.5mmFull stroke: 5.6±0.5mm
Insulation resistance: DC500V/1min 100MΩ Min

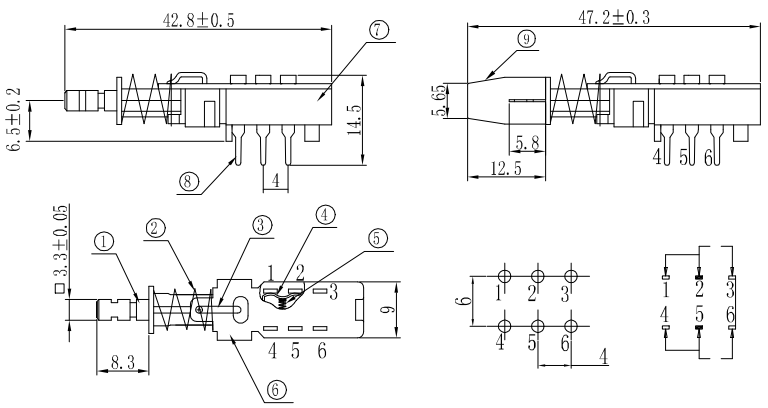

Drawing
Typical Applications
• Audio selection • Digital equipment interface • Medical equipment interface

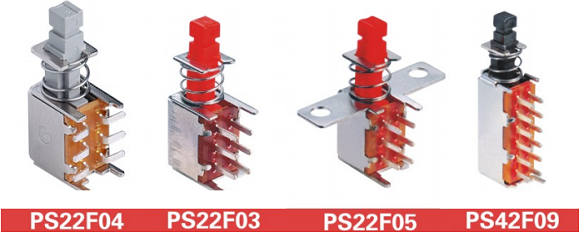

Pushbutton switch types
Mechanical Function:
Alternate (push-push)
Interlock
Central release
Momentary with lockout
Interlock with lockout
