Wenzhou Gangyuan Electronics Co.,Ltd.

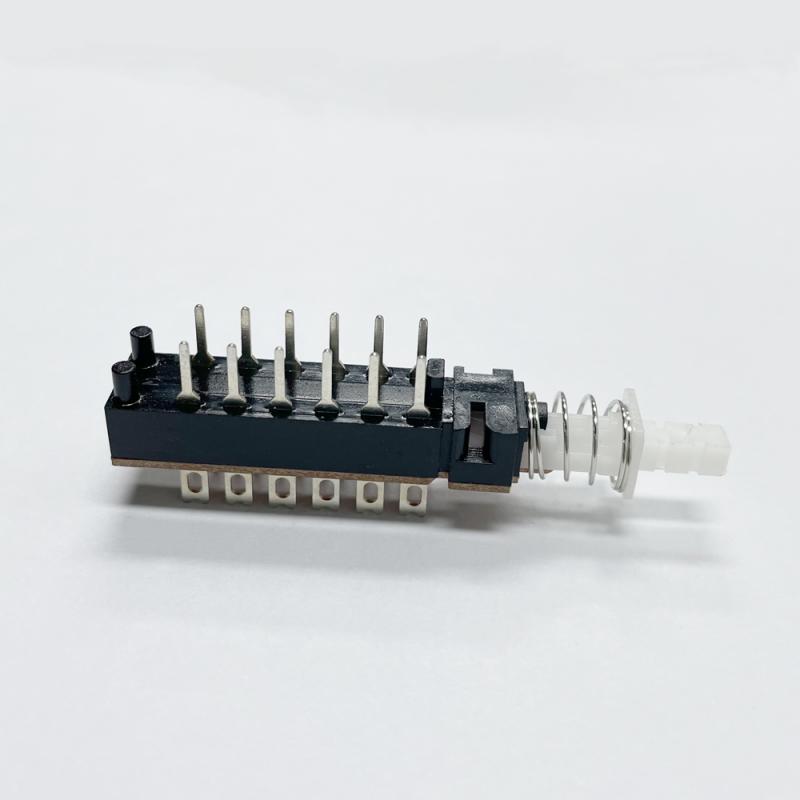

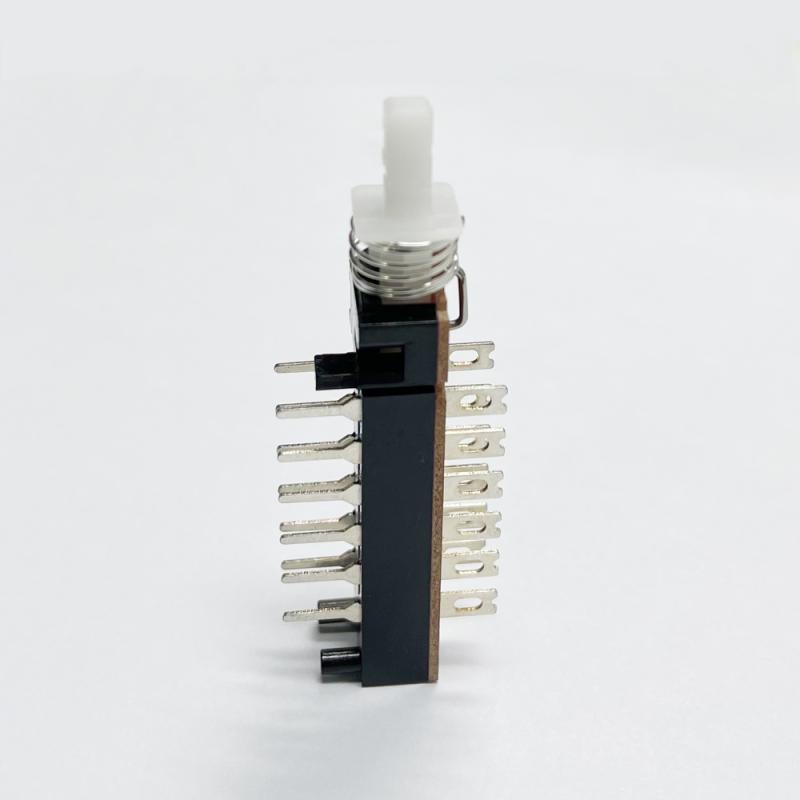

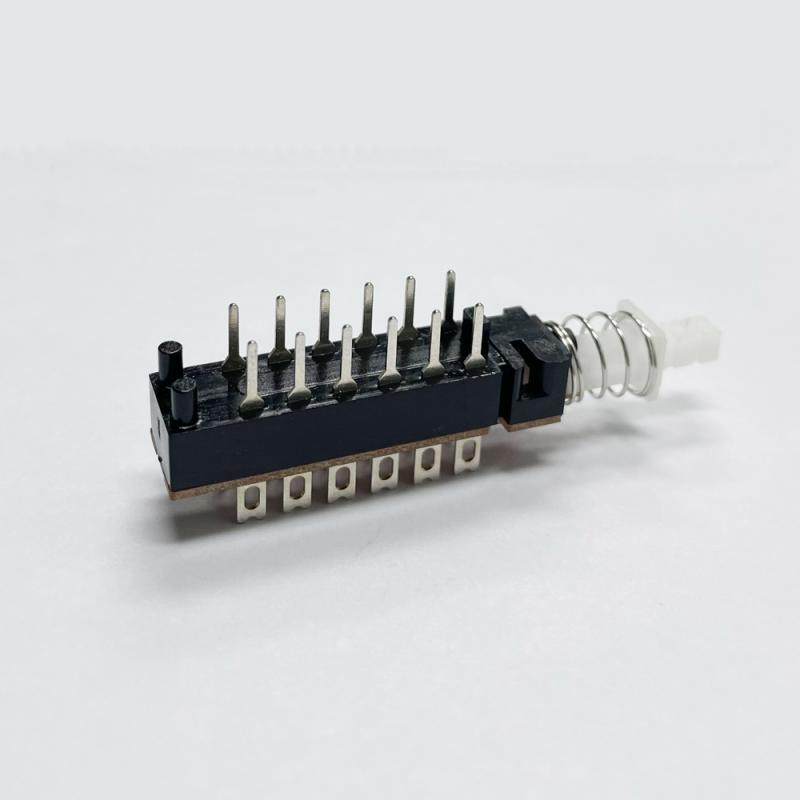

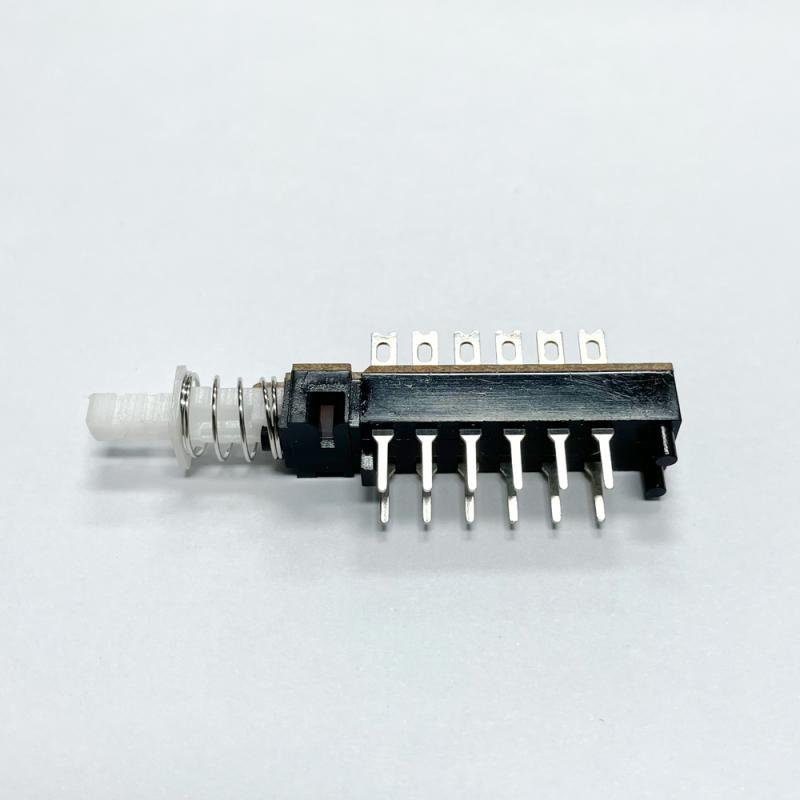

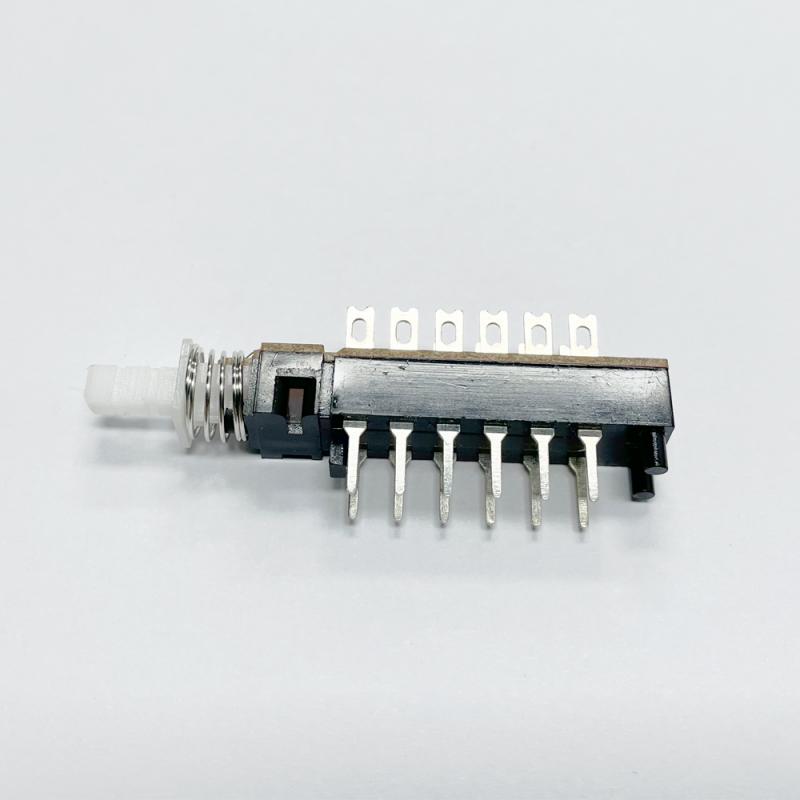

This push button sswitch are widely used on kind of device.
Latching type will help you to reset your application or control easilly.
It is a DPDT push button switch.
It has two actions.
Brand:
GangyuanItem NO.:
PS-24H18Order(MOQ):
500Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
MetalShipping Port:
Ningbo/ShenzhenLead Time：
15-20 working days for payment
Push button switch datasheet
Type: push button switches
Ratings: 30VDC, 0.5A
Contact resistance: 100mΩ Max
Insulation resistance ：DC500V 100M Ω/Min
Protection force: 2-10N
Life: 5000cycles

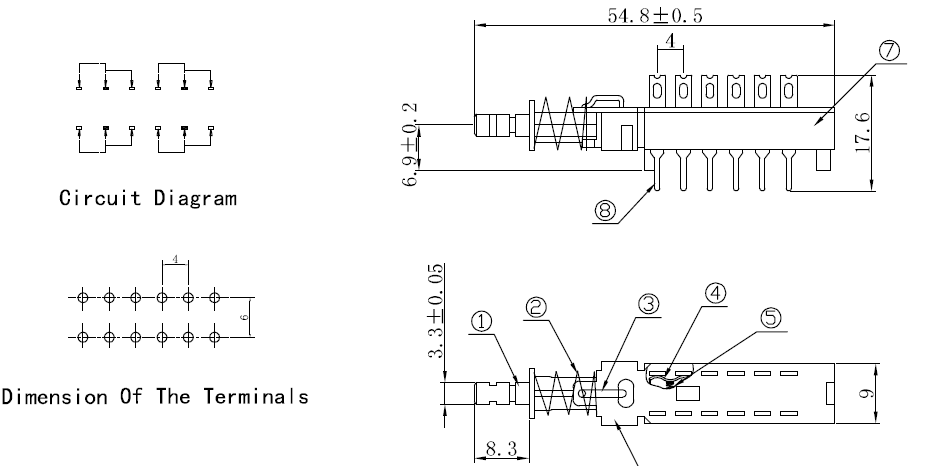

Dimension
How does the push button switch work?
A push button switch is latching switch which stop power on and off hwen push on the stem, in the state of an electrical circuit ... A 'push to make' switch allows electricity to flow between its two contacts when held in. When the button is released, the circuit is broken.
Application
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 5-7 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 15-20 working days after order confirmed
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
