A straight key switch is a key switch in which the button action direction is consistent with the transmission direction.
Brand:
GangyuanItem NO.:
PS-22F02XL-13Order(MOQ):
500pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
YellowShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
12.20mm x 7.80mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

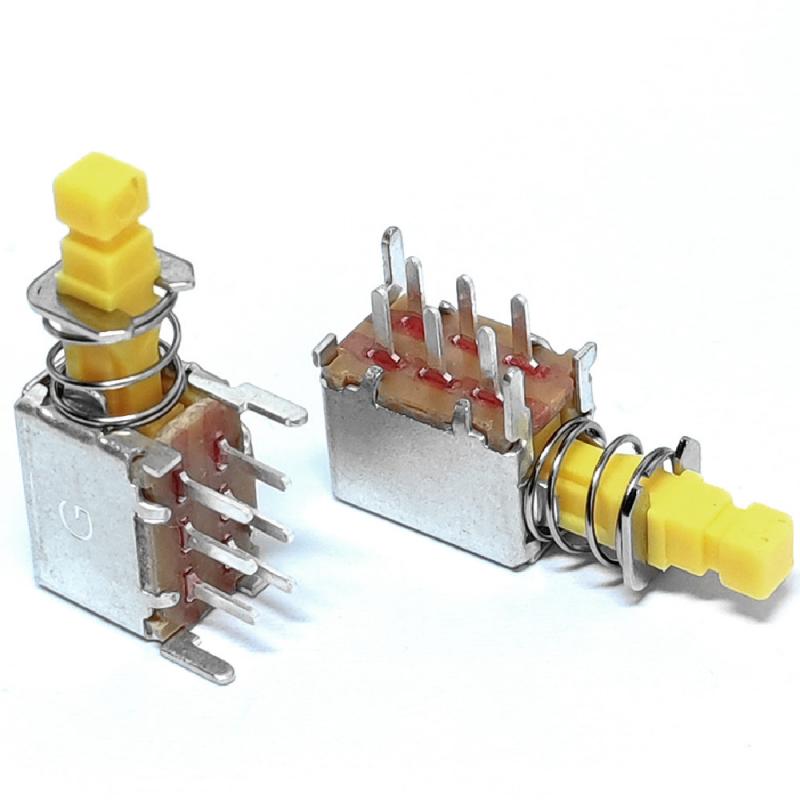

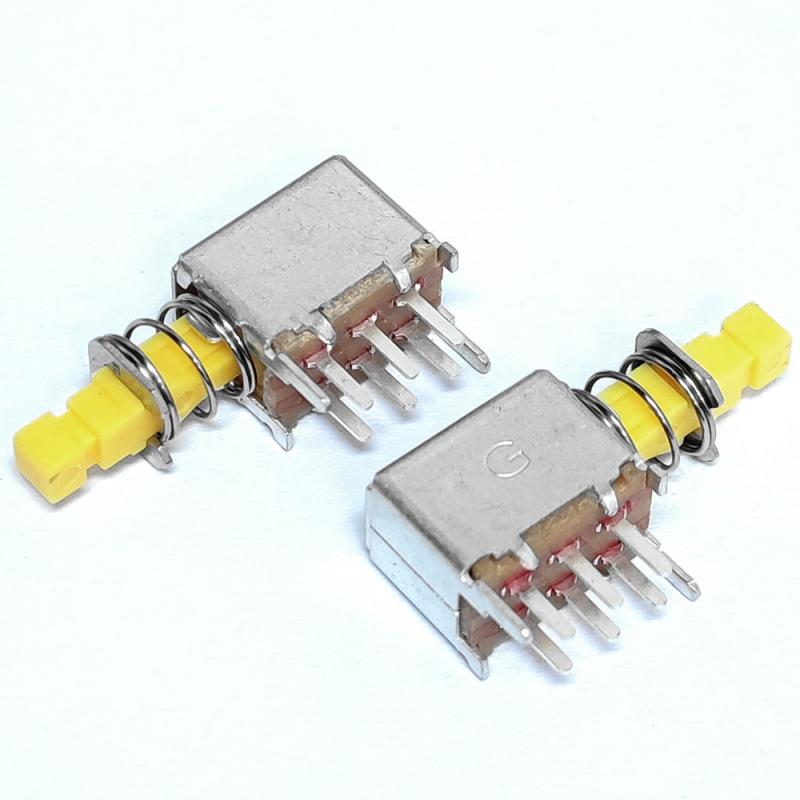

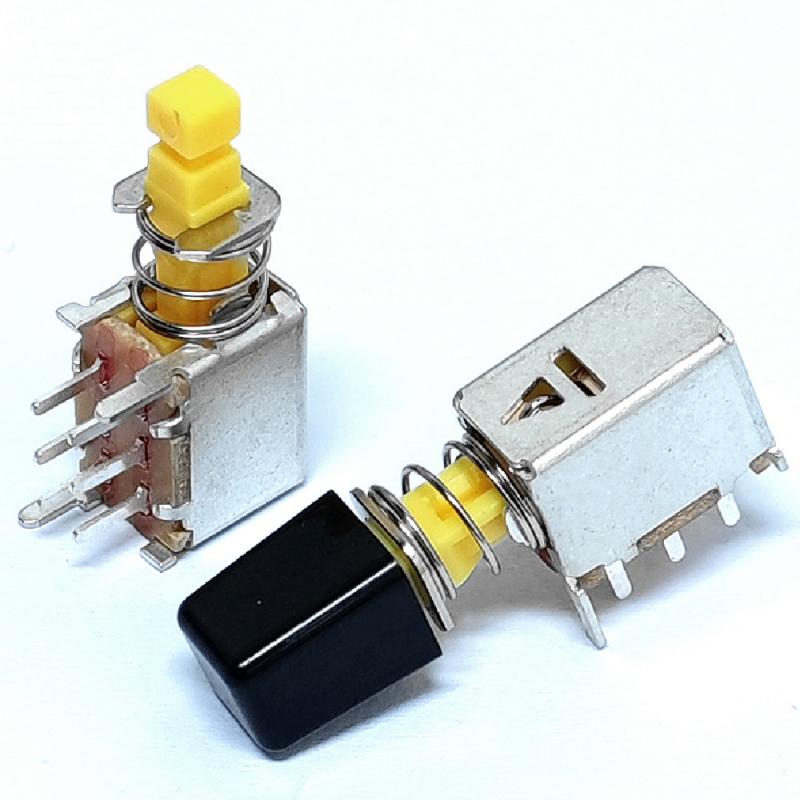

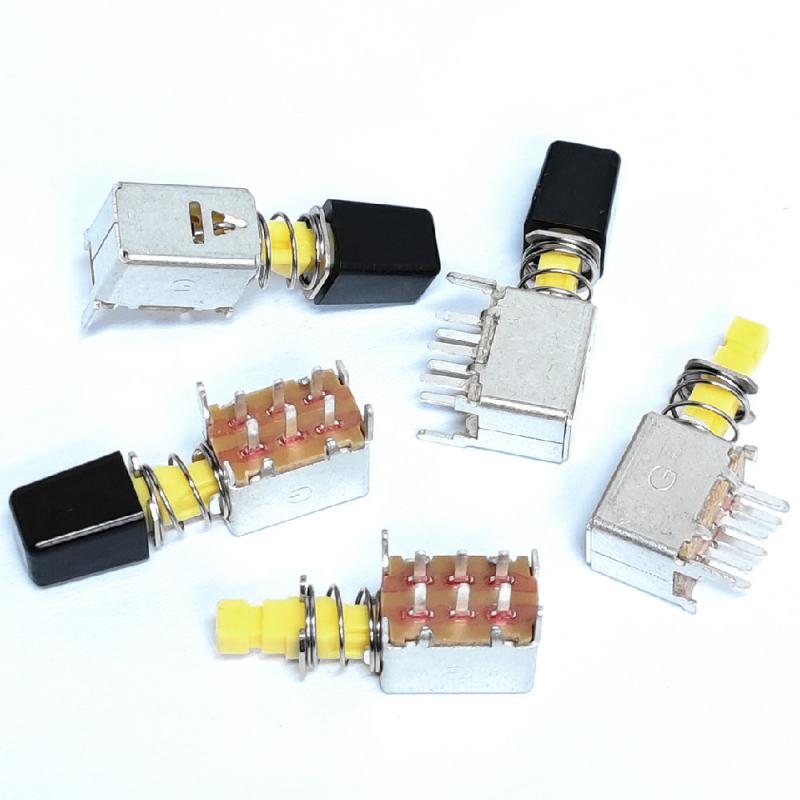

No IP RatingWholesale Latching switch DC12V 3A ON-ON right angle straight key pushbutton switch
Specification
Type: 6 pin DPDT straight key push button switch
Ratings:DC 12V 3A
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating force: 500±100 gf
Operation Life: 10,000 cycles
Function: Self lcok

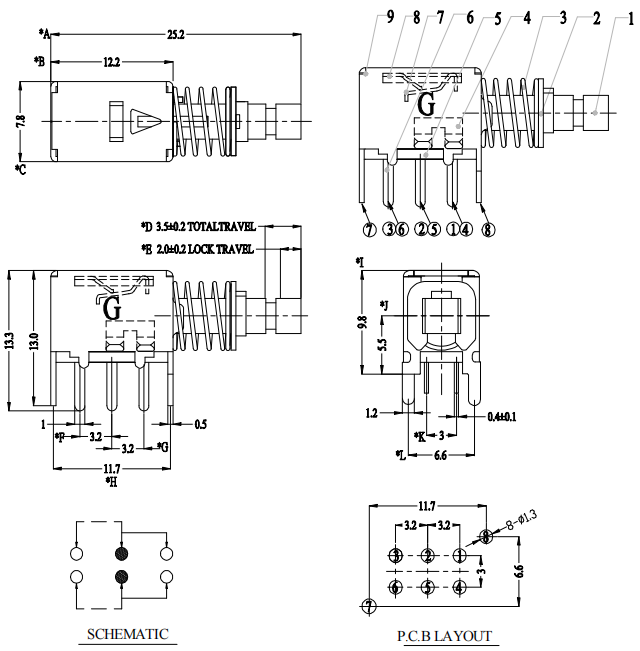

Schematic
How does a straight key switch work ?
The working principle of the direct key switch is based on a simple mechanical structure.When the key is pressed,
the contact on the key connects to the electrical contact inside the switch, closing the circuit and allowing current to flow.
When the key is released, the contact disconnects from the contact, the circuit is broken, and the current stops flowing.
This mechanical switch is designed to be reliable and durable, suitable for scenarios that require frequent operation.

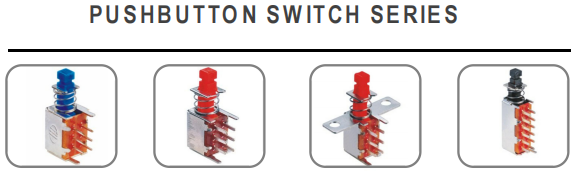

Similar Options
PS22E05 type straight key pushbutton switch
PS42F42 type straight key pushbutton switch
Dip type right angle pushbutton switches
Applications
Telecommunications / Networking
Computers/servers / Performance audio
Instrumentation / Low power on/off designs
External hard drives and modems
Why choose us ?
Strong and durable, source manufacturer
From the personnel engaged in production, R&D, quality to the scale of hardware equipment, we are your reliable strength.
Environmentally friendly materials
Every shipment is strictly controlled by our engineering and quality to ensure quality

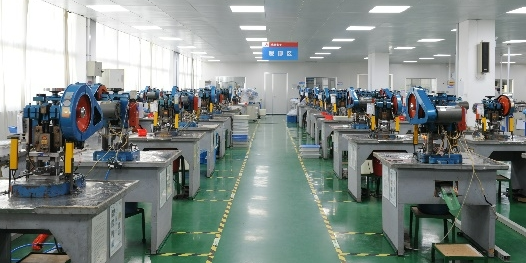

Precision production, stable delivery
Strict quality system, strict testing process, stable delivery time
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
