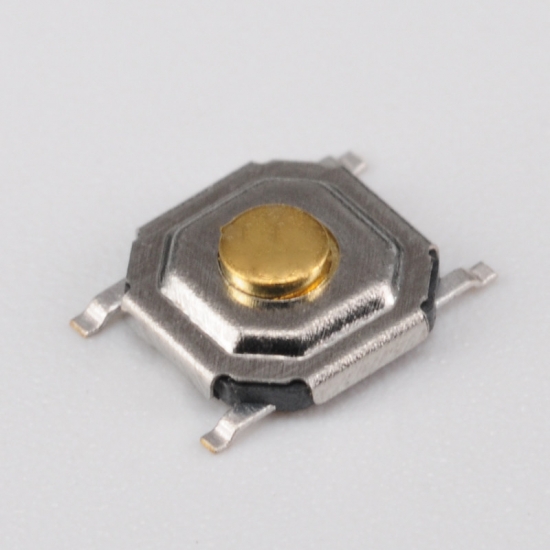

mini momentary tactile tact switches

12v 100g/160g/260g mini momentary tactile tact switches

Brand:
Gangyuan
Item NO.:
KAN0541
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
silver
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
5.20mm x 5.20mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

12v 100g/160g/260g mini momentary tactile tact switches

Basic Information

Model No.:	KAN0541
Dimension:	3.1X3.1X1.5mm
Operating force:	100g/160g/260g
Life cycles:	around 200 000circle
Working tempreture:	-20℃to+70℃
DC rating:	12V DC, 50mA (effective value)
Insulation resistance:	100MΩ min.100V DC
Dielectric strength:	250V AC for 1 min
Contact resistance:	100m Ω max.
Full travel :	0.25±0.10 mm
Features:	Dust and soldering flux proof

Dimension

smd tact switch.jpg

tactile switch.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
