Wholesale Price 5mm Smd Tact Switch Tactile Switch

KAN0545: 5*5mm, metal push, smd tact switch.

Brand:
Gangyuan
Item NO.:
KAN0545
Order(MOQ):
1000
Payment:
T/T, Paypal full payment before produce
Product Origin:
China
Color:
Metal
Shipping Port:
Ningbo/ Shenzhen
Lead Time：
5-7 working days

Product Detail

Wholesale Price 5mm Smd Tact Switch Tactile Switch

Basic Information

P/N	KAN0545
Dimension	5*5mm
Rating current	12VDC 50mA
Operating force	100gf, 160gf, 260gf(at customers request)
Life cycles	600,000/800,000/100,000cycles
Travel	0.25±0.1mm

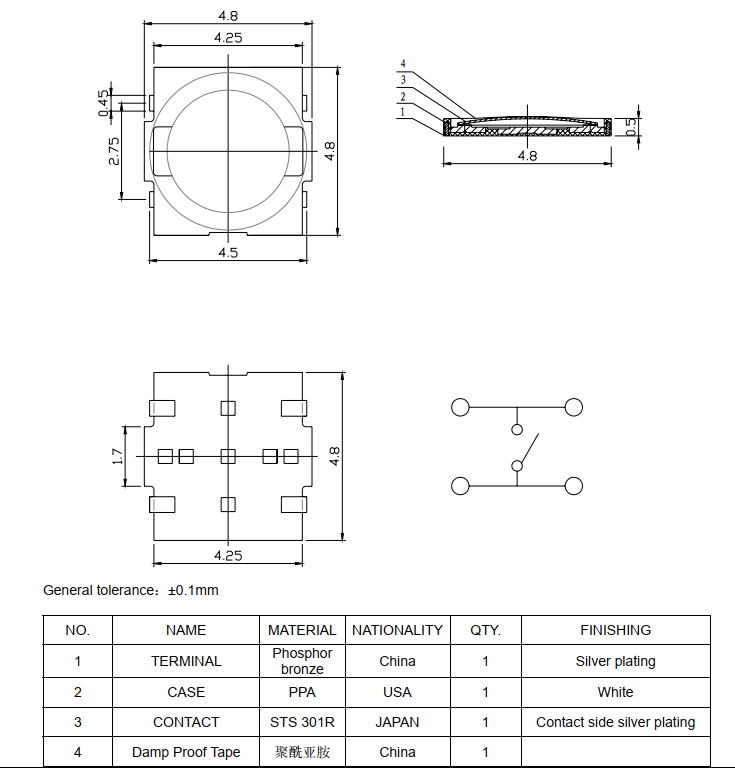

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
