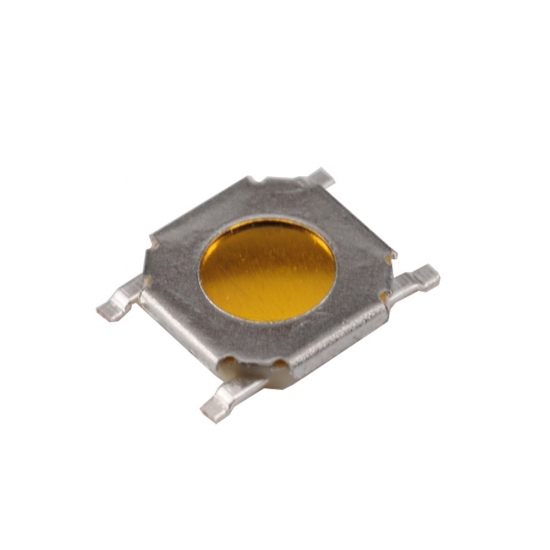

KAN0543: 5.1*5.1mm, SMD type, metal tactlie switch.
Brand:
GangyuanItem NO.:
KAN0543Order(MOQ):
1000Payment:
T/T, Paypal full payment before produceProduct Origin:
ChinaColor:
BlackShipping Port:
Ningbo/ ShenzhenLead Time：
5-7 working days5.1x5.1SMT SPST SUS301 Cover Tact Switch, Consumer Electronics Using
Basic Information
|
P/N |
KAN0543 |
|
Dimension |
5.1*5.1mm |
|
Rating current |
12VDC 50mA |
|
Operating force |
100gf, 160gf, 260gf(at customers request) |
|
Life cycles |
40,000/ 50,000/ 60,000 cycle |
|
Travel |
0.25±0.1mm |
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches
2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
