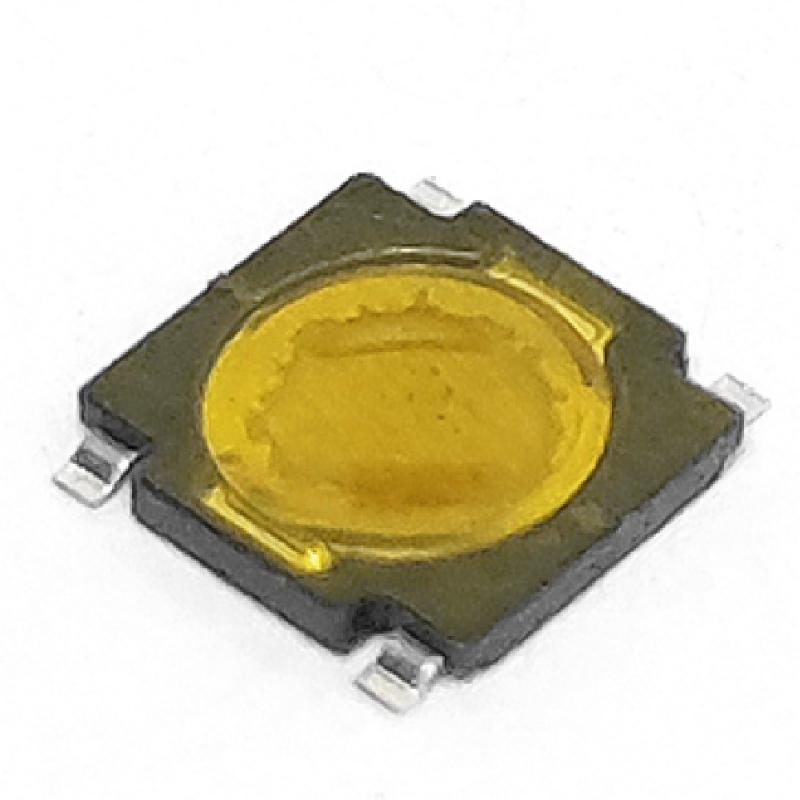

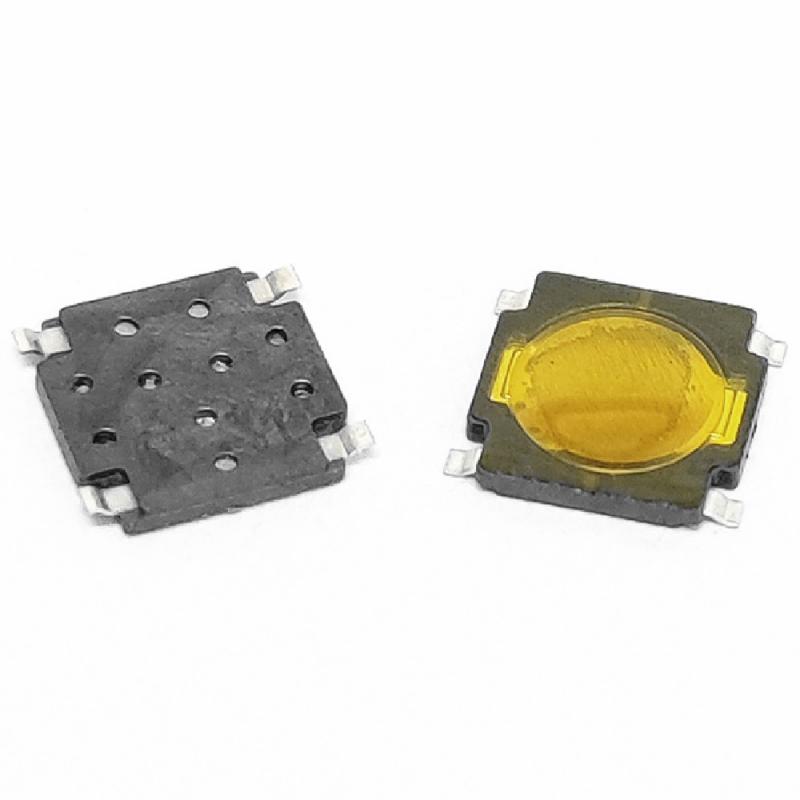

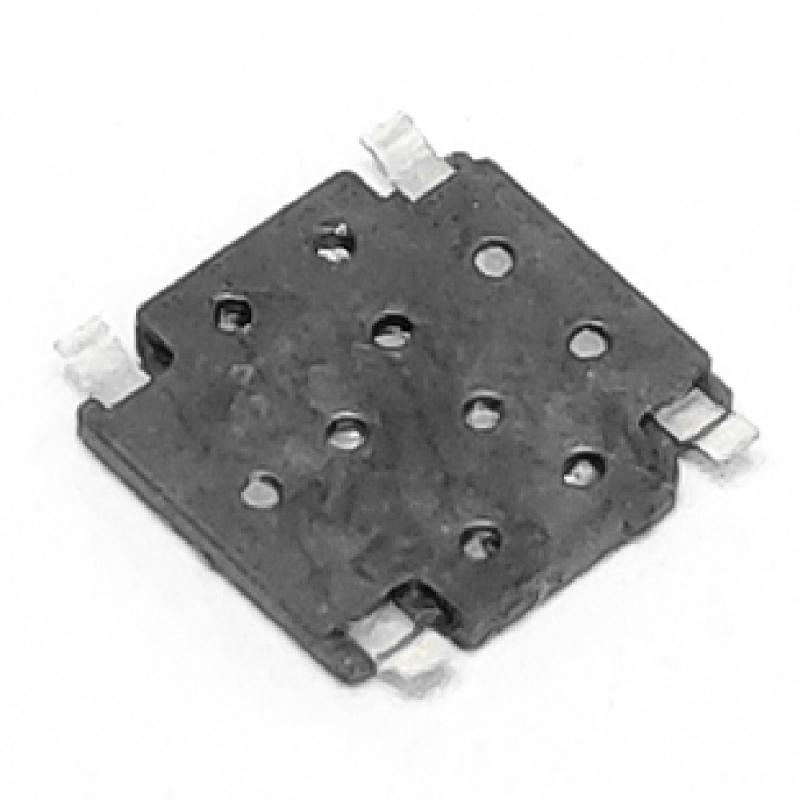

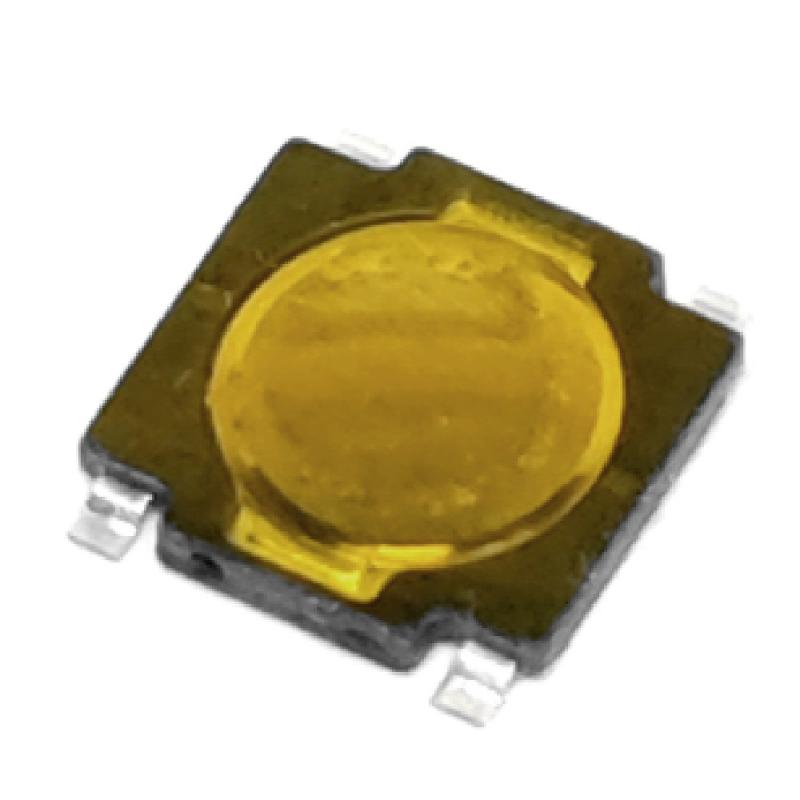

Microminiature SMT film tact switch

The switch is ideal for applications requiring high-density components in limited PCB space, such as car key fobs, navigation, and health and medical devices.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN4041-B0301-14
  • Order(MOQ):

    5000
  • Payment:

    100% T/T Before Production
  • Product Origin:

    China
  • Color:

    Black and Yellow
  • Shipping Port:

    WenZhou/Shenzhen
  • Lead Time:

    7-14 Working Days For Payment
  • Outline (mm)

    4.00mm x 4.00mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

3.7*3.5mm normally open surface amount tact switch

wholesale momentary tact switch company  with membrane


Parameters


12V mini tact switch

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 180±50 gf
Full Travel: 0.2±0.1mm
Operation life: 300,000 cycles

Solder temperature: 245±5℃

Operating Temperature Range: -30℃~80℃

Storage Temperature Range: -40℃~90℃

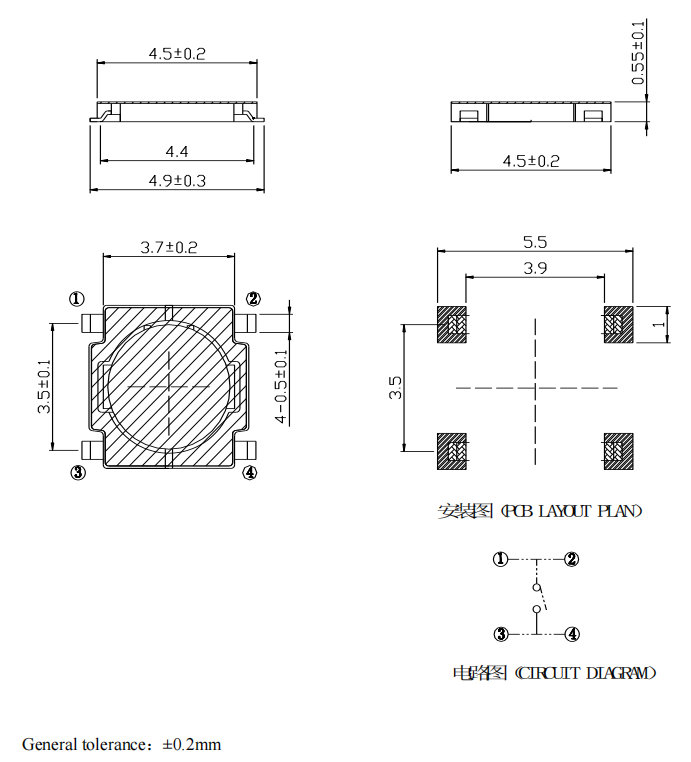

Drawing



Application of ultra-thin tact switch


  • digital product
  • remote control
  • Communication Products
  • household appliances
  • security product
  • Toy
  • computer products
  • medical equipment, etc.


Related Products



Reel Packaging


1. Reel/5000 PCS

2. Bag/ 2 Reels /10000 PCS



3. Carton/10 bags/20 Reels/100,000PCS
