t105/55 rocker switch

A rocker-style switch is significantly wider and flatter than a traditional toggle switch. It functions in the same way to turn power on and off, but it requires less hand pressure to operate.

Brand:
Gangyuan
Item NO.:
KCDRS601DB-2010033BB
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Product Detail

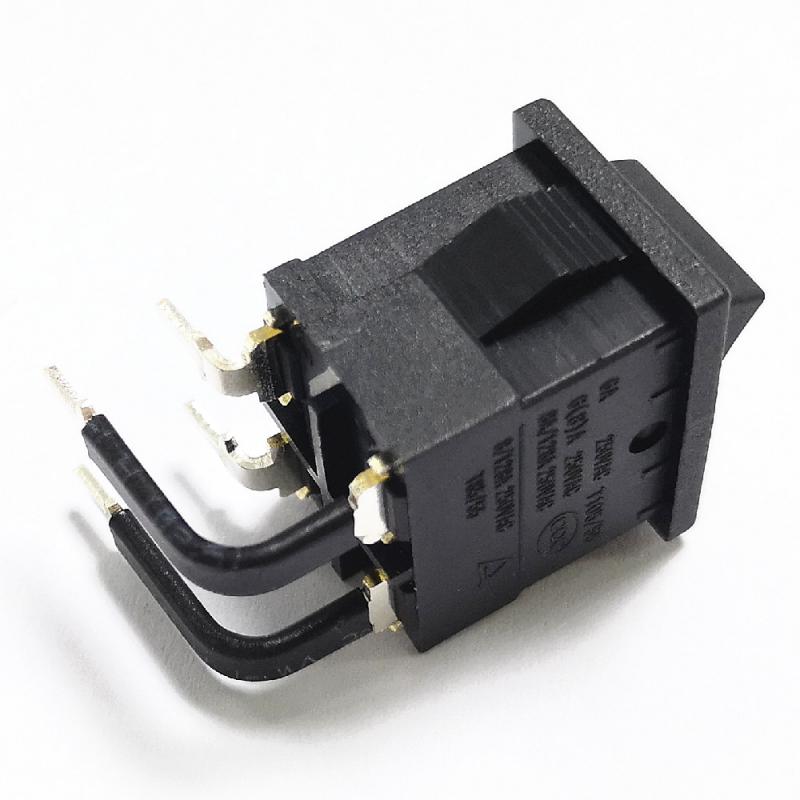

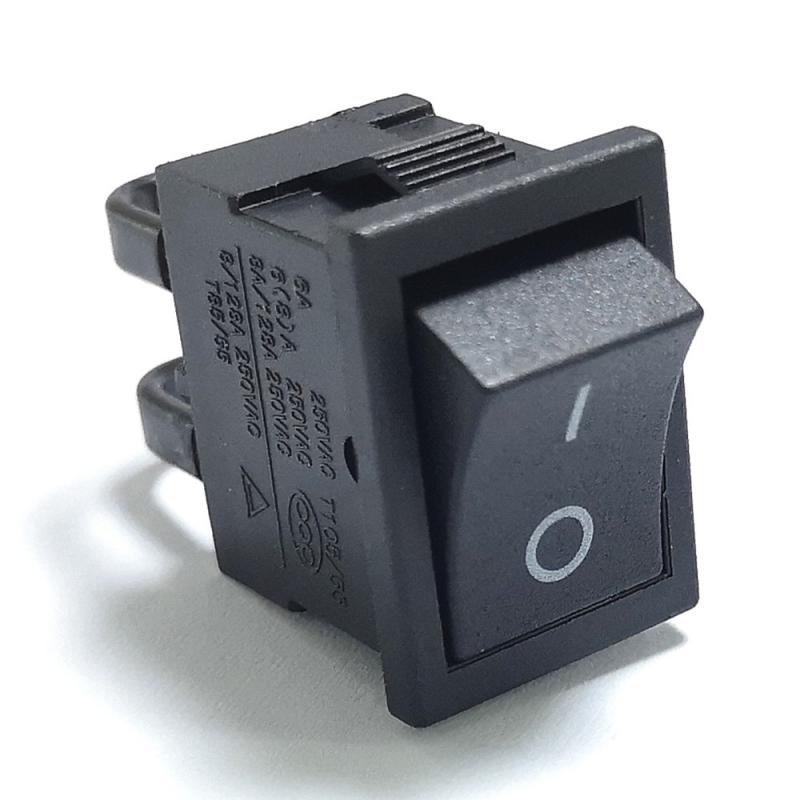

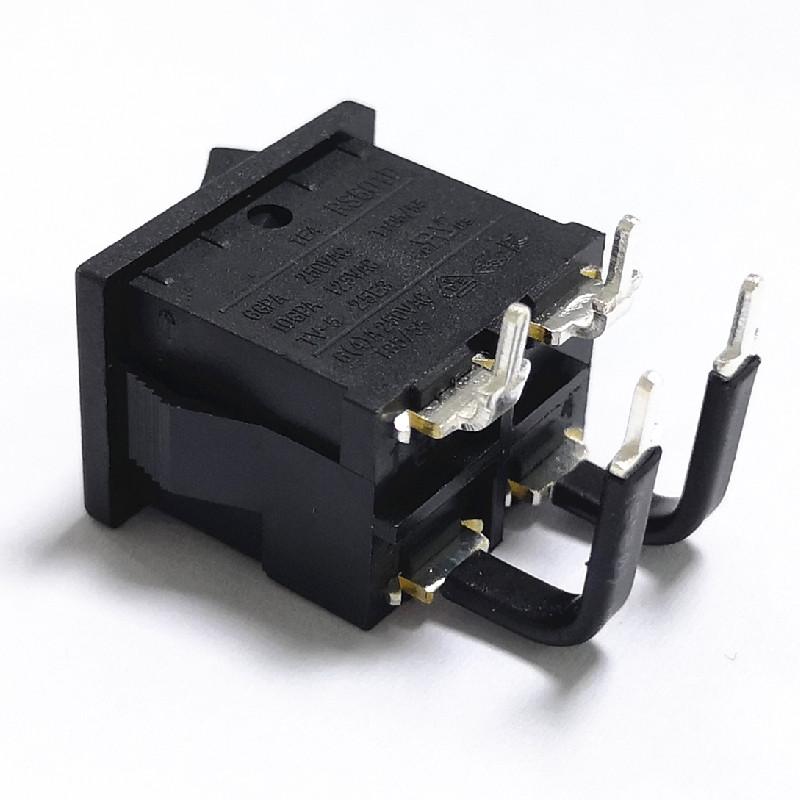

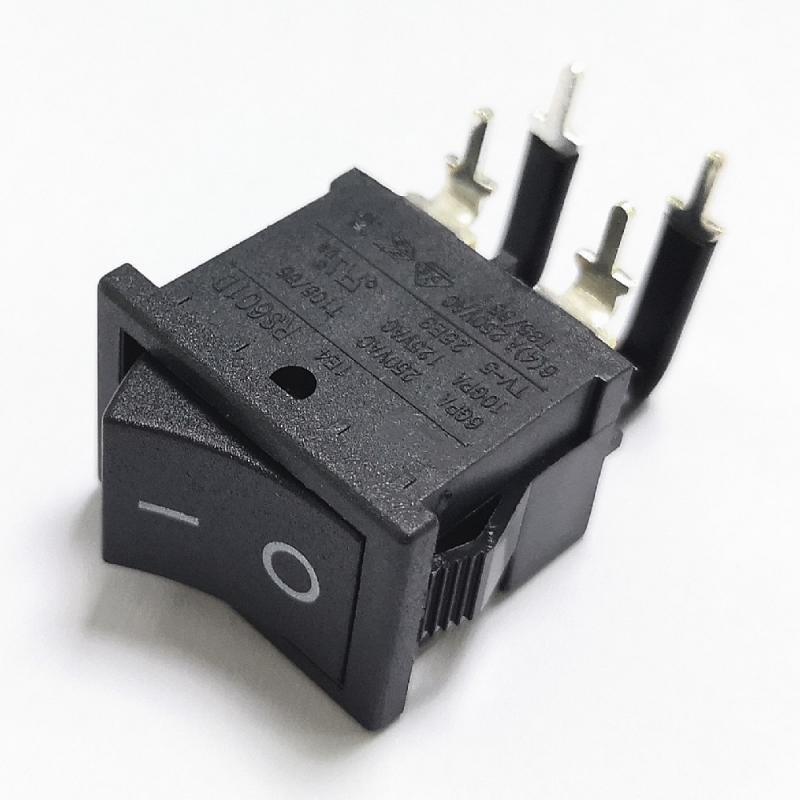

right angle 4 pin pcb 6A 250VAC on-off rocker switch

Rocker switch datasheet

Number: KCDRS601DB-2010033BB

Rating: 6A,250VAC

Contact resistance:≤50mΩ(initial)

Insulation resistance: ≥100MΩ

Mechanical Life: ≥10000 cycles

Electrical life:≥10000 cycles

Circuit Diagram: 4P ON-OFF

Terminal strength: ≥ 80N

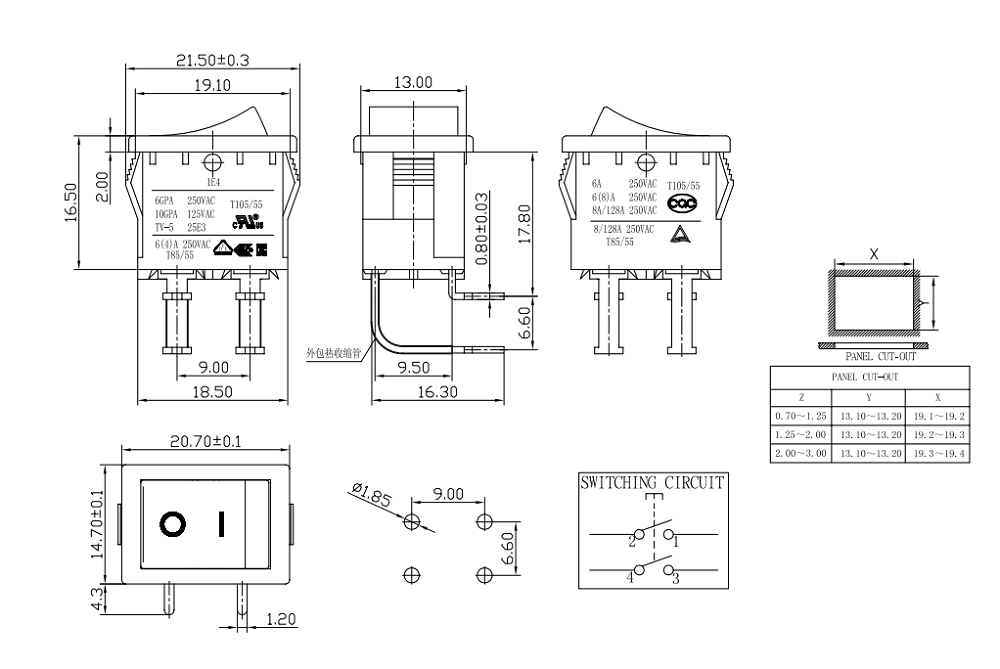

Drawing

t105/55 switch

Character

A rocker switch is an electrical on/off switch that rocks from one side to the other when pressed, leaving one side raised and the other depressed. This rocking mechanism will either connect or disconnect an electrical circuit.

Application

instrumentation front panels (shut-off switches)
electrical equipment (power supplies, power outlet strips, battery chargers)
household appliances (small and large, vacuum cleaners, food equipment)
computers and peripherals (servers, network hubs, routers)
telecommunications
audio/visual equipment
industrial equipment (control panels, handling and packing machines, HVAC units, shop vacs)
small equipment (handheld devices, electric tools, office equipment)
lighting fixtures, emergency lighting and generators
off-road vehicles
medical equipment
