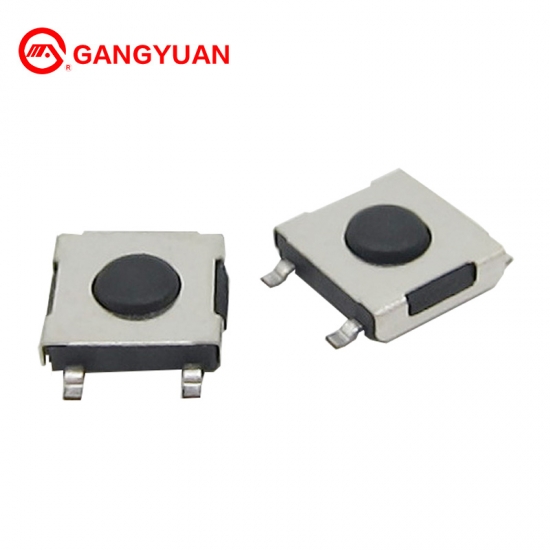

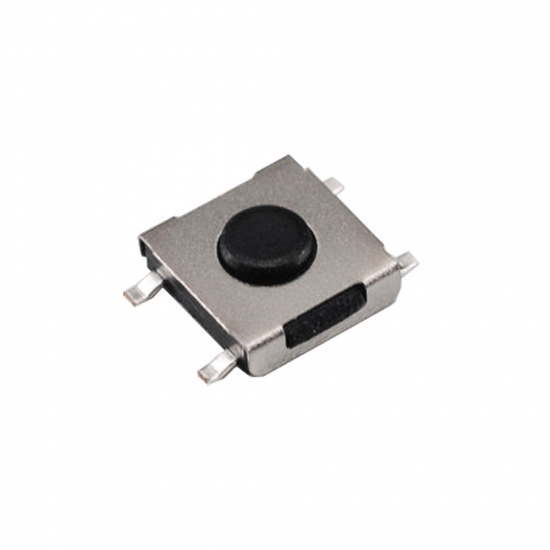

Low Profile SMD Momentary Switch Push Button

1.5mm-Height Low Profile SMD Momentary Switch Push Button with CQC

Brand:
Gangyuan
Item NO.:
KAN4544C
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

Product Descrption:

Product name	SMD Tactile Switch
Operation force	260gf
Full travel	0.2±0.1mm
Return force	0.6N MIN
Low temperature resistance	-30±2℃,96h
Heat resistance	80±2℃,96h
Sulfuration resistance	72h,40±2℃
Salt Mist	8h±1h,35℃±2℃
Operation life	100,000 cycles
