The incremental encoder converts the displacement into a periodic electrical signal, and then converts the electrical signal into a counting pulse, and uses the number of pulses to represent the magnitude of the displacement.
Brand:
GangyuanItem NO.:
GE1103H5KS4H1-000Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Green and silverShipping Port:
Ningbo/ShenzhenLead Time：

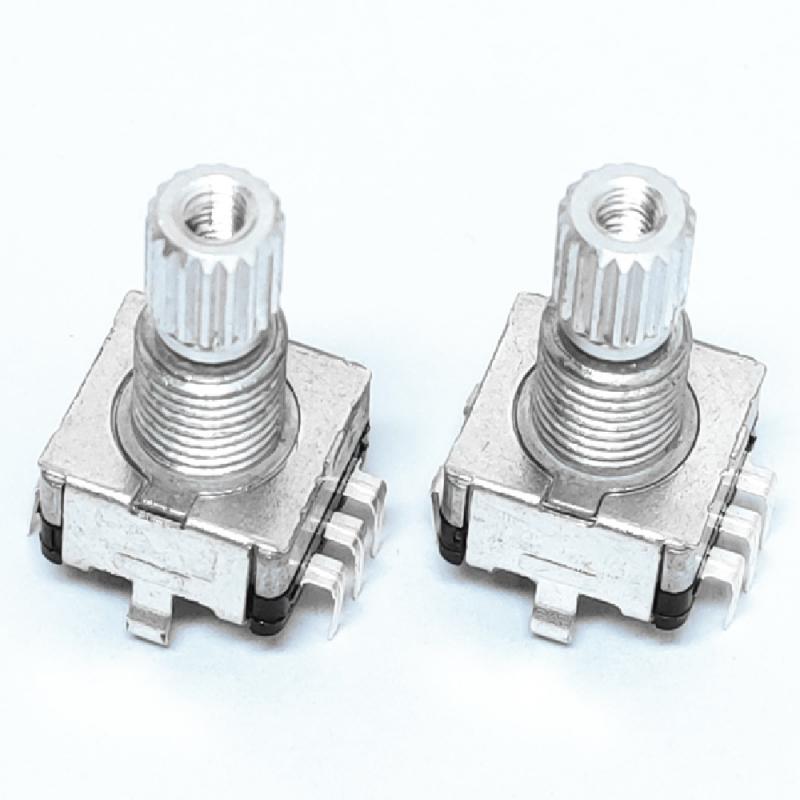

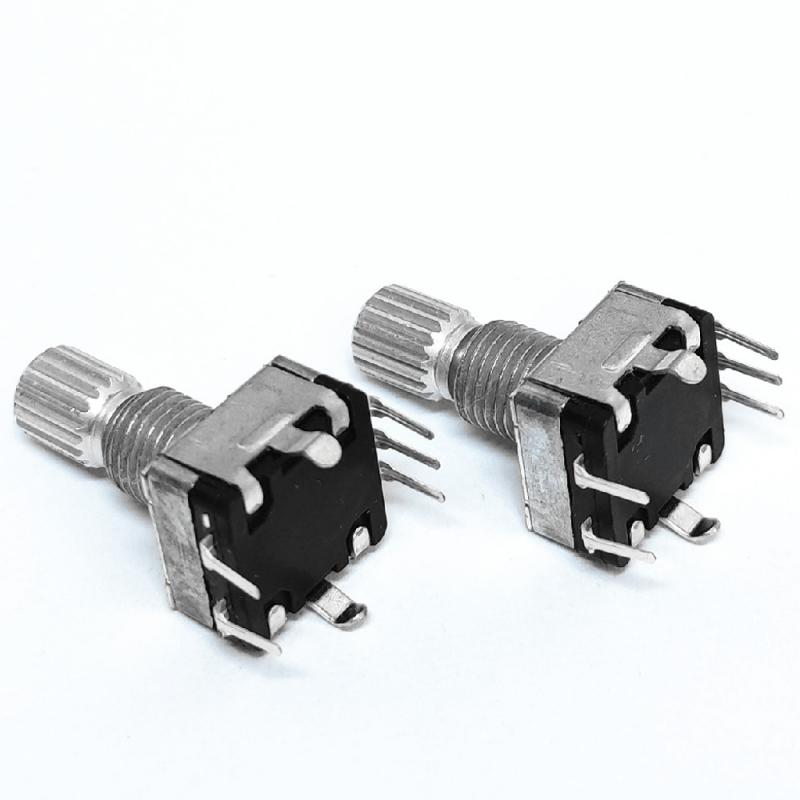

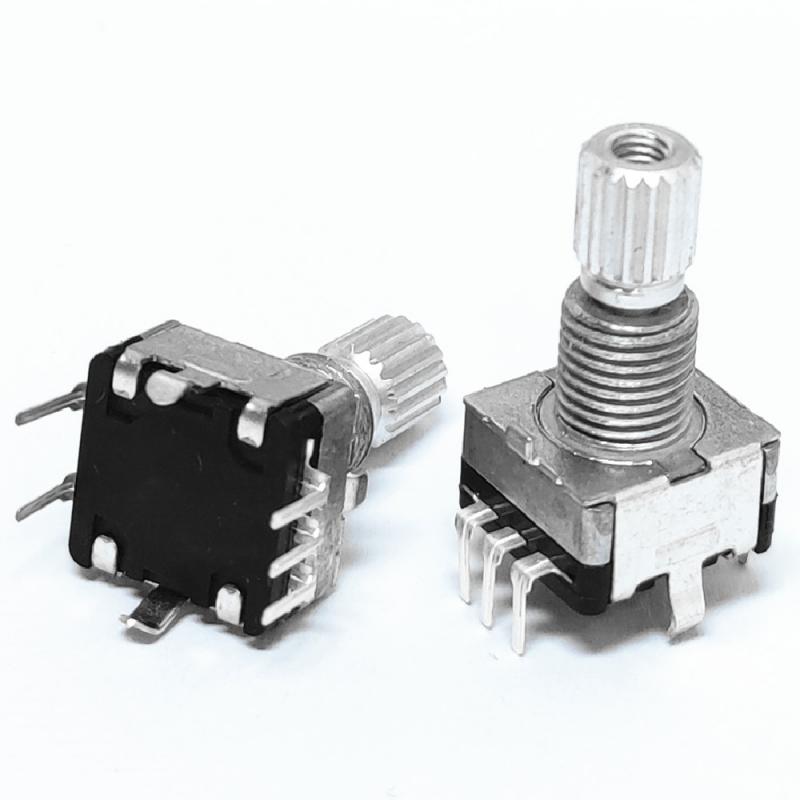

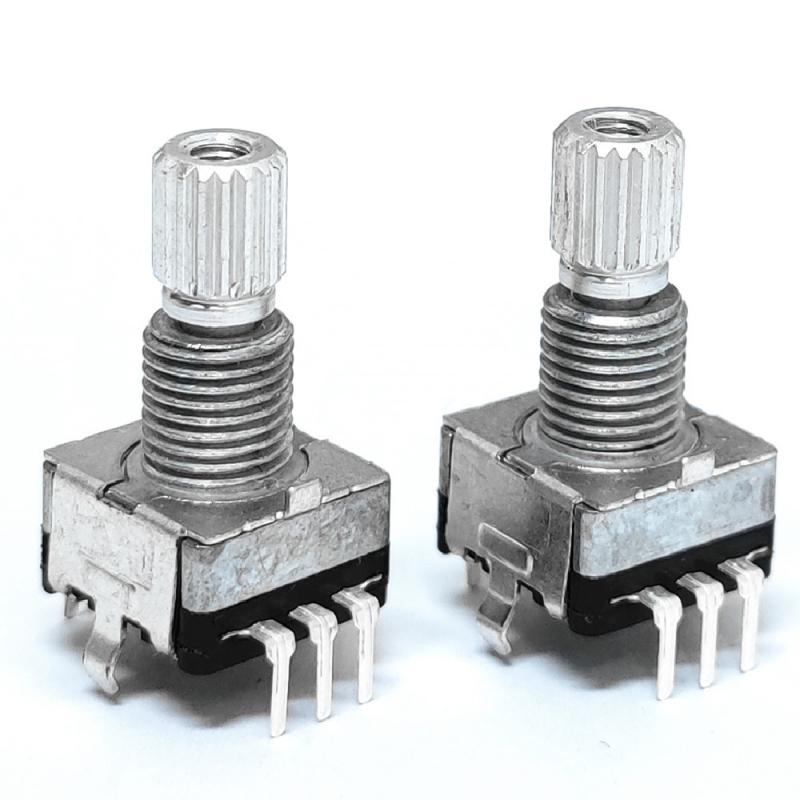

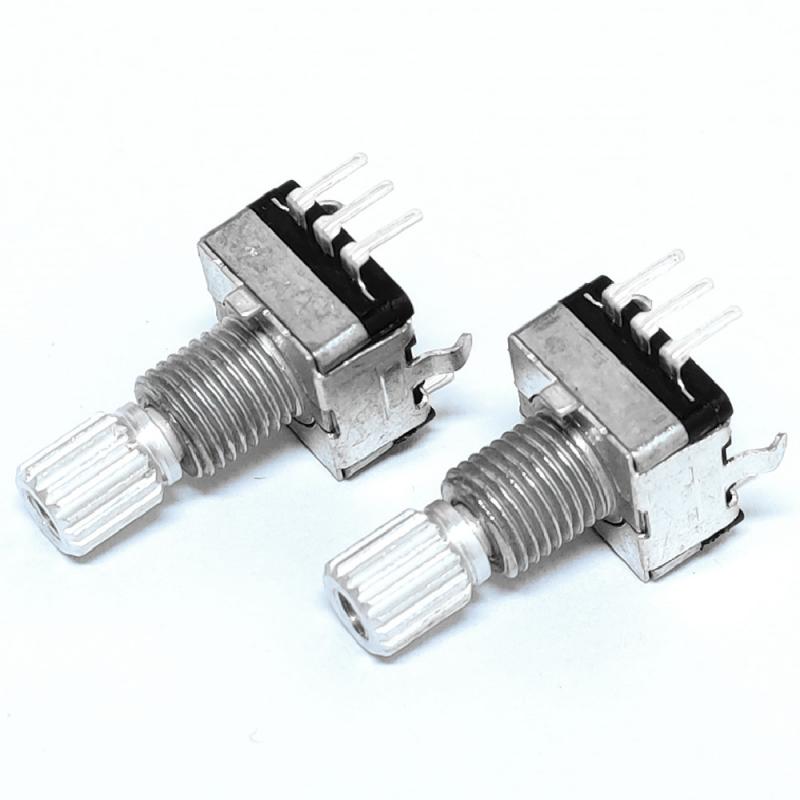

7-14 Working Days For PaymentElectronic 7mm bushing length Encoder with Switch
China Encoder supplier
Parameter
programmable encoder
Rating: DC5V; Max 10mA; Min 0.5mA
Resolution: 20 pulses/360
Contact resistance: 100 mΩ Max
Insulation resistance: 100 MΩ Min
Total ratational angle: 360°(Endless)
Number and position of detent: 20 detents(Step angle:18°±2°)
Operating force of switch: 500±200gf

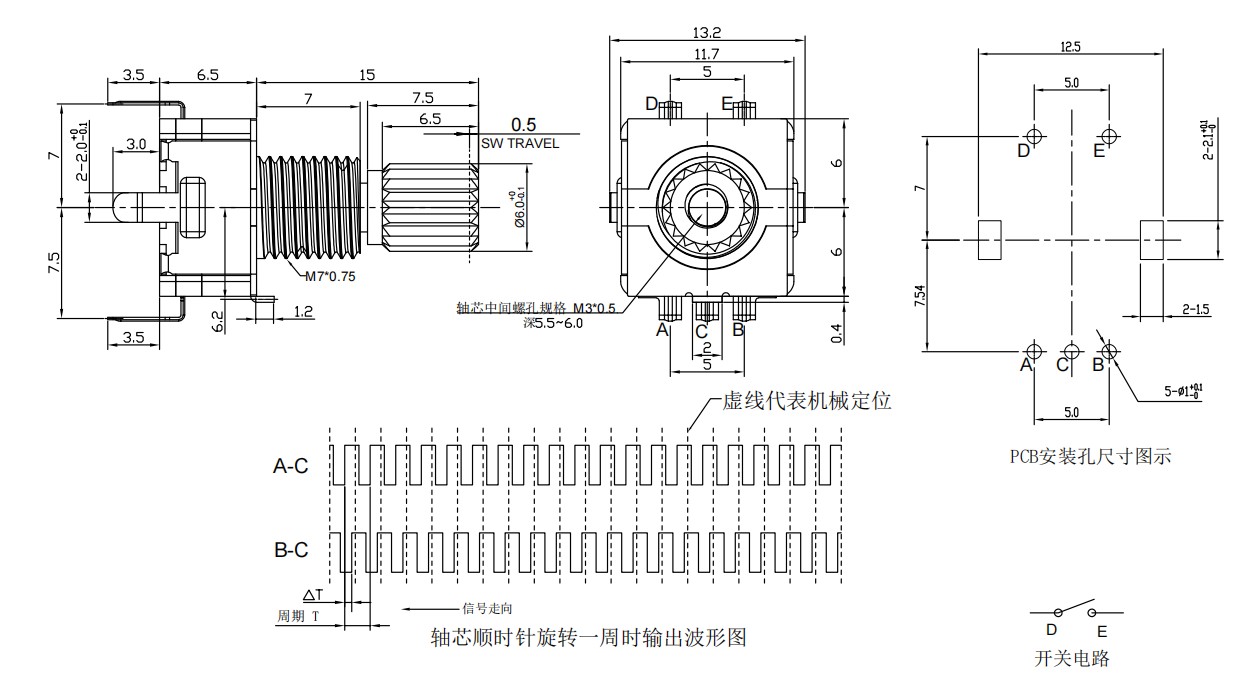

Drawing
What is the working principle of incremental encoder?
The encoder has slots with equal angles on the edge of a code disc (divided into transparent and opaque parts), and light sources and photosensitive elements are respectively installed on both sides of the slotted code disc. When the code disc rotates together with the working shaft, every time a gap is rotated, a light and dark change of light will be generated, and then through the overall amplification, an electric pulse output signal with a certain amplitude and power can be obtained, and the number of pulses is equal to the number of gaps rotated. The pulse signal is sent to the counter for counting, and the angle of the code wheel can be known from the measured digital number.
Application
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
This Series toggle switch provide a variety of switch functions, SPDT, DPDT, 3PDT, 4PDT. Also Different shapes of handles and accessories fit for different applications ,such as Telecommunications, Instrumentation, Networking and Medical equipment etc.
GY Rotary encoder is a device that can compile and analyze data signals and convert the data signals into storage, transmission, communication and other signals. To get an understanding, rotary encoder converts the rotatation of the angular displacement of the encoder and the linear displacement of the yardstick into electrical signals.
Multiple configurations available to meet many user requirements.
An encoder is classified into four types: mechanical, optical, magnetic, and electromagnetic induction types.
The main role of the encoder: regulation and control. Such as adjusting volume, frequency, temperature, balance, contrast, function switching.
According to the potentiometer package, the B50K potentiometer belongs to the sealed potentiometer; according to the classification of the potentiometer material, the B50K potentiometer belongs to the carbon film potentiometer
The incremental encoder is when we shift around a certain Angle, the encoder produces a pulse.
Rotary switches feature multi-pole, multi-position, half-inch, rotary slip, power rotary slip and miniature switch type designs with short and non-short circuit contacts for maximum design flexibility.
