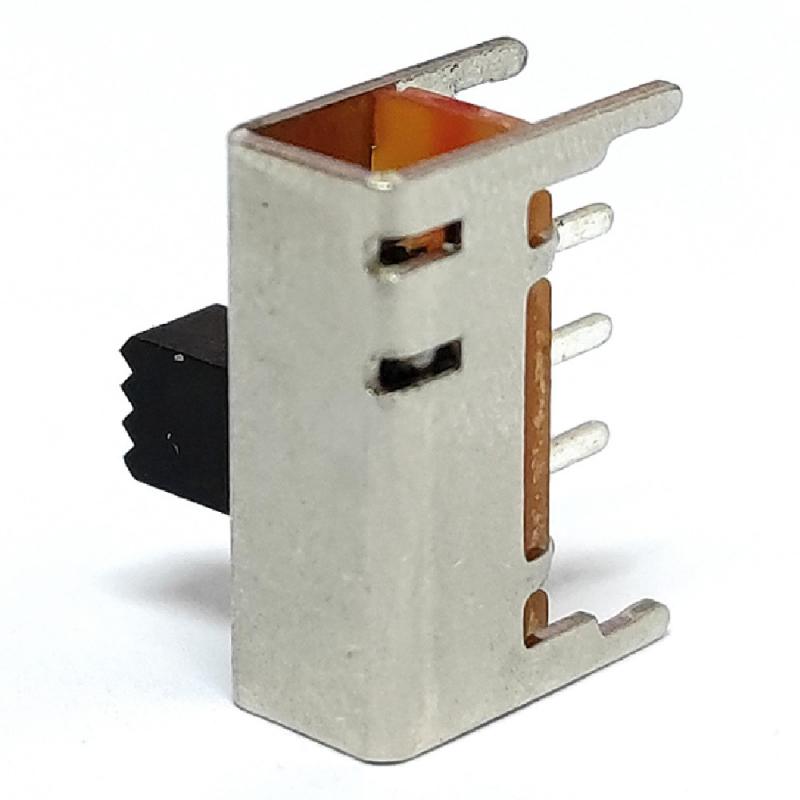

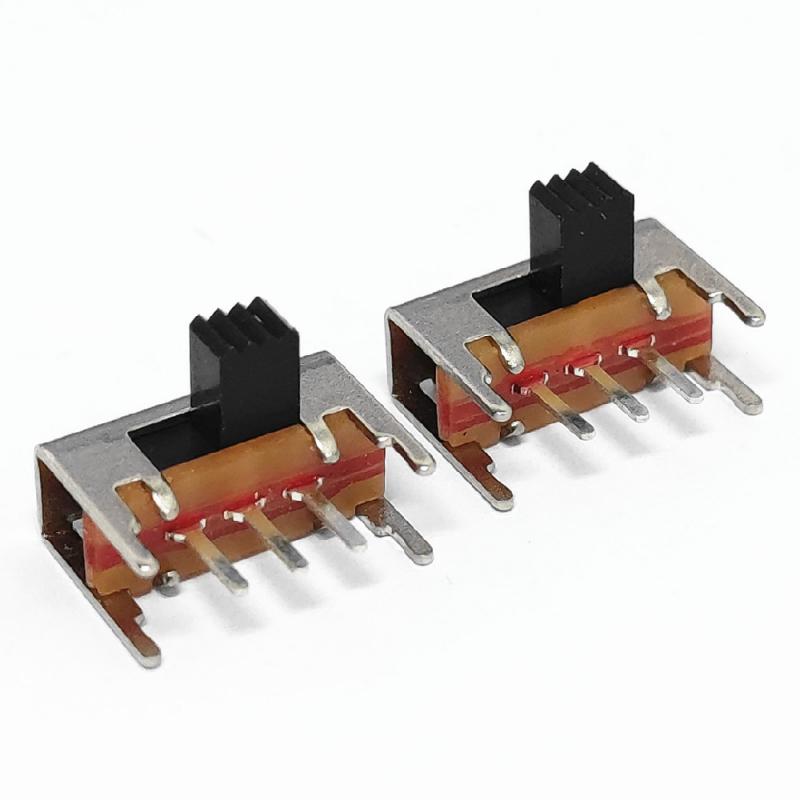

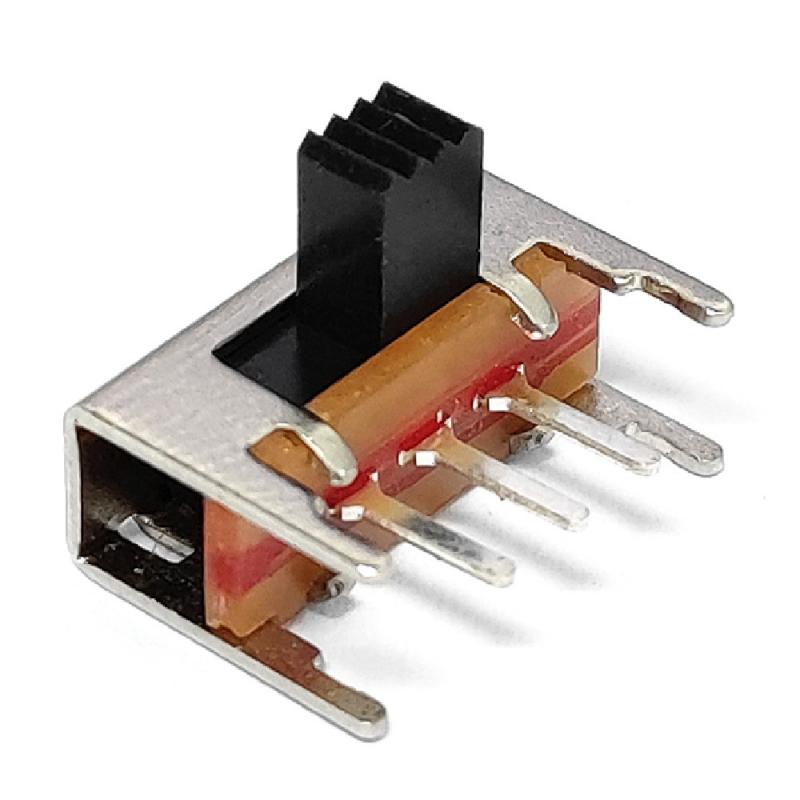

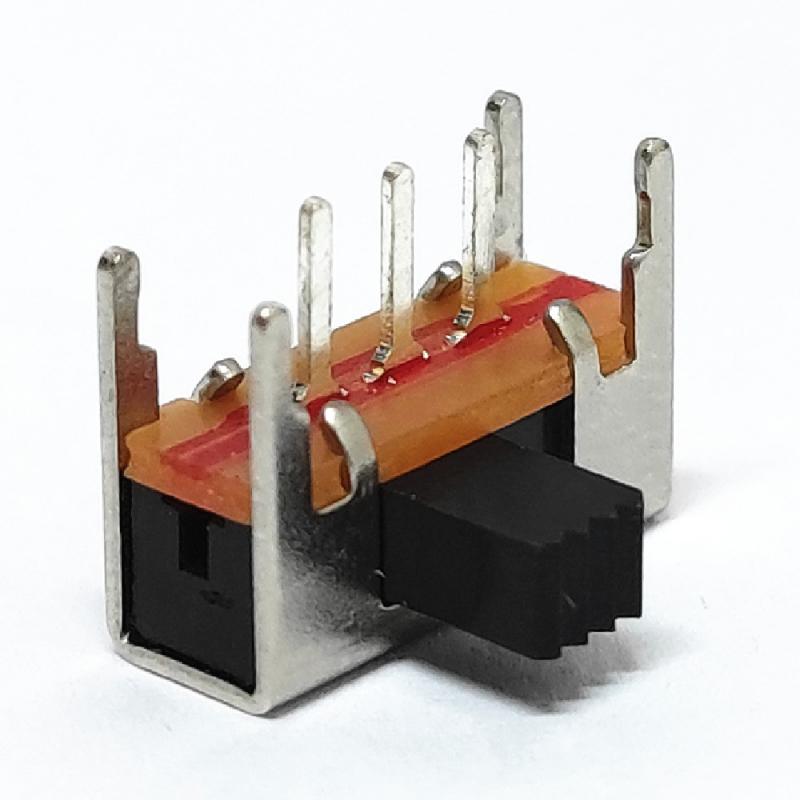

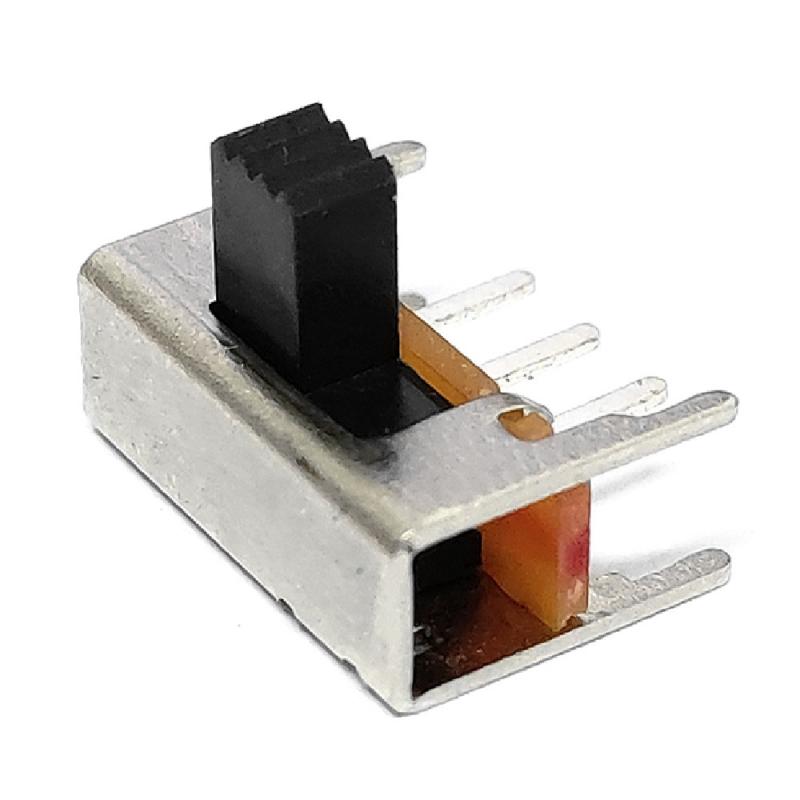

Slide switches are electromechanical switches with lever or stick actuators. Slide switches come in a wide variety of sizes and configurations and are versatile. It is widely used because of the convenience of control, and usually provides 1-3 gears to make or break the circuit.
Brand:
GangyuanItem NO.:
SK12F16G5Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and SilverShipping Port:
WenZhou/ShenzhenLead Time：
7-14 Working Days For PaymentDC50V 0.5A Non-Shorting electrical slide switch
China wholesale slide switch factory
Parameter
on off spdt slide switch
CONTACT RESISTANCE: 30mΩ MAX
INSULATION RESISTANCE: 100MΩ MIN
OPERATING FORCE: 200 ± 100 gf
LIFE TEST: 10000 cycles
PRACTICAL TEMPERATURE RANG: -16 °C ~ +60 °C
WITHIN: 1.5±0.1mm
OVER: 1.5±0.2mm

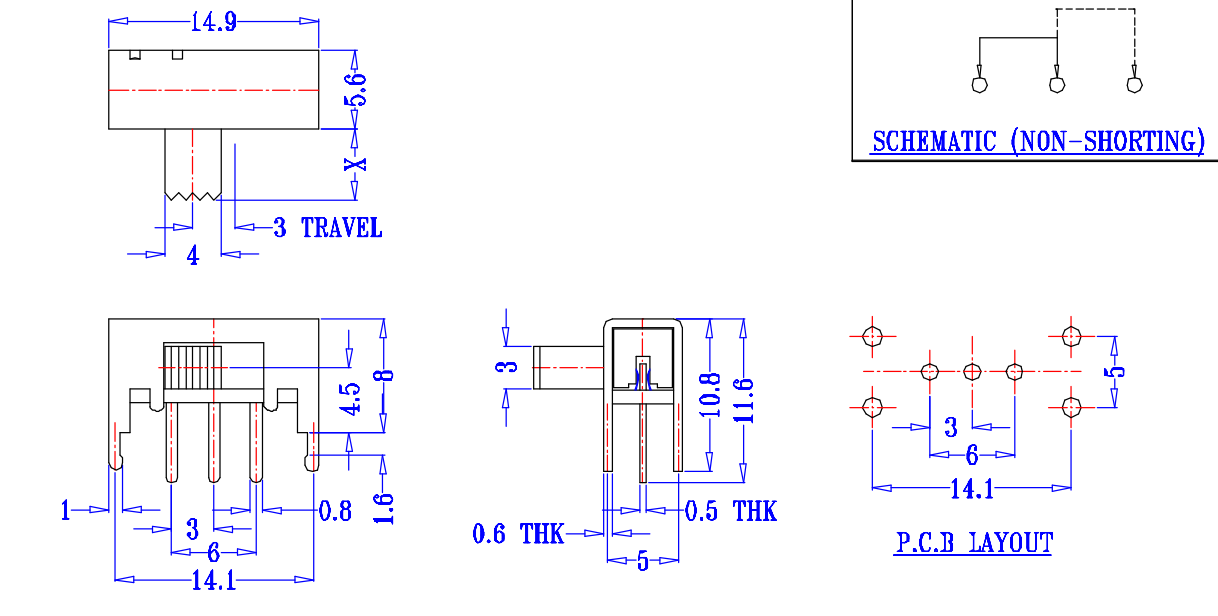

Drawing
How do you connect a slide switch?
Slide switches are commonly used in all kinds of instruments/meters equipment, electronic toys and other fields related. How it works: The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected; push it to the right, the two pins on the right connect, thus switching circuits.
Terminal type
Slide switches are available in a variety of terminal types including feed-through, lead wire, solder terminals, screw terminals, quick connect or blade terminals, surface mount technology and panel mount switches.
Actuator type
Depending on the actuator type, the handle of the switch can be raised or flush. The choice of flush or raised switches depends on the intended application of the switch.
Function
Slide switch features include indicator lights, illuminated switches, wipe contacts and time delays.
