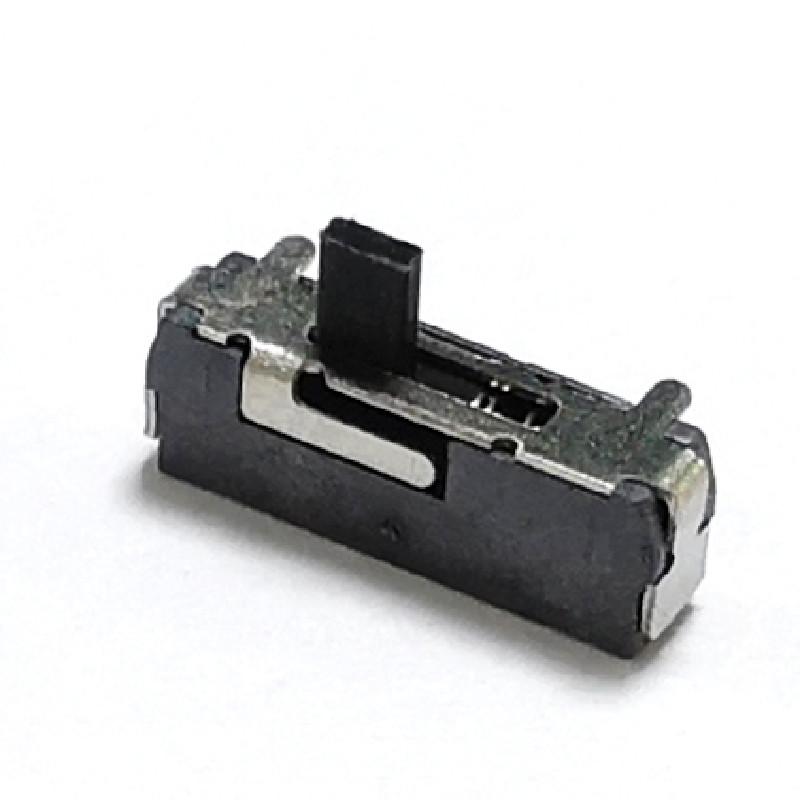

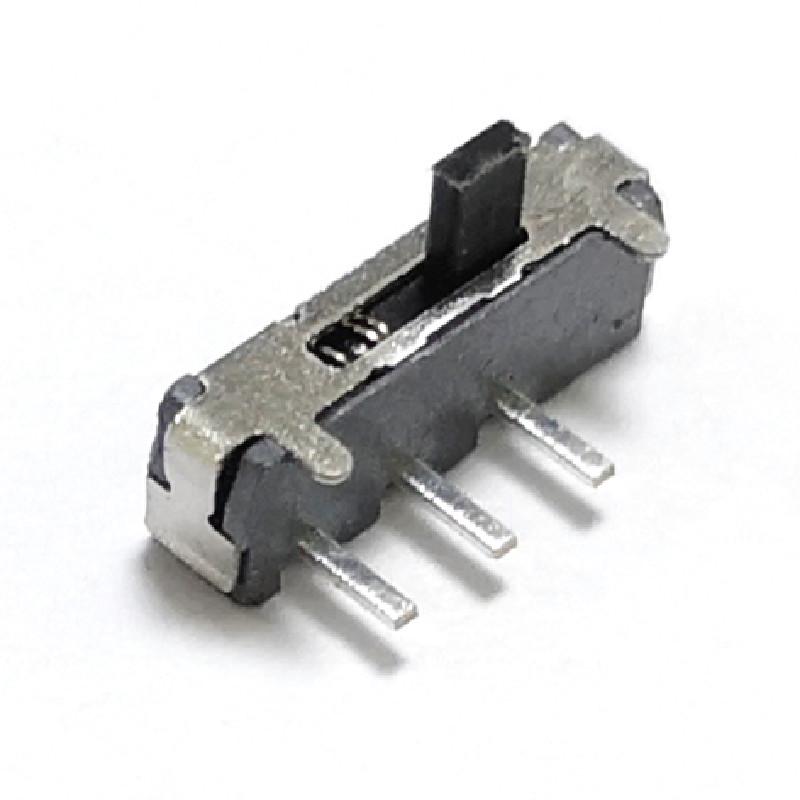

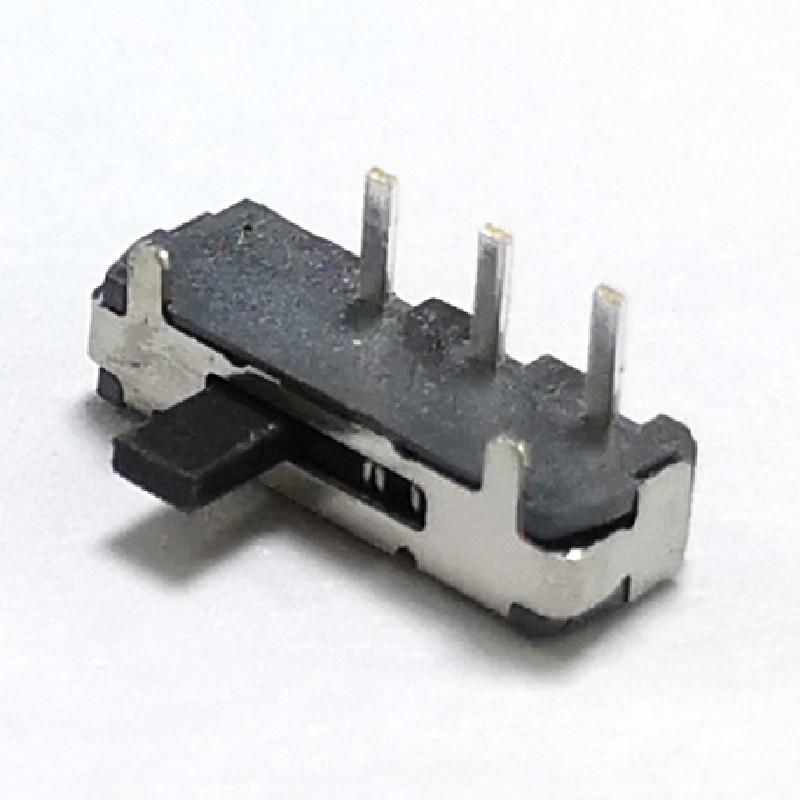

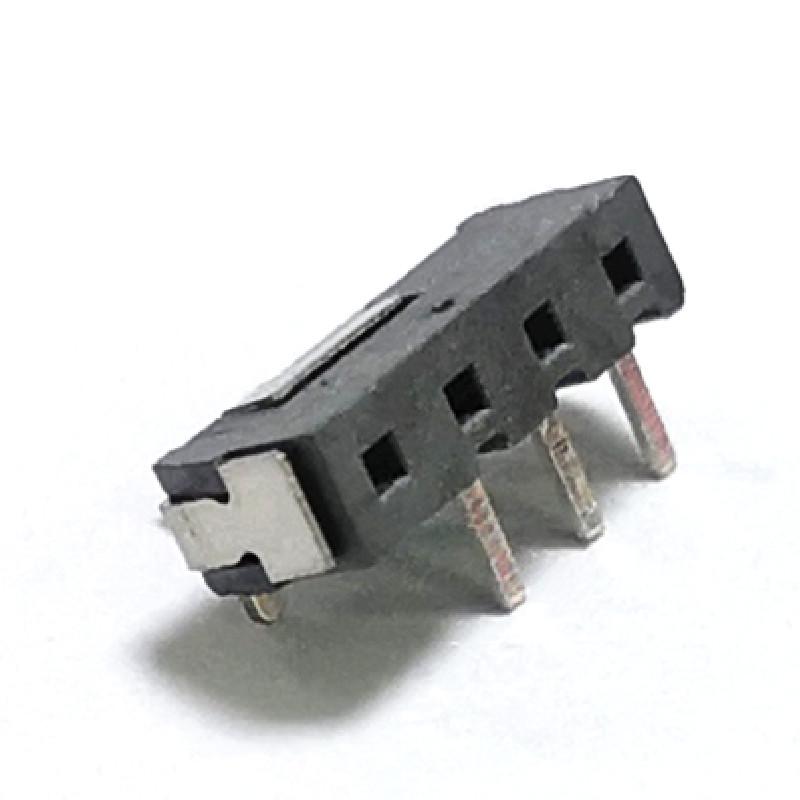

Mini 2 position slide switch

There are different handle height for customer requirement.

Brand:
Gangyuan
Item NO.:
GY-SK-17(Left)
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Outline (mm)
8.80mm x 2.00mm
Mounting Type
Right Angle
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

50mA DC12V SPDT ON-OFF slide toggle switch

Side angle small slide switch

Parameter

Single pole slide switch manufacturers

Product: surface mount slide switch

Mechanical Life: 10,000 Cycles

Insulation resistance: 100MΩ max 100VDC

Operating force: 180±50gf

Operating temperature: -10℃~66℃

Material: RoHS COMPLIANT

Life: 10000 cycles

Drawing

Advantage

Gangyuan is available in subminiature, micro, micro, standard, industrial and power versions with slide switches compatible with printed circuit board, surface mount and panel mount applications.
Gangyuan offers SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions and offers slide switches with positive positioning, sealed and shorting or non-shorting contact options.
Gangyuan's series of slide switches provide engineers with more design flexibility and choice in size, mounting, actuation type, rating and packaging.
