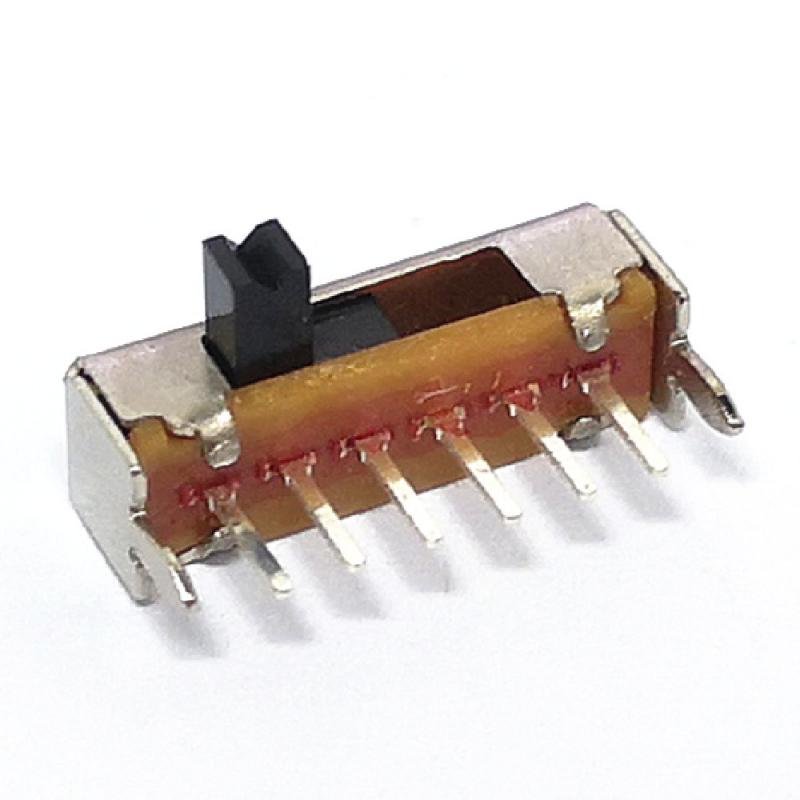

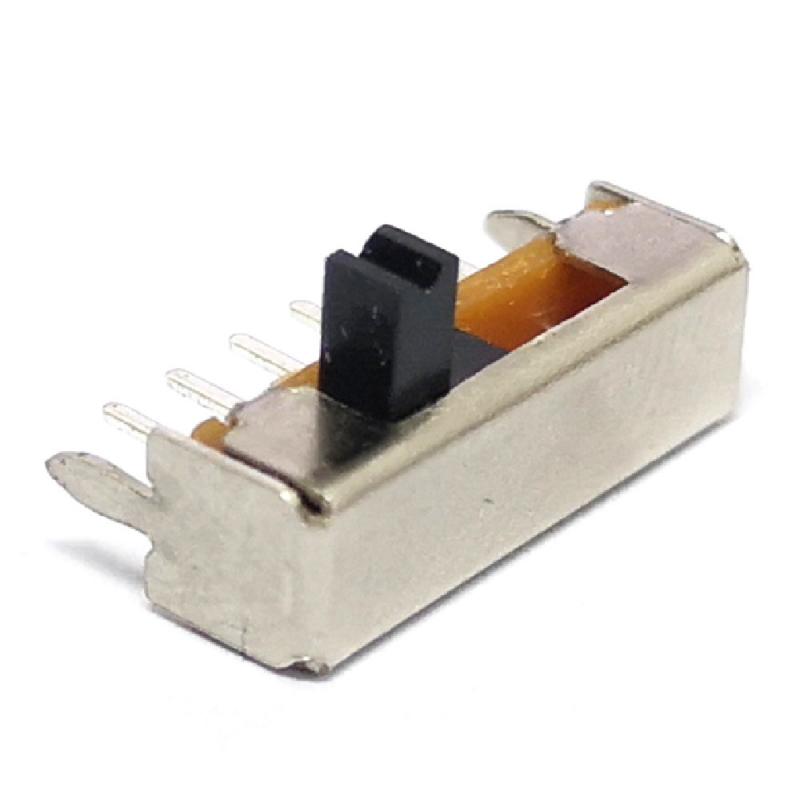

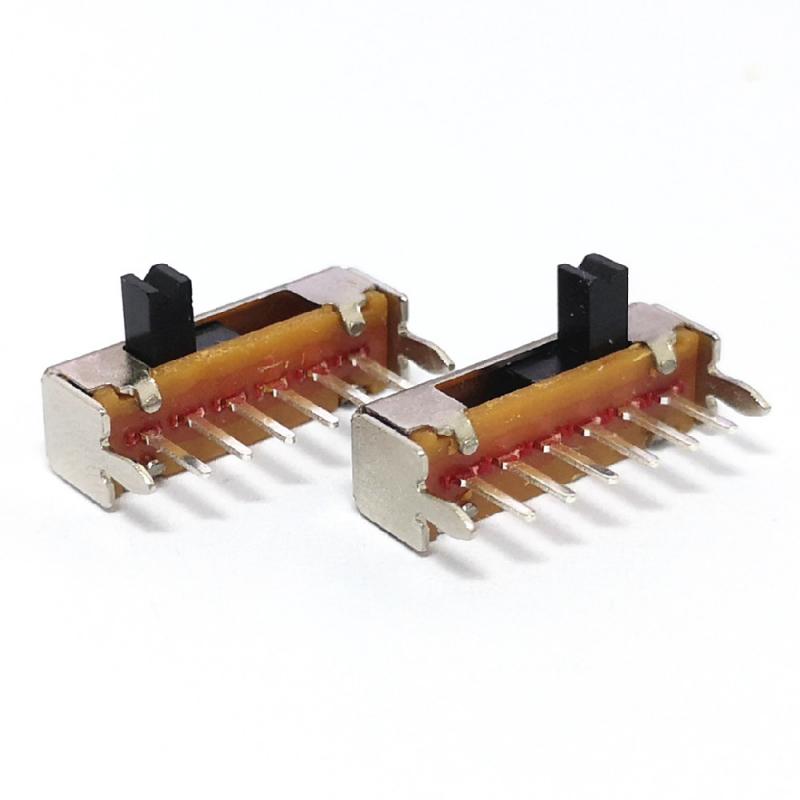

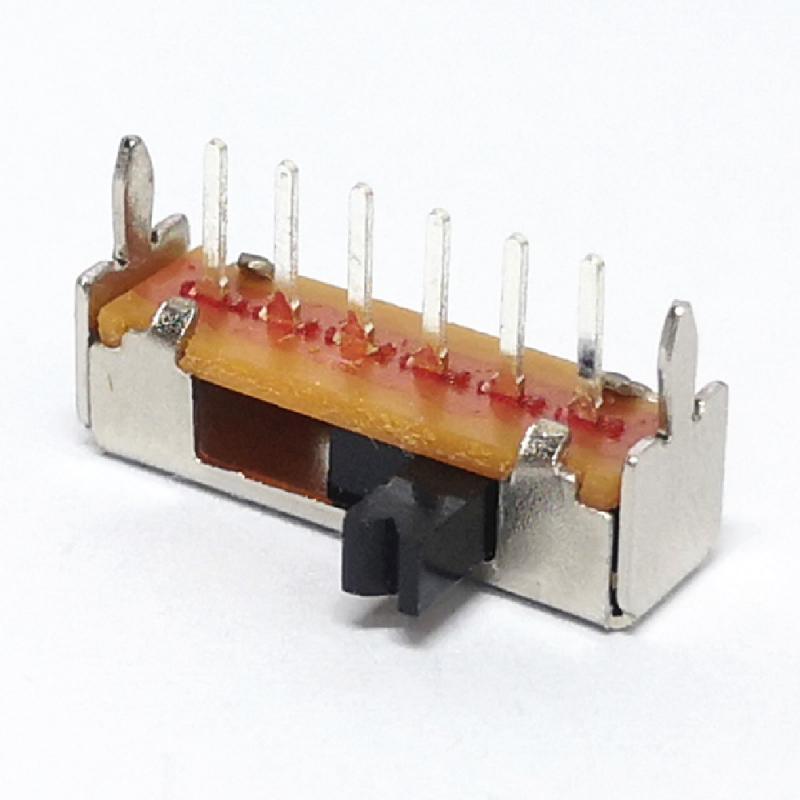

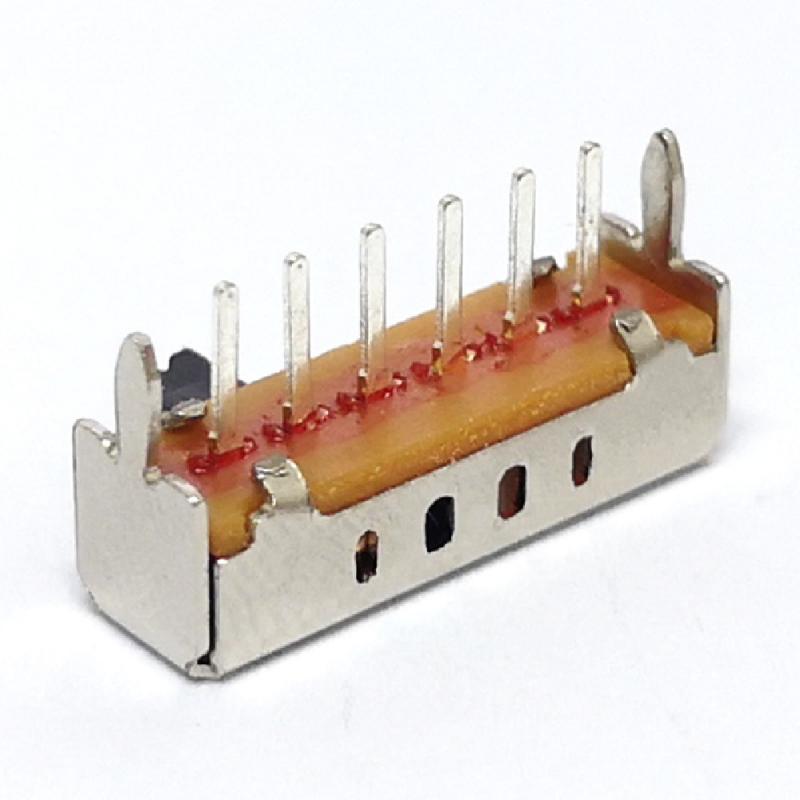

1P4T right angle slide switch

Various knob length hole slide switch

Brand:
Gangyuan
Item NO.:
SK14D01
Order(MOQ):
1000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Product Detail

miniature 6 pin 4 position horizontal slide switch

50 VDC 0.5A SP4T type

Specification

Mechanical Life: 8000 cycles

Operating force: 300gf±100gf

Contact resistance: 30mΩ Max

Insulation resistance: 100MΩ Min

Handle height: 3mm

Practical temperature rance: -16℃-+60℃

Knob height: 3mm ( Other height can choose )

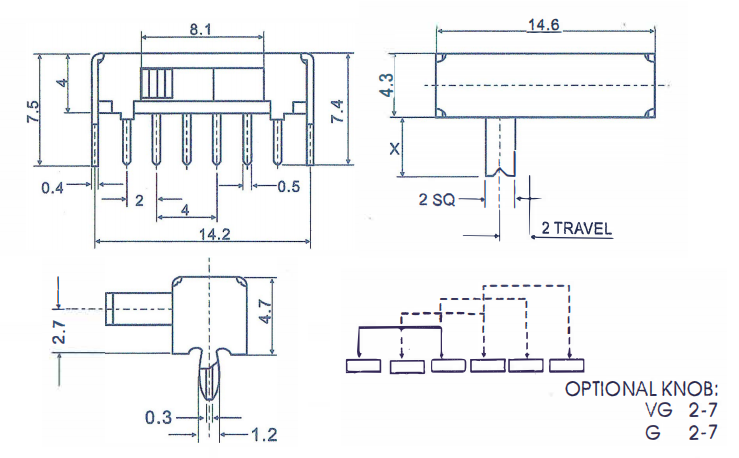

Drawing

How do you connect a slide switch ?

Slide switches are commonly used in all kinds of instruments/meters equipment, electronic toys and other fields related.

How it works: The middle pin is fixed. When the handle is pushed to the left, the left two pins are connected; push it to the right,

the two pins on the right connect, thus switching circuits.

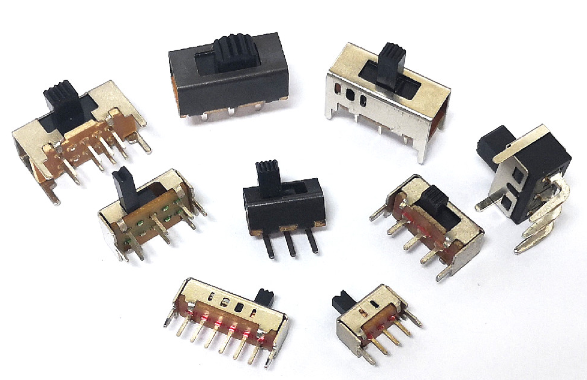

More choose

single pole slide switch suppliers

Storage method

1. Ensure that the product without package breaking or wetting before use.
2. Unopened status: Use up the product as soon as possible before 6 months.

(calculated from shipment date).Over 6 months, please make sure below ;

before use it: terminal without oxidation or blackening, plastic parts without

moisture absorption or bubble, ensure solderability.

Opened status: use up within 1 month;

3. Storage precautions: Please avoid the following environment: with high humidity,

high temperature , corrosive gases and direct sunlight.

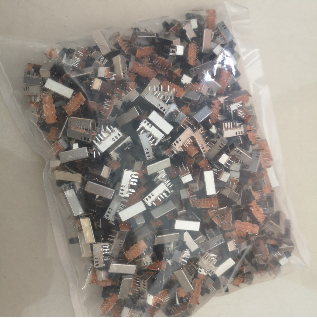

Packing

1000pcs/bag
