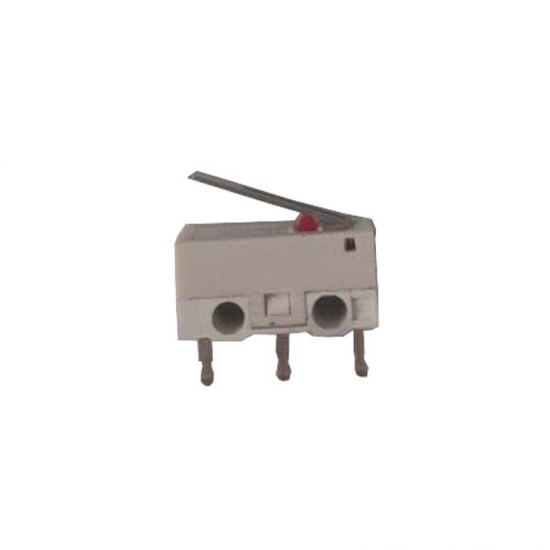

Gangyuan G10 series high sensitive mini mouse micro switch 12V
Brand:
GangyuanItem NO.:
G10 seriesOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4Xhigh sensitive mini mouse micro switch 12V
Product Description:
Model Name:
G10 super mini Micro Switch
Model No.:
G10 series
Operating force:

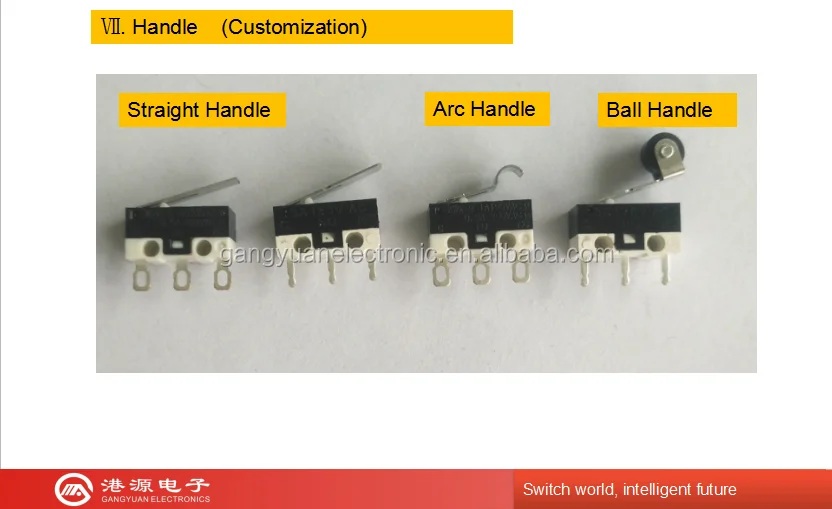

customization, without handle 60-150gf.
Ratings:

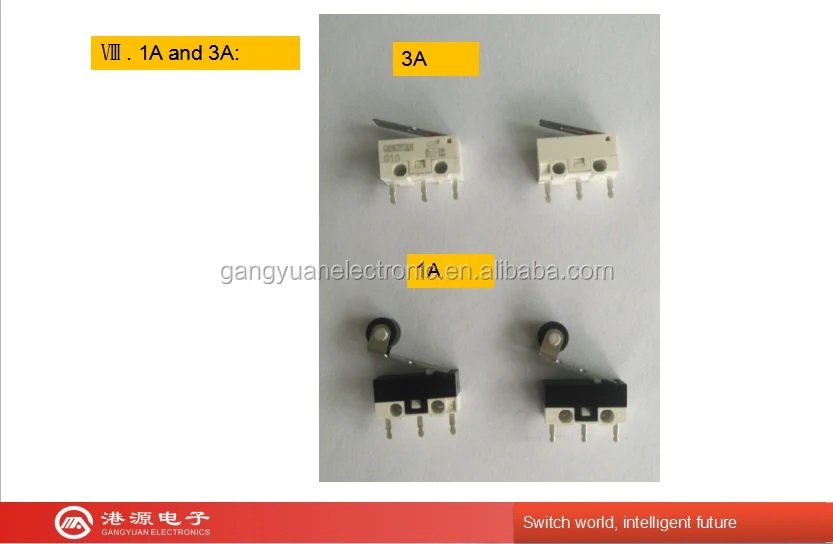

3A 125VAC 1A 250VAC 2A 30VDC 0.1A 30VDC.
Contact resistance:
CR≤100mΩ.
Insulation resistance:
IR≥100MΩ.
Voltage resistance:
Between the non-connected terminals
AC600V 50/60Hz 1min.
Between the terminals and mental frame
AC1500V 50/60Hz 1min.
Mechanical Life:
120 cycles/min, beyond 1,000,000 cycles
Electrical Life:
30 cycles/min, beyond 10,000 cycles.
Protection Level:
IP40.
Operating Temperature:
Below 85%RH (+5℃--+35℃).
Operating humidity:
Below 85%RH (+5℃--+35℃).
Net weight of one piece:
About 0.6g without handle.
Features:
Type: Super mini, strong functions, durable using life
Certifications:
UL

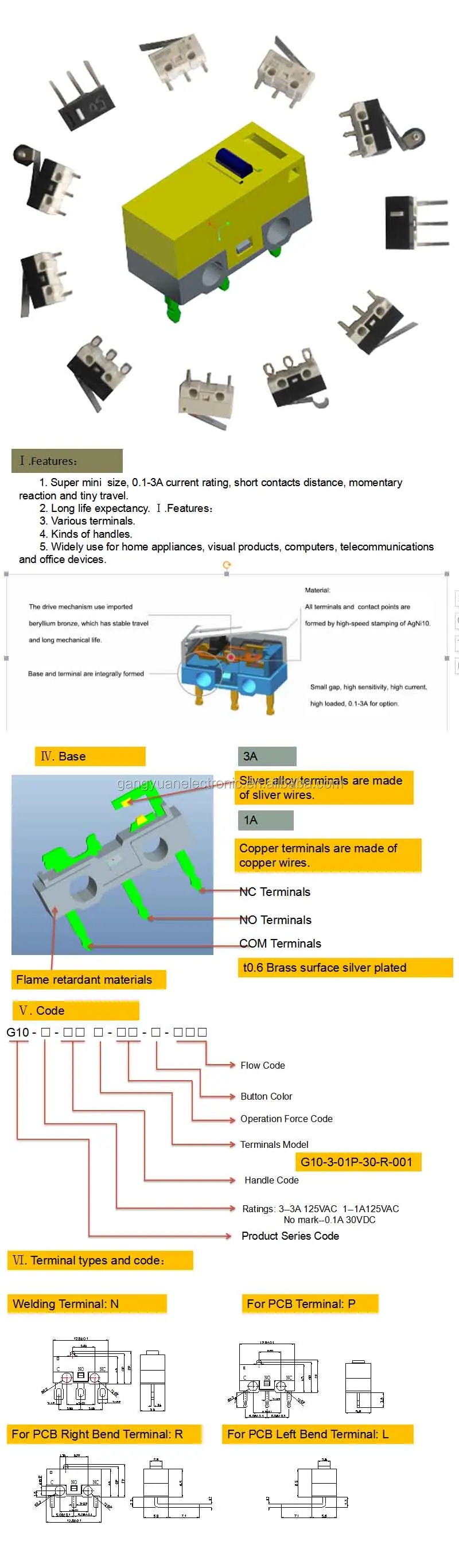

Dimension and series:
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
