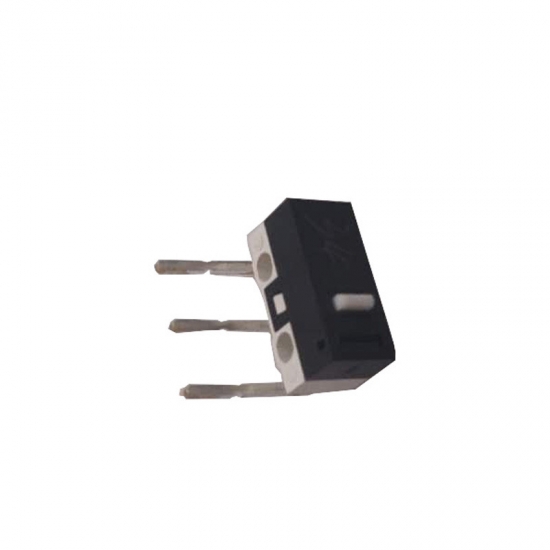

Whole Sale circuit board micro switch 1a 125vac zippy micro switch
Brand:
GangyuanItem NO.:
G10 seriesOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4XWhole Sale circuit board micro switch 1a 125vac zippy micro switch
More such requirements welcome to contact us, we will offer you best quality with competitive prices back!
Product Description:
|
Model Name: |
G10 super mini Micro Switch |
|
Model No.: |
G10 series |
|
Operating force: |
customization, without handle 60-150gf. |
|
Ratings: |
3A 125VAC 1A 250VAC 2A 30VDC 0.1A 30VDC. |
|
Contact resistance: |
CR≤100mΩ. |
|
Insulation resistance: |
IR≥100MΩ. |
|
Voltage resistance: |
Between the non-connected terminals AC600V 50/60Hz 1min. Between the terminals and mental frame AC1500V 50/60Hz 1min. |
|
Mechanical Life: |
120 cycles/min, beyond 1,000,000 cycles |
|
Electrical Life: |
30 cycles/min, beyond 10,000 cycles. |
|
Protection Level: |
IP40. |
|
Operating Temperature: |
Below 85%RH (+5℃--+35℃). |
|
Operating humidity: |
Below 85%RH (+5℃--+35℃). |
|
Net weight of one piece: |
About 0.6g without handle. |
|
Features: |
Type: Super mini, strong functions, durable using life |
|
Certifications: |
UL |
Dimension and series:
