Gangyuan Hot sale Side horizontal Tact Switch KAN0632

KAN0632: DC12v 50mA, 6*6mm mini micro tact switch.

Brand:
Gangyuan
Item NO.:
KAN0632
Order(MOQ):
1000
Payment:
T/T before shipment
Product Origin:
ZheJiang China
Color:
Black
Shipping Port:
Ningbo, Shenzhen
Lead Time：
7-10 working days depends on actual quan

Product Detail

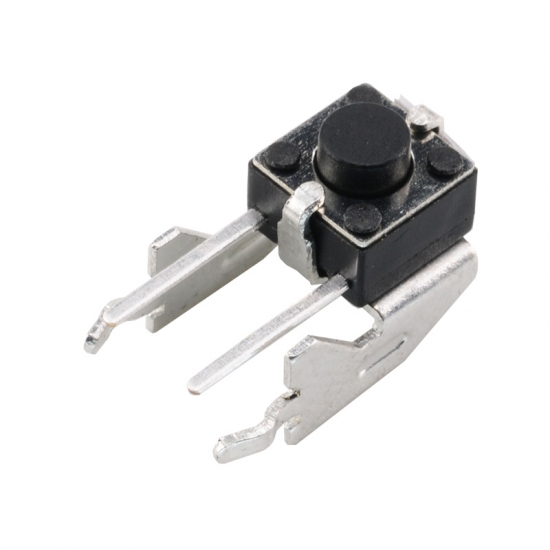

Gangyuan 2 pin Hot sale Side horizontal Tact Switch KAN0632

Temperature	-20℃to+70℃
Rating	50mA.12V DC
Insulation resistance	100mΩ min.100V DC
Dielectric strength	250V AC for 1 min
Contact resistance	100mΩ max
Travel	0.25±0.1mm
Height	3.15mm-15.85mm
Operating Force	100gf/160gf/260gf

Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
