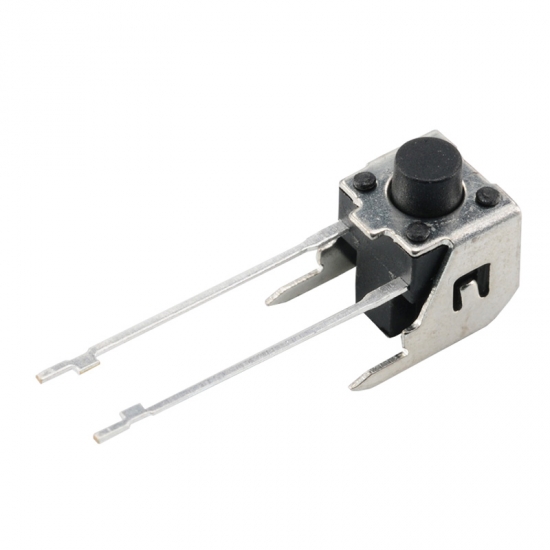

KAN0643: 6*6mm, 2 Pins, Mini horizontal tact switch.
Brand:
GangyuanItem NO.:
KAN0634Order(MOQ):
1000Payment:
T/T before shipmentProduct Origin:
ZheJiang ChinaColor:
BlackShipping Port:
Ningbo, ShenzhenLead Time：
7-10 working days depends on actual quanGangyuan 6X6 2 pin Hot sale Side horizontal Tact Switch KAN0634
Basic Information
|
Temperature |
-20℃to+70℃ |
|
Rating |
50mA.12V DC |
|
Insulation resistance |
100mΩ min.100V DC |
|
Dielectric strength |
250V AC for 1 min |
|
Contact resistance |
100mΩ max |
|
Travel |
0.25±0.1mm |
|
Height |
3.15mm-15.85mm |
|
Operating Force |
100gf/160gf/260gf |

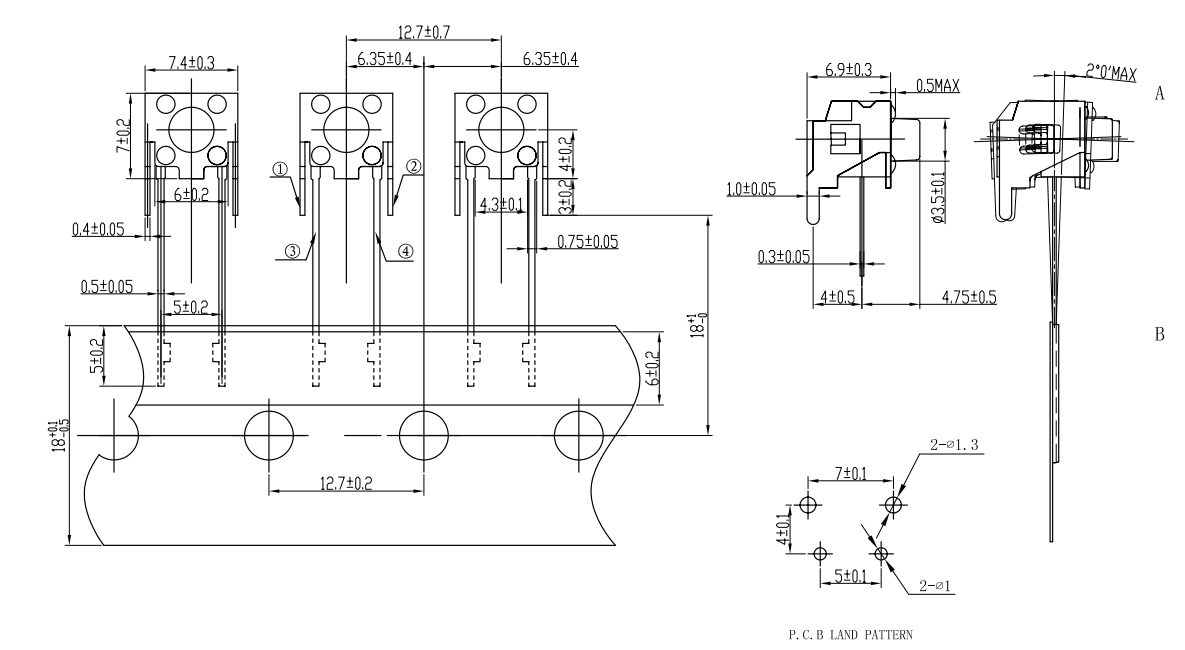

Dimension
Tact Switch Using Attention
1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for Audio and video products: Router: set-top boxes: communications products: white home appliances; black home appliances: small household appliances: security products: toys; office equipment, etc.
