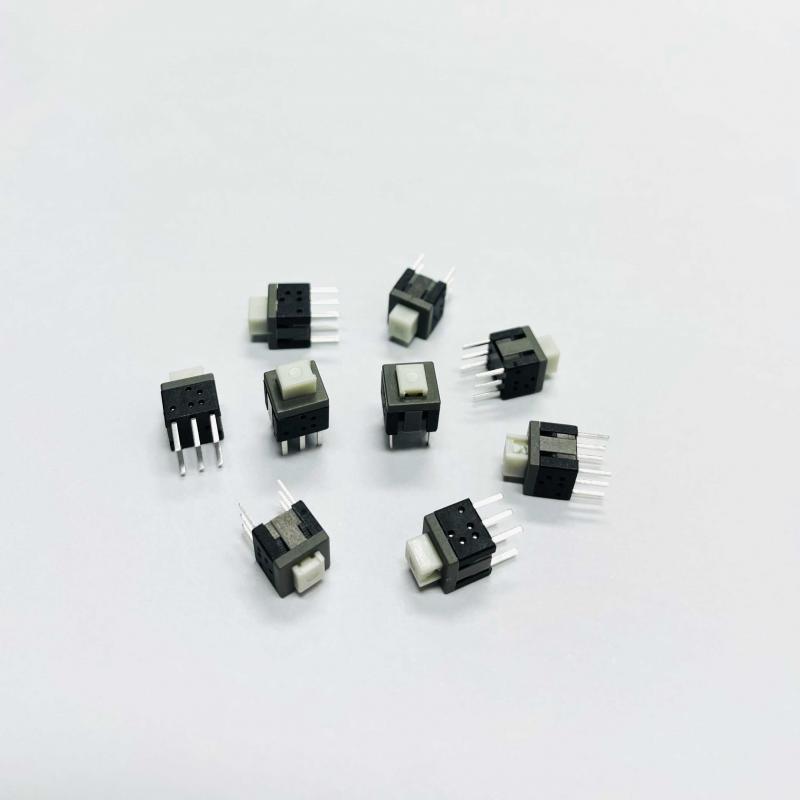

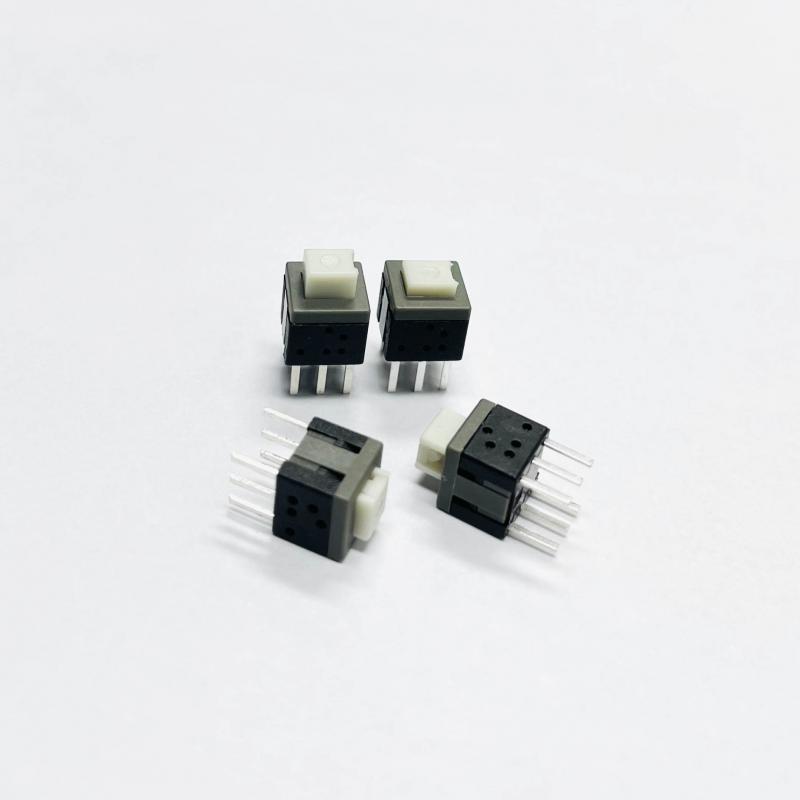

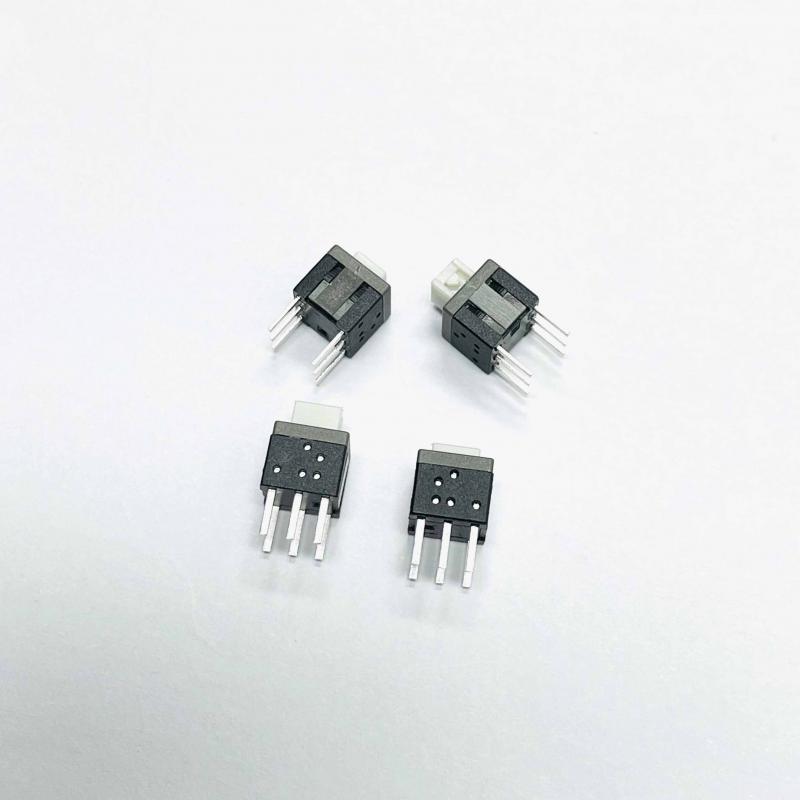

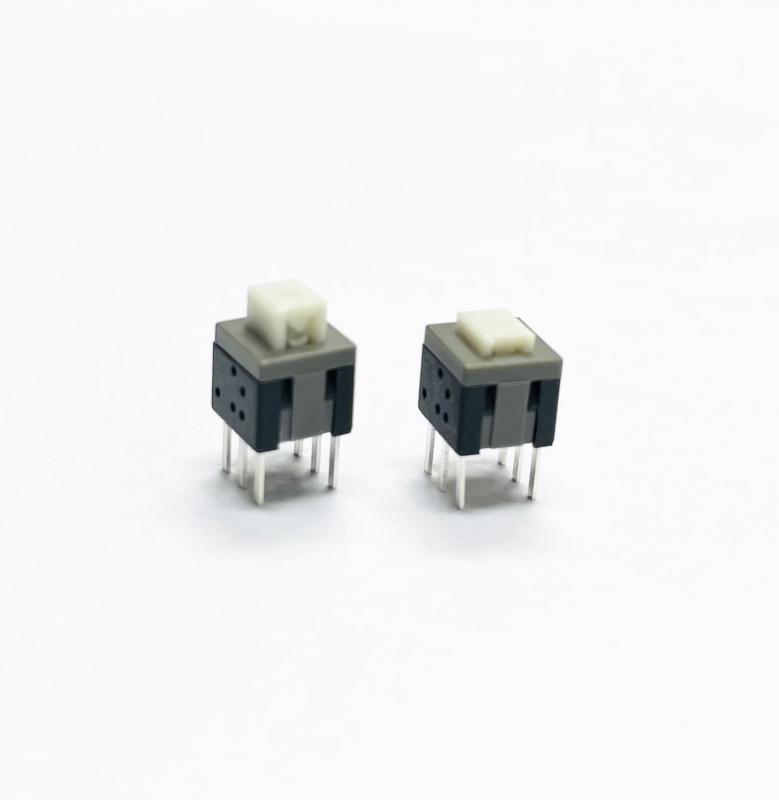

Flat push button
Lock/latching switch
PA66 materials with high temperature resistant switch
6 pins SPDT
Brand:
GangyuanItem NO.:
PB22E06371-0106Payment:
EXWOutline (mm)
5.80mm x 5.80mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
No IP RatingFlat push button lock switch pa66 high temperature resistant lacthing switch

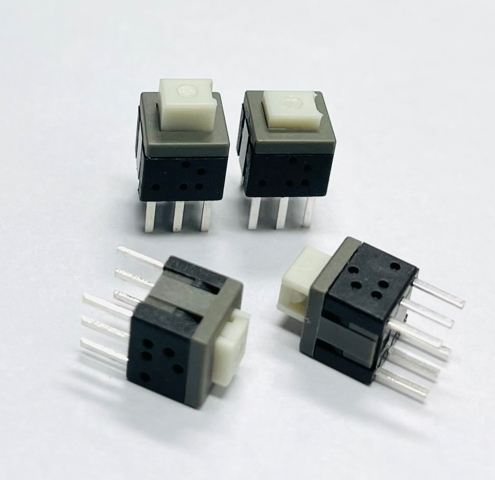

Flat push button
arduino latching switch: 5.8*5.8mm
Operating force:200±80gf
Travel: 2.2±0.2mm
Case/lid: PA66
Stem: POM
Most ratings: 30V DC, 0.1A (effective value)
Contact Resistance: 100mΩ.max
Insulation Resistance: 100MΩ.min
Insulation voltage proof: 500V AC (50Hz or 60Hz) in 1min

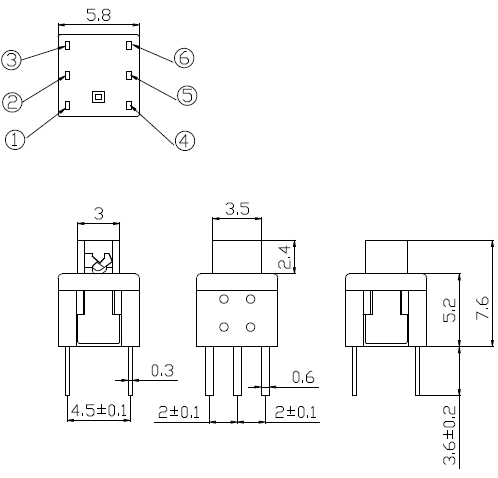

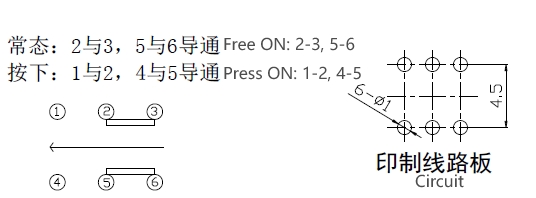

Drawing :
Application :

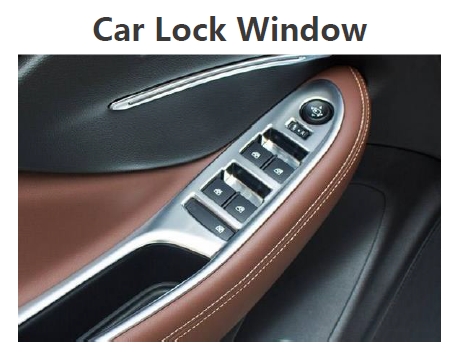

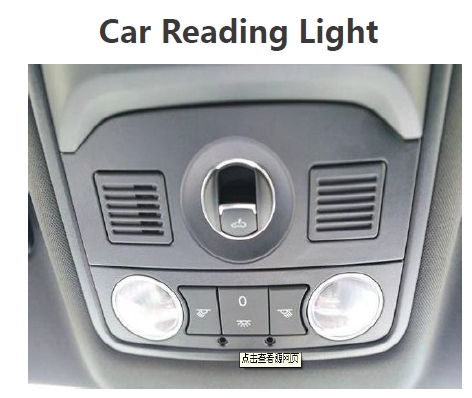

1. Autombile : Car window lock/ reading light

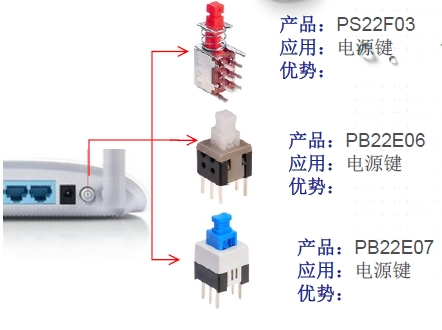

2. Route control /power switch
FAQ
Q1: Where is your factory location ?
A: Head factory in Wenzhou and sub-plant in Hubei and Shenzhen.
Neihbour in HK or Shanghai, which with convenient transport advantage
Q2: Is free samples available ?
A: Sure, free sample for your test or trails orders are welcome
Q3: Gangyuan advantage for your options.
A: 1) 30 years experience in siwtch manufacturing;
2) Strict and complete quality inspection at each process;
3) Factory supply with easy cost control; team-work at ech processm production, shipping and sales (after- sales).
Q4: Large option or advice provided, including the self-locking push button switch?
A: Yes. independent R&D ability and history applications for your reference.
Previous:
Latching self locking push button switchNext:
8.5*8.5 wholesale 6 terminal push button switchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Momentary contact, 6 pins, square white push button, DIP through hole mounting, Non locking style ,5.8x 5.8mm push button switches, etc.
Non lock switch widely used in consumer electronics,smart device, PCB and so on.
Auto lock switch, knob colors with black, grey, red, white, pink etc. Long life 100,000/1,000,000 cycles could be normally made.
8.3x8.3 6pin push button self lock switches electrical, high quality.

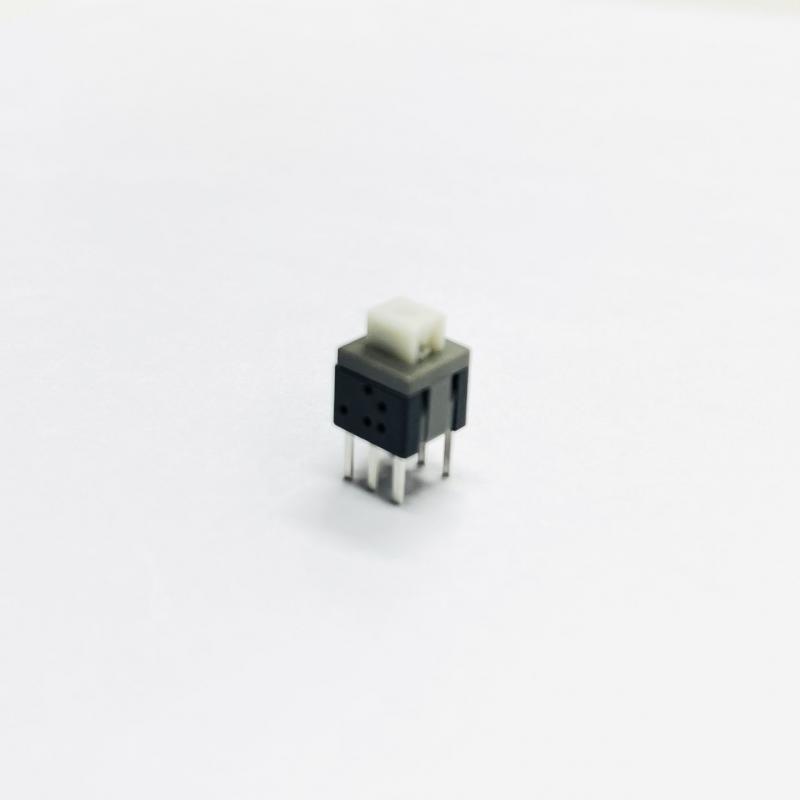

5.8*5.8mm self locking switch with 6 pins often used in PCB board.
