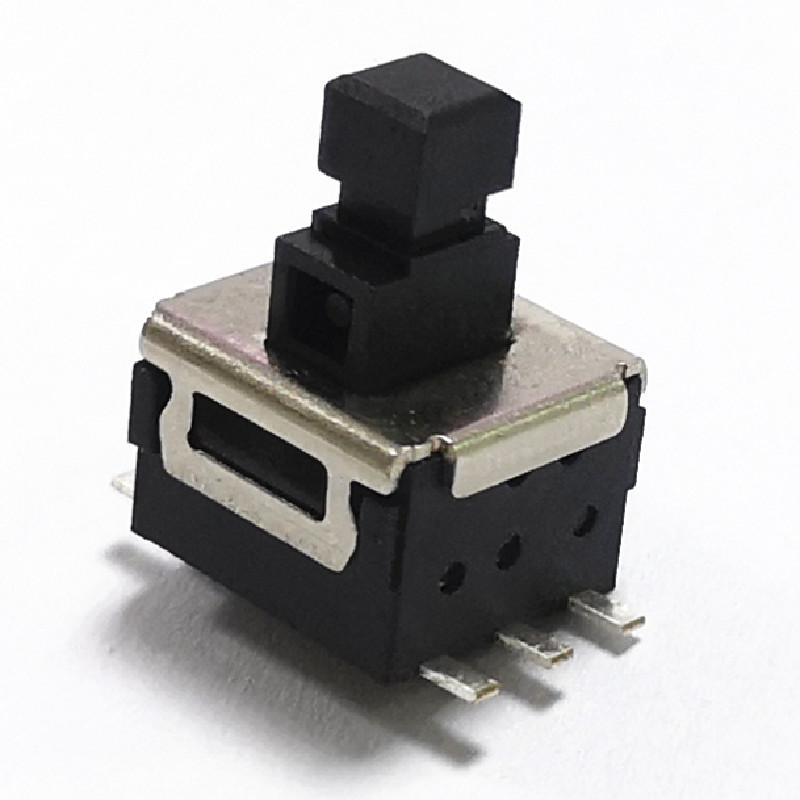

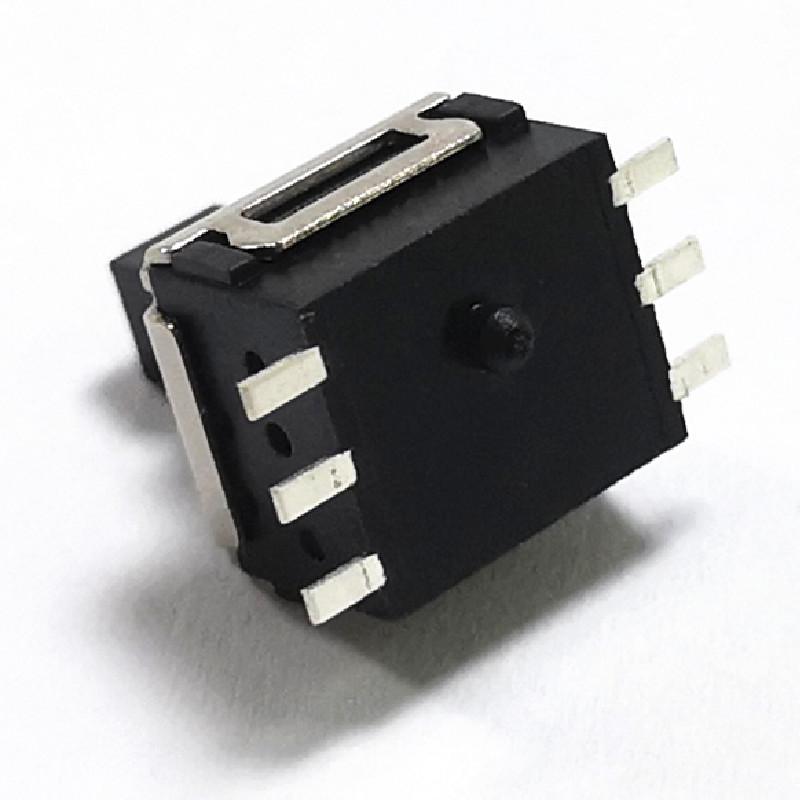

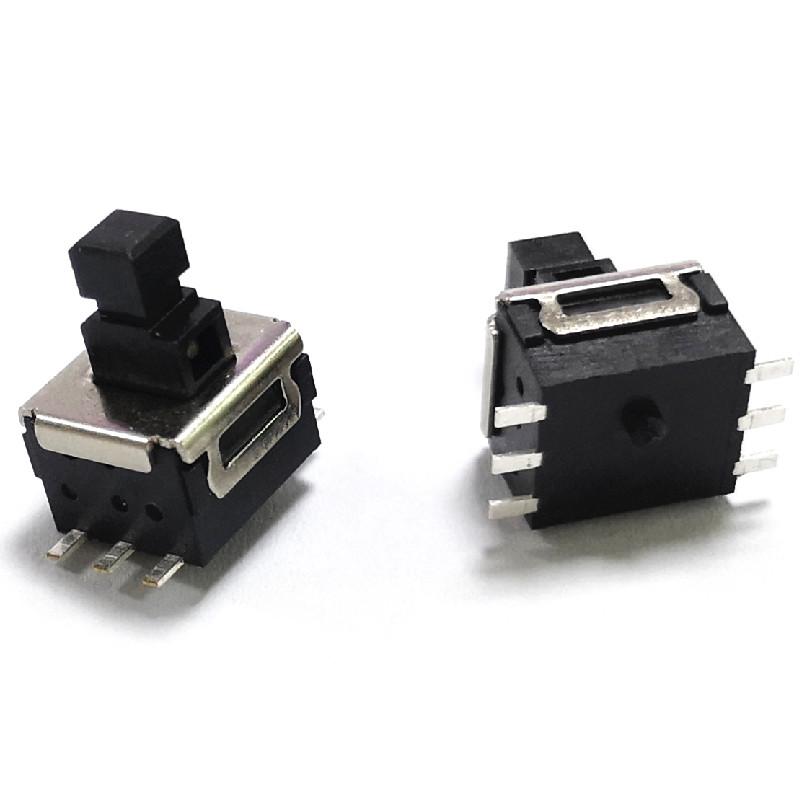

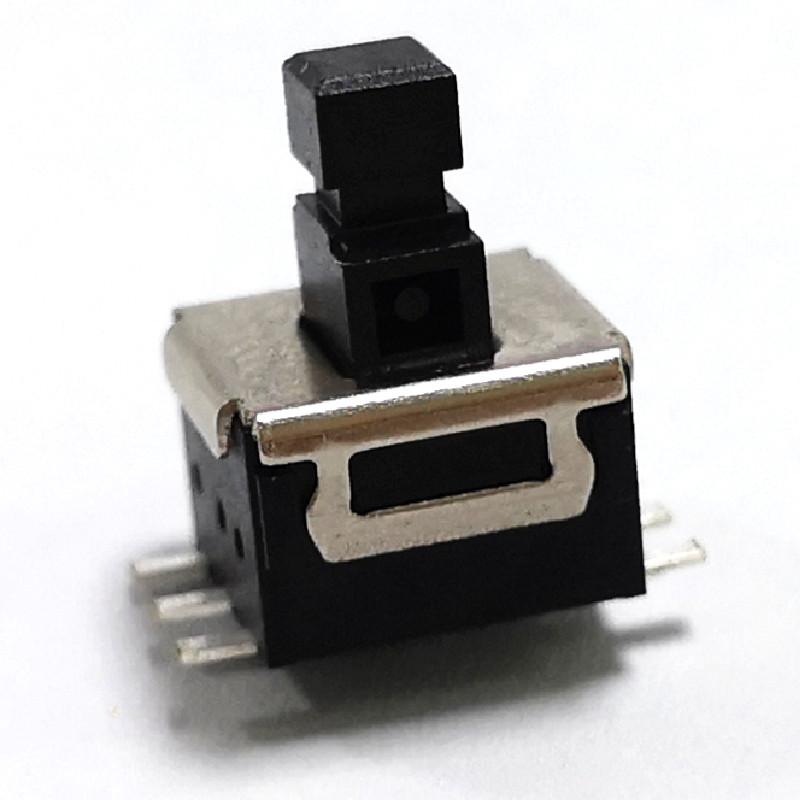

Latching self locking push button switch

0.3A DC14V 6pin Micro push button switch with lock

Product parameter

Voltage drop: 0.1V Max

Insulation Resistance: ≥100MΩ

Operating force: 3±1N

Full Travel: 2.3±0.5mm

LOCK Travel: 1.5±0.3mm

Wobble in Lever: 1.5 mm max

Operation life: 15 000 cycles

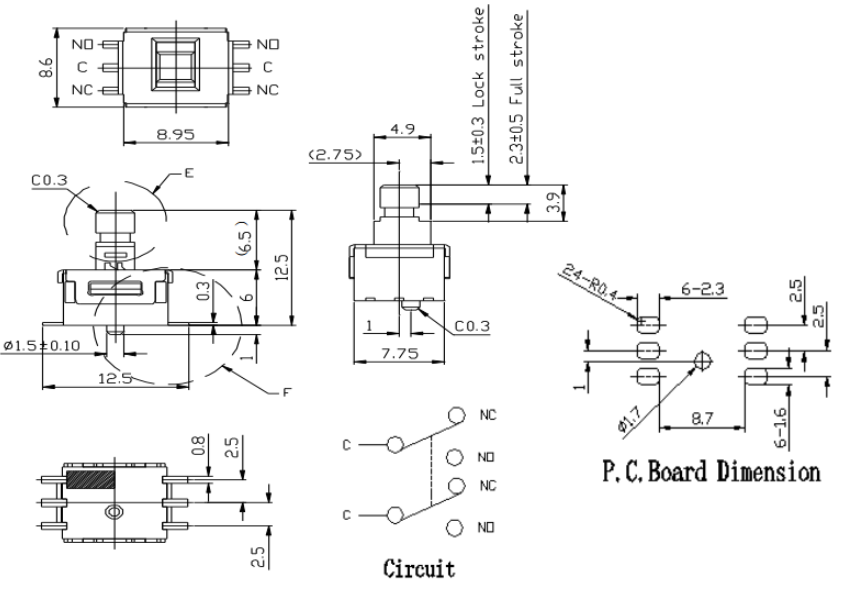

Drawing

Defination of self-locking switch

The self-locking switch generally refers to the switch with its own mechanical locking function. After pressing it, the button will not jump up completely after releasing it. It is in the locked state and needs to be pressed again to unlock it and jump up completely. It is called a self-locking switch. Early TVs and monitors that were directly powered off were such switches.
