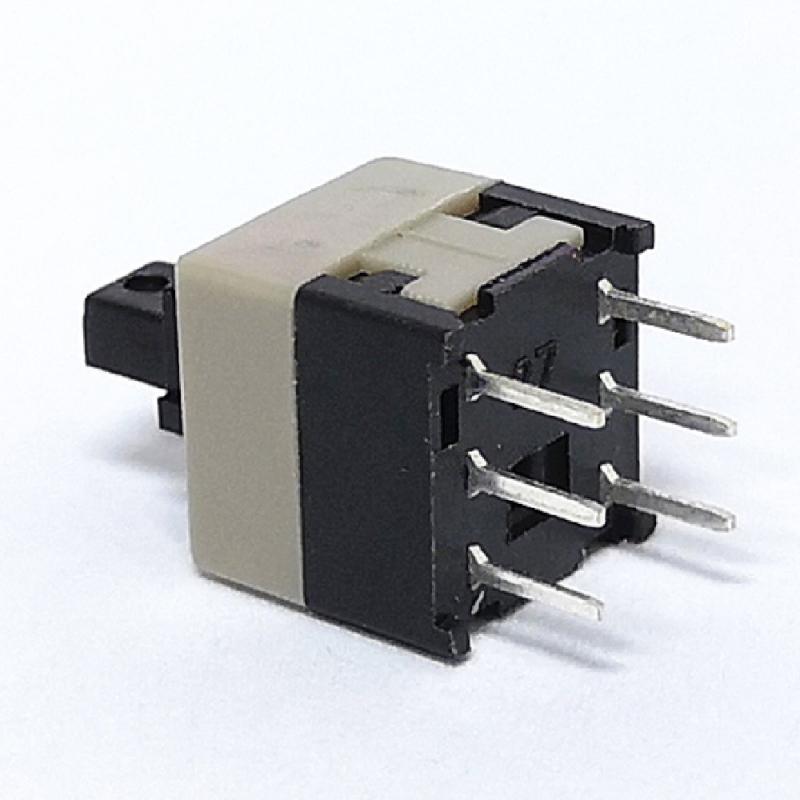

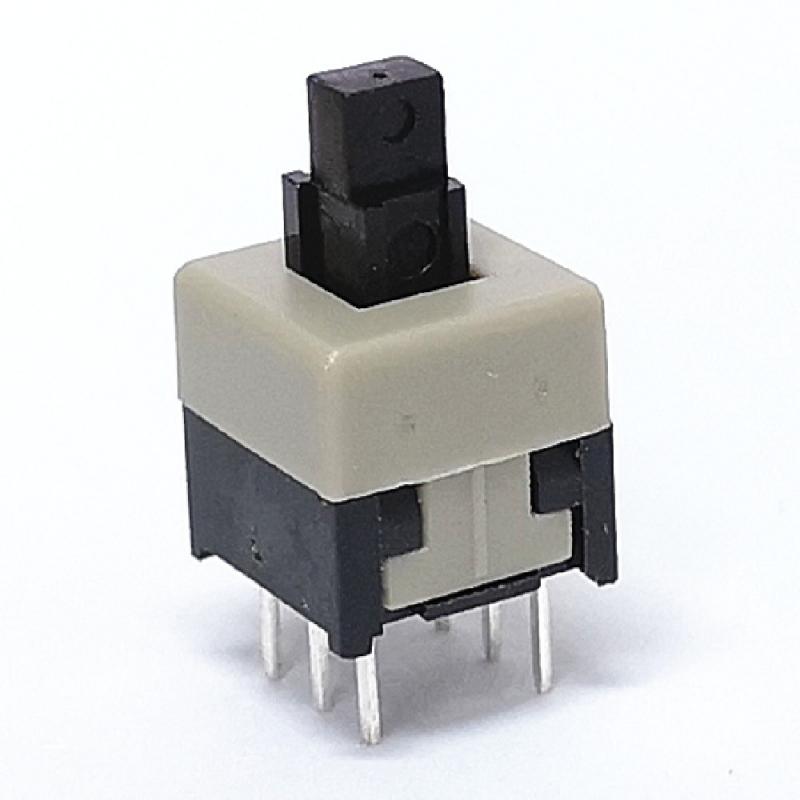

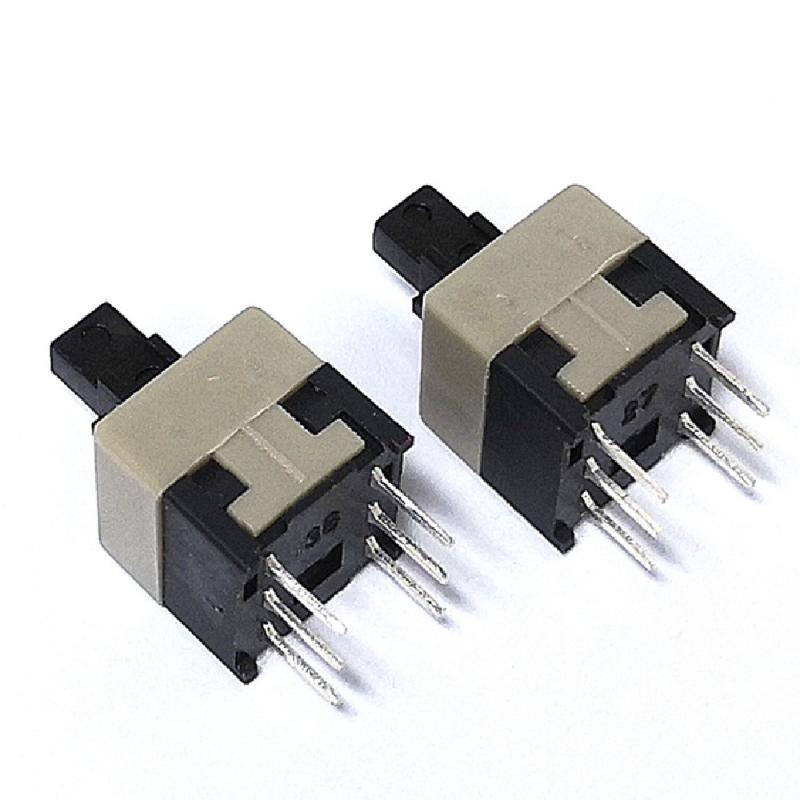

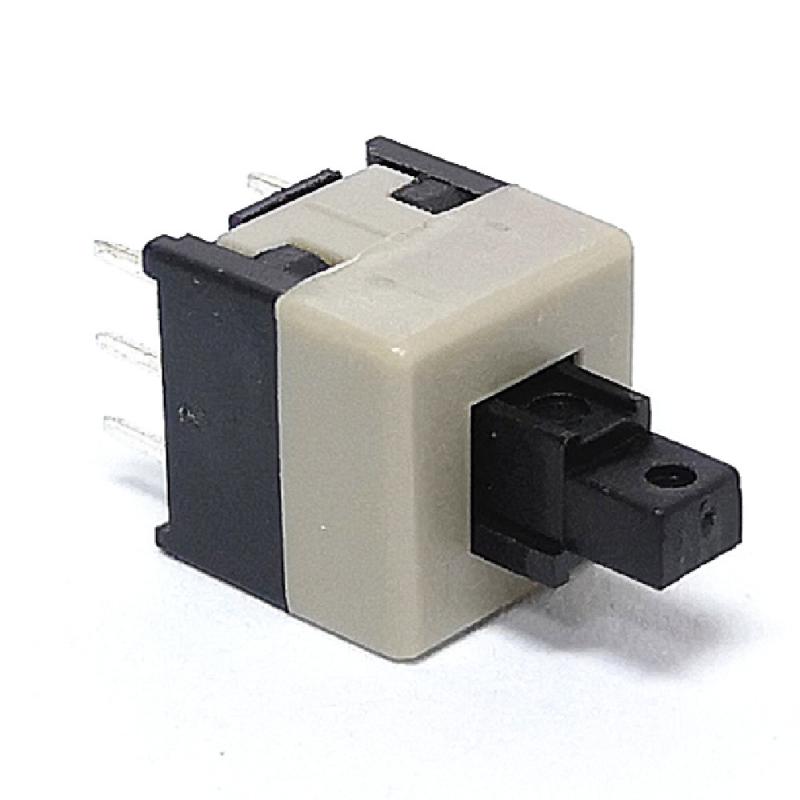

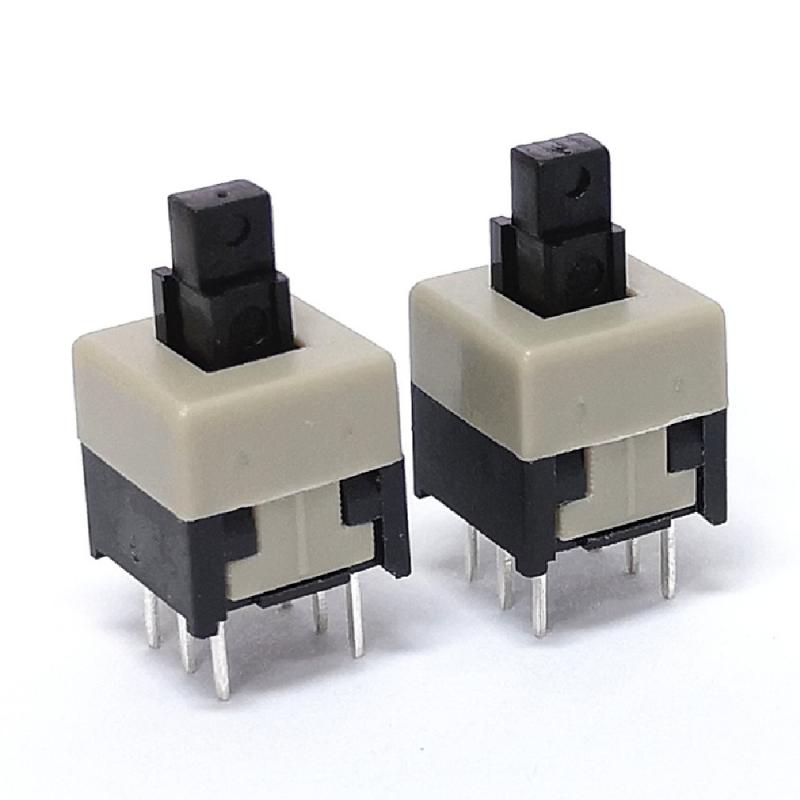

8.5*8.5 wholesale 6 terminal push button switch

The non-lock switch is pressed by hand, and the button bounces back immediately when the hand is released. It needs a circuit to realize the lock function

Brand:
Gangyuan
Item NO.:
PB21E09171
Order(MOQ):
500
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
8.50mm x 8.50mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
No IP Rating

Product Detail

DPDT square button switch key 6 pin non locking switch

Specification

Wholesale push button switch

Protection Level:Safe

Size: 8.5*8.5mm

Max. Current: 0.1A
Max. Voltage: DC 30V
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ DC500V
Insertion and extraction force: 170-180N
Withstand voltage: AC 300V(30Hz)/min

Life Test: 10000 cycles

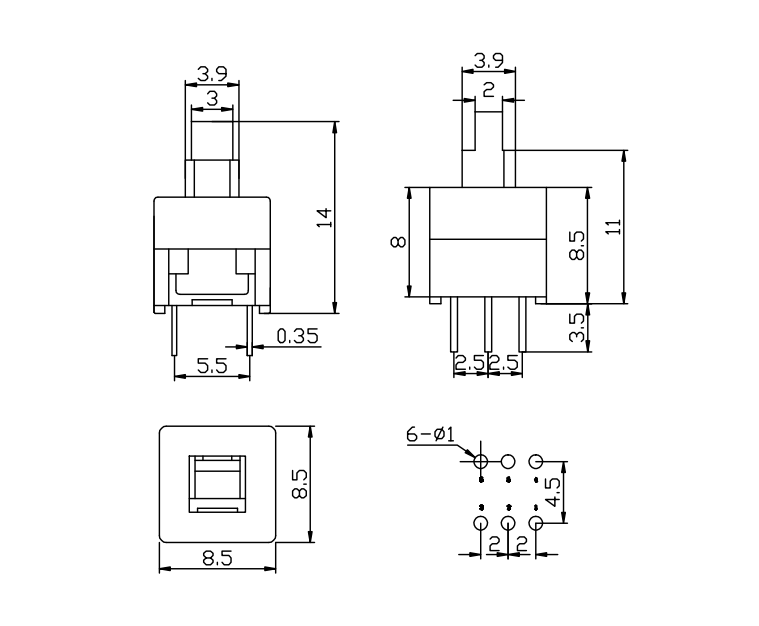

Drawing

How does a mechanical push button work ?

In industrial and commercial applications, push buttons can be connected together by a mechanical linkage so that the act of pushing one button causes the other button to be released. In this way, a stop button can "force" a start button to be released.

Advantage

Professional Developing Team - Long-term cooperation with world top 500 companies such as CANON, OMRON, etc., we totally understand the needs of industry benchmark customers;
Automated manufacturing - Using raw materials imported from Japan and South Korea； More than 85% of products are manufactured automatically to ensure stable product quality and reliable delivery guarantee;
Over 2000 models - Reach categories and wide application range; Meet customer one-stop procurement, reduce costs； Keep the product comprehensive cost leading;
Quick response pre-sales and after-sales service team - Technical specialists follow up throughout the process, online customer service； The establishment of a multi-site localized service base provide customers with quick response service support；
