Square or round knob are available,also support high temperature resistance and common raw material.
Brand:
GangyuanItem NO.:
KAN0621Order(MOQ):
1000pcsPayment:
100% T/T before productionProduct Origin:
ZhejiangColor:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 working days

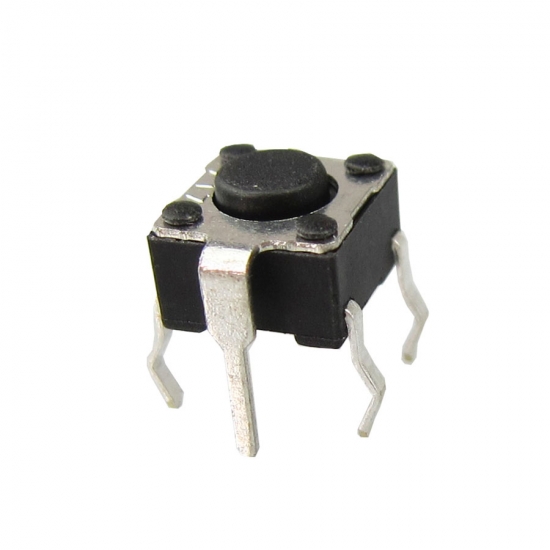

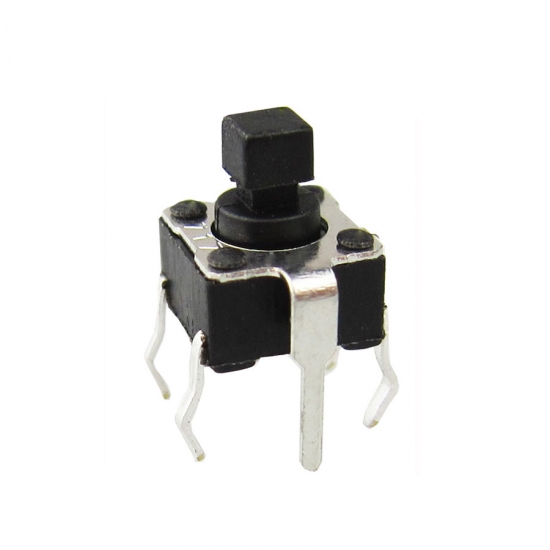

Product item:Tactile switch with ground terminal
Feature：

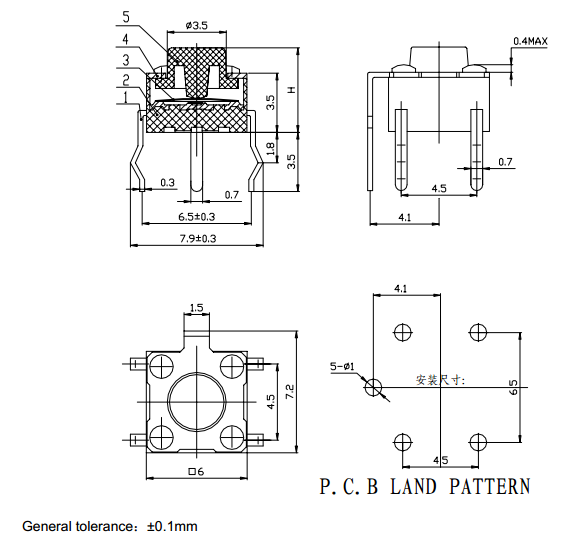

Dimension:
NO.
NAME
MATERIAL
QTY.
FINISHING
1
TERMINAL
Brass
1
Silver Plating
2
CASE
PA66
1
Black
3
CONTACT
Phosphor bronze
2
Contact side silver plating
4
COVER
SPCC
1
Cu Sn plating
6
STEM
PA66
1
Black
Operating force：
Application
Previous:
Horizontal type tact switch with metal bracketNext:
12V momentary tactile switch with plastic coverIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
