china micro switch kw4a s

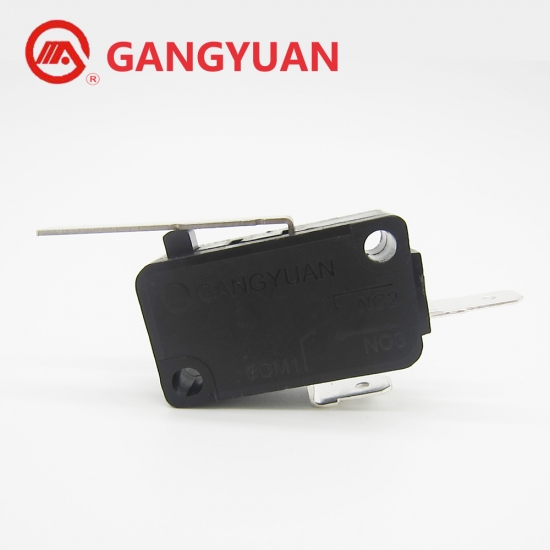

Long Lever 5a 250v t125 china micro switch kw4a s

Brand:
Gangyuan
Item NO.:
G20-16EN02-70
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
3 working days for payment

Outline (mm)
27.80mm x 15.90mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

Long Lever 5a 250v t125 china micro switch kw4a s

Basic Information

Model Name:	Micro Switch
Model No.:	G20-16EN02-70
Dimension:	29X15.9mm
Operating Temperature	-25℃~85℃
Operating Relative Humidity	≤85℃
Dielectric withstanding Voltage	1500V AC 1Min
Voltage Rating	125/250V AC
Current Rating	10A
Operation Force	40±20gf
Soldering Temerature	260±5℃.5S
Circuit Code:	SPST-NO

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
