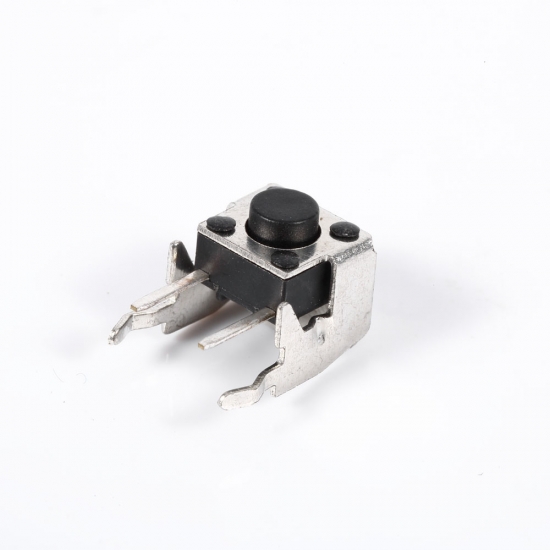

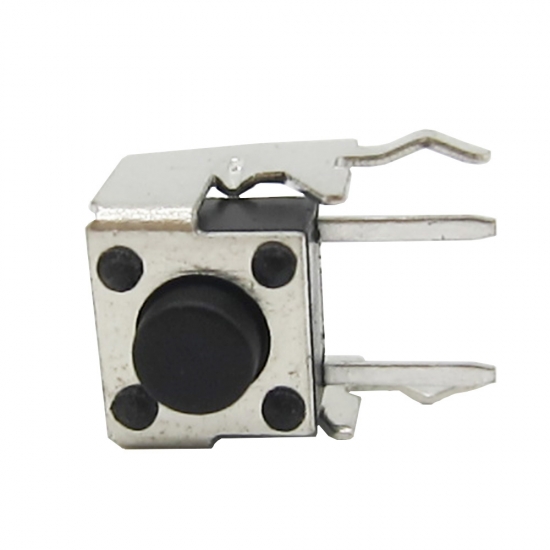

angle dip button tact switch smd 6x6 side actuated tact switch
Brand:
GangyuanItem NO.:
KAN0631Order(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and silverShipping Port:
Shanghai /ShenzhenLead Time：
14 working days for paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X
angle dip actuated push button tact switch 6x6 tact switch
Basic Information
|
P/N
|
KAN0631
|
|
Type
|
Angle dip tact switch
|
|
Dimension
|
6X6XH(4.3-21mm)
|
|
Operating force
|
100gf/160gf/260gf±50gf
|
|
life cycles
|
60,000/80,000/100,000 cycles
|
|
Travel
|
0.25mm±0.1mm
|

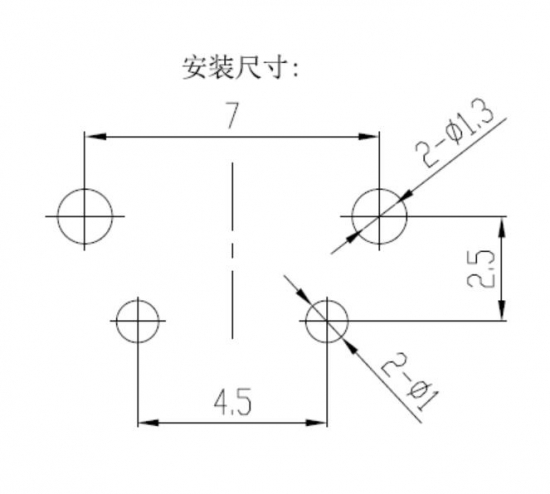

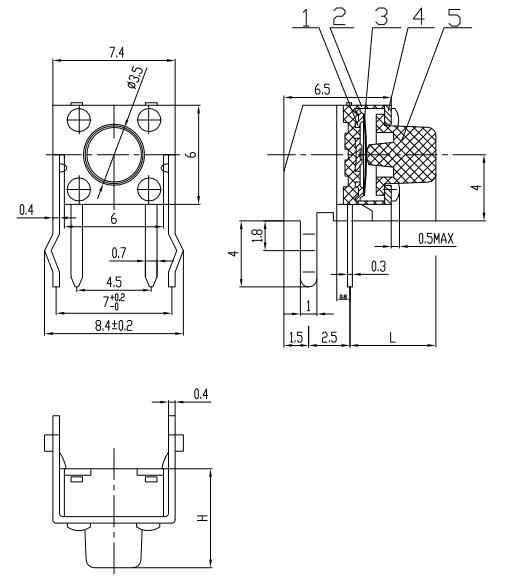

Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
