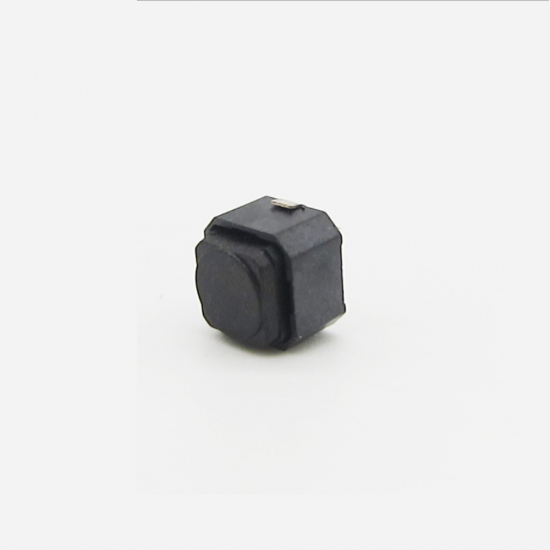

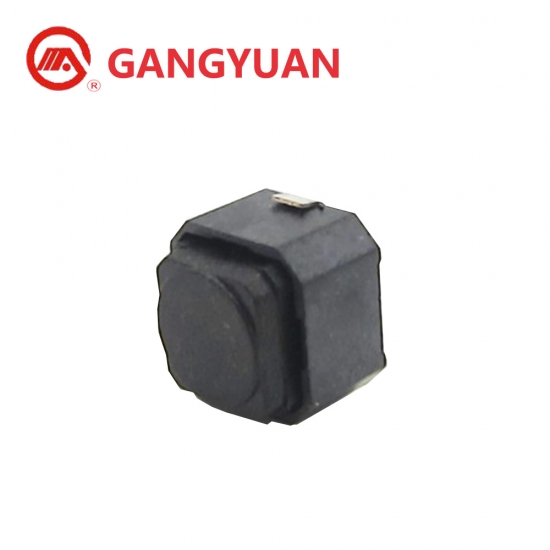

50mA 12V smd silent tactile switch tact switch for automotive dashboard function key
Brand:
GangyuanItem NO.:
KTD0621-0501XOrder(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X

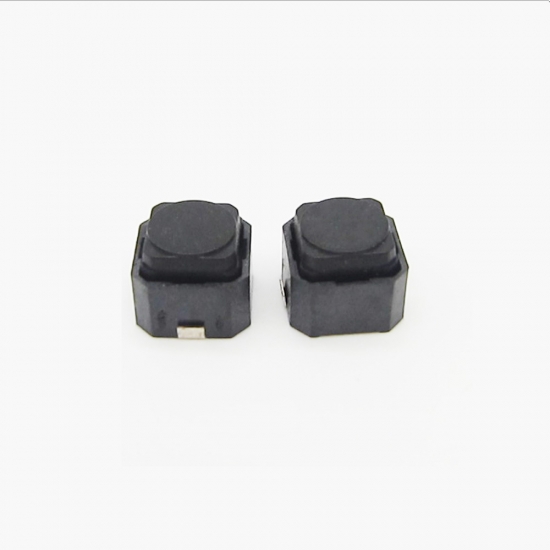

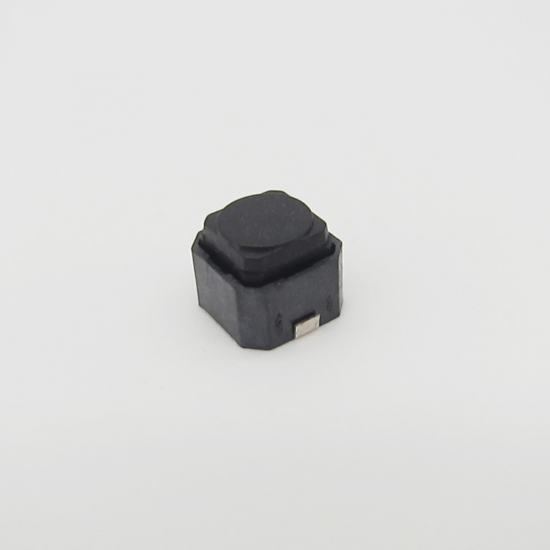

6*6mm SMT silent tactile switch car horn tact switches
Basic Information
| Rating | DC12V 50mA |
| Travel | 1.3 ± 0.1 mm |
| Operating force | 100gf/160gf/230±50gf |
| Certification | ROHS SGS ,ISO |
| Return force | 50 gf Min |
| Heat resistance | 80±2℃ 96h |
| Salt mist |
35℃±2℃/8h±1h/5±1% Salt concentration |
Dimension
Tact Switch Using Attention
1．After switches were soldered,please be careful not to clean switches with solvent.
Our advantage
1. Excellent R&D team
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
6.Local after-sale service, solve your fix problem face 2 face.

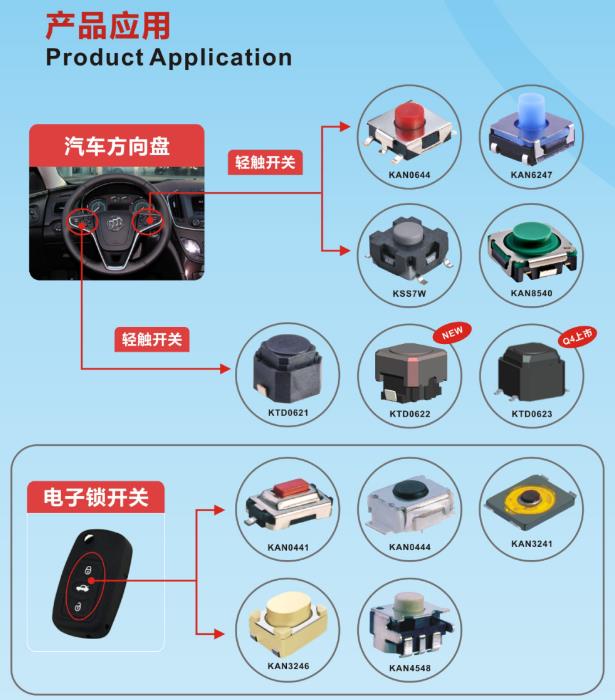

Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, home appliance, autombile ,such as car window and car horn button, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
