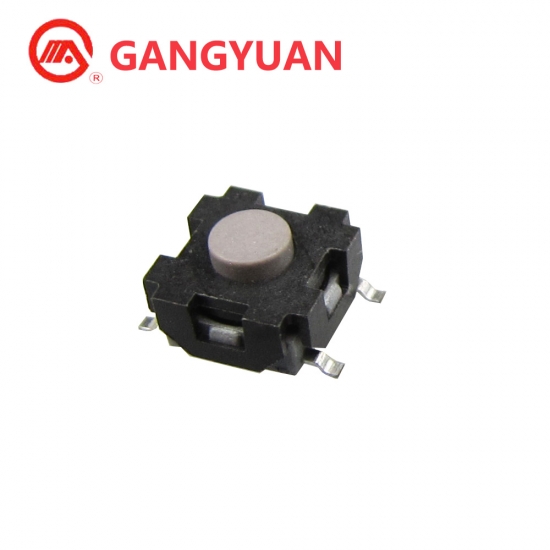

7.2X7.2 Waterproof IP65 SMD Tactile Switch
Brand:
GangyuanItem NO.:
KSS7WOrder(MOQ):
10pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
3 working days for paymentOutline (mm)
7.20mm x 7.20mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP67
7.2X7.2 Waterproof IP65 SMD Tactile Switch
Basic Information
| P/N | KSS7W |
| Type | SMD tact switch |
| Dimension | 7.2x7.2xHmm |
| Operating force | 160gf/200gf±50gf |
| Life cycles | 30,000/50,000 cycles |
| Travel | 0.25mm±0.1mm |
Dimension
|
Contact resistance
|
≤50mΩ
|
Heat resistance
|
80±2℃, 96h
|
|
Insulation Resistance
|
≥100MΩ
|
Moisture resistance
|
60±2℃, 96h
|
|
Dielectric voltage proof
|
250V AC(50Hz/60Hz)/1min
|
Sulfuration resistance
|
40±2℃, 72h
|
|
Resistance to low temperature
|
-30±2℃, 96h
|
Salt Mist
|
35±2℃, 168h±4h
|
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact s
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
