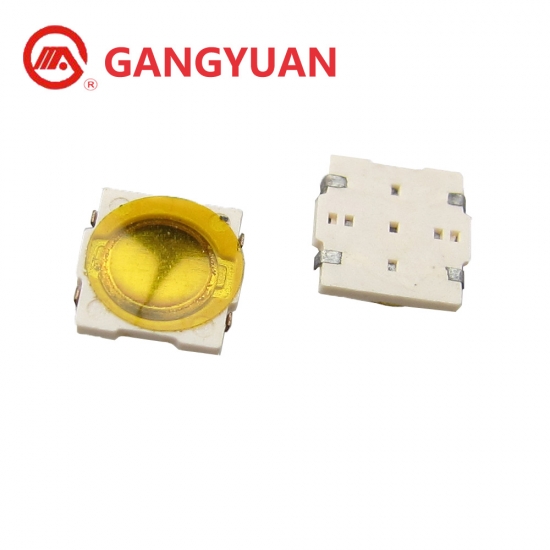

5x5 smd tact switch

4 pins black or white base 5x5 smd tablet tact switch flat

Brand:
Gangyuan
Item NO.:
KAN0545-055B
Order(MOQ):
10pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
yellow
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
4.80mm x 4.80mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

4 pins black or white base 5x5 smd tablet tact switch flat

Basic Information

Life cycles	500,000cycles
Rating	DC12V 50mA
Function	2P3T
Travel	0.55mm
Operating force	260±50gf
Contact resistance	100m Ω Max
Insulation resistance	100M Ω Min
Resistance voltage	AC 250V for 1 minute

Dimension

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact s

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
