Miniature Slide switches are used to control current flow in a circuit, and typically use a mechanical slider to switch a current on and off, by sliding between an open and closed state.
Brand:
GangyuanItem NO.:
MSS12DH3-TG2Order(MOQ):
500Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：

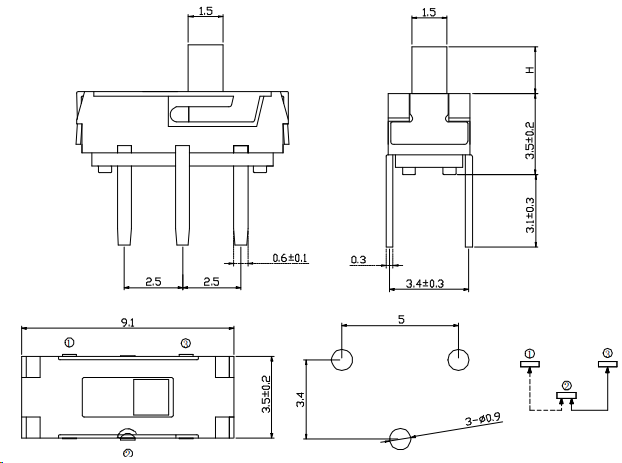

7-15 working daysOutline (mm)
9.10mm x 3.50mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

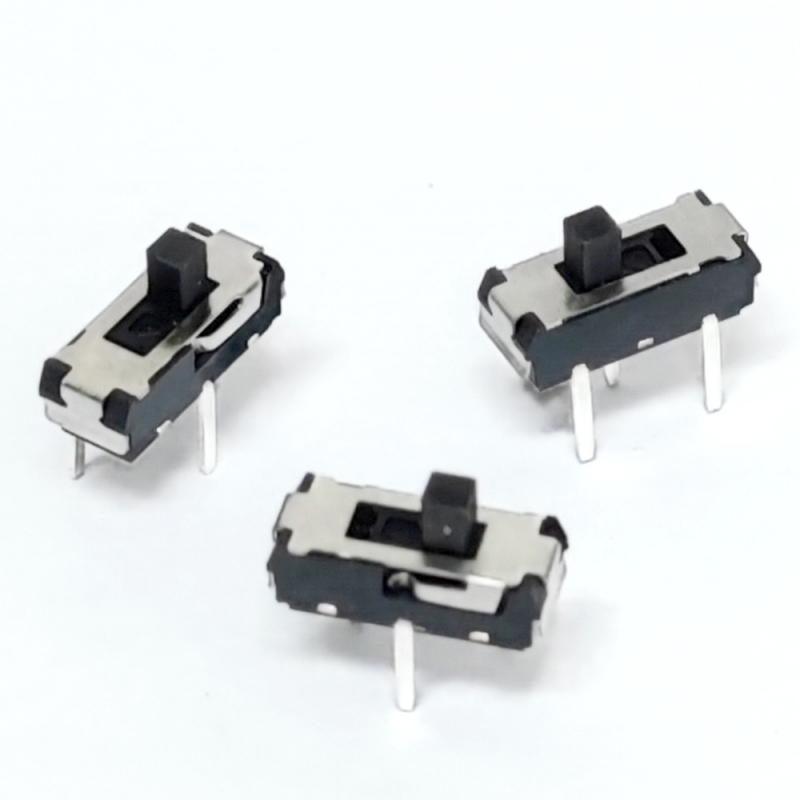

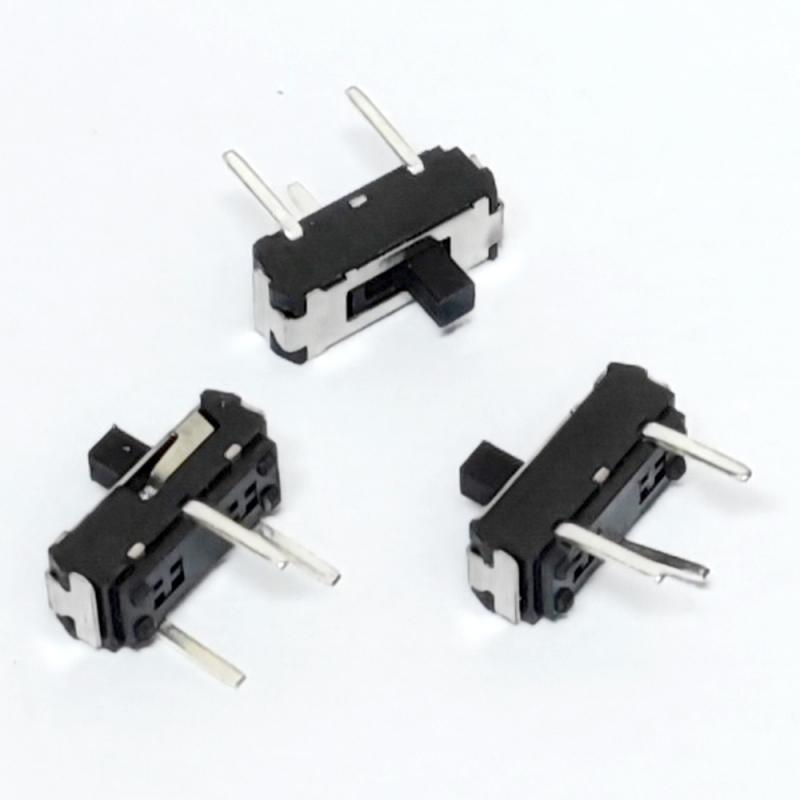

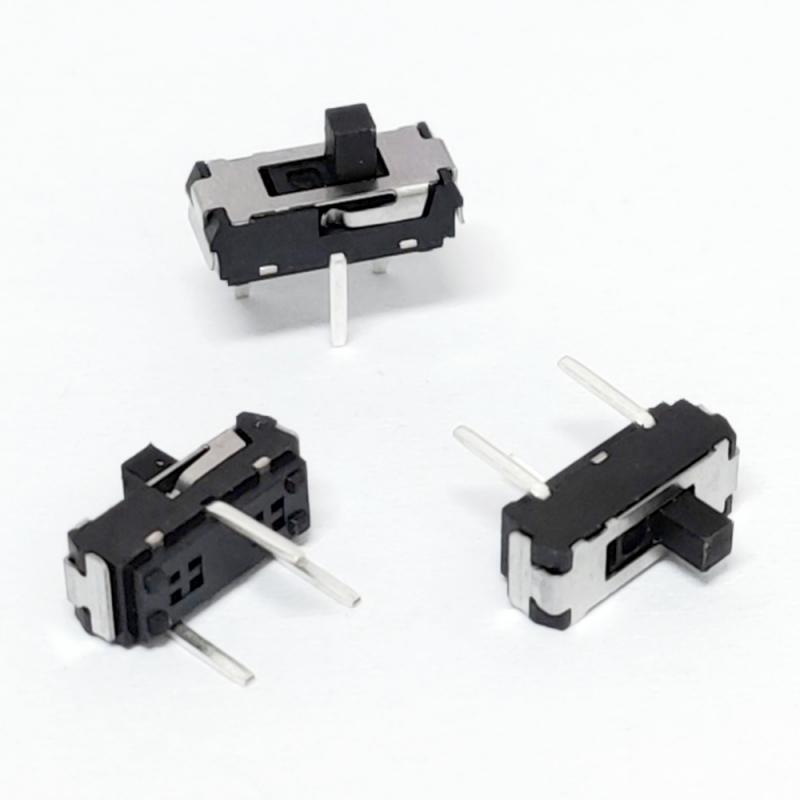

No IP RatingMini switches 2 position PC Pin DPDT Through hole slide switch
Typical Specifications
Ratings: DC12V 50mA
Operating Force: 230±100gf
Full Travel: 2±0.5mm
Operation life: 10,000 cycles
Slide switch knob: 2mm
Operating Temperature Range: -15℃～60℃
Slide switch schematic
Double Pole Double Throw Slide Switch
Features/Benefits
All Kinds of variable levels design.
Assembling ways: DIP.
The switch operationg force equality, good feeling.
The terminals state can be design according to requirement.

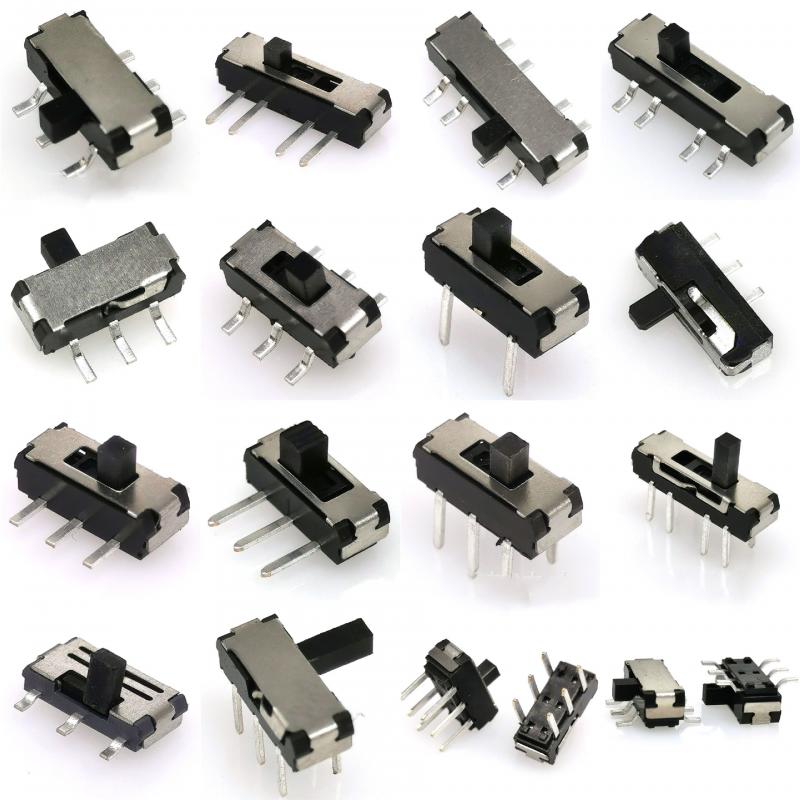

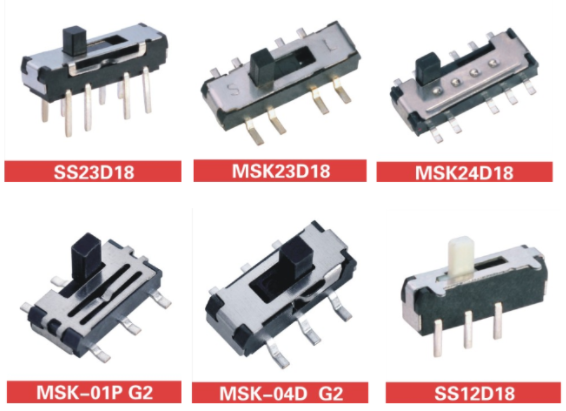

More Slide switch types
• Surface and thru hole mounting • SPDT, DPDT, DP3T models • RoHS compliant • Sub-Miniature Slide Switches
Typical Applications
• Telecommunication products
• Computer peripherals
• Thermostat select switch
• Instrumentation
• Medical
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Easy Structure, Mini Body, 3 Terminal, Vertical Handle,1 Pole 3 Position, Sliding Knob Actuator.
Horizontal slide switch, knob of wave or V shape, 1 pole 3 position, PCB mounting.
SMD type slide switch, miniature body, easily handle, surface mount design terminal with 2 positions, workable for reel packing.
Side operated white knob, one pole two throw, PCB mounting design, 3 terminal, adoptable in reel packing.
Side operated knob, 2P3T type, 8 termninals, Mini shape for PCB, also a great components for DIY.
2P3T Mini Slide Switches for Audio Products,Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 2 Position, Sliding Knob Actuator.
MSK-01-B: 7.1mmX3.5mm, 180gf, 2P2T type slide switch.
MSK-01Q: 9.9mmX3.2mm, 180gf/250gf, 2P3T Type slide switch.
