DPDT Micro Top-mount Slide Switch

Rated at 100mA and DC12V, these small single-pole double-throw (DPDT) slide switches are excellent on/off power switches for low-power electronics.

  • Brand:

    Gangyuan
  • Item NO.:

    MSS22D02-TG2-D20001
  • Order(MOQ):

    500
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Outline (mm)

    9.10mm x 3.50mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    No IP Rating
  • Product Detail

Electronics switches small appliance 6 pole micro slide switch


 Typical Specifications


Function: 9x3.5mm Mini THT Slide switch

Ratings: DC12V 100mA

Operating Force: 200±70gf

Full Travel: 2±0.4mm

Operation life: 10,000 cycles

Slide switch knob: 2mm

Operating Temperature Range: -10℃~60℃

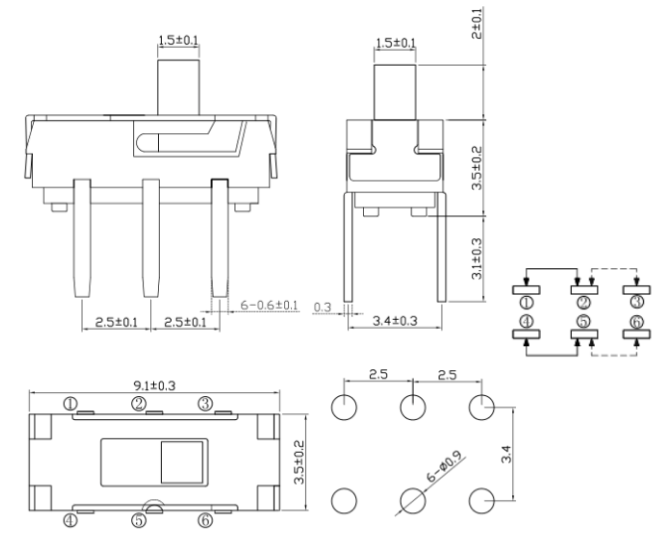

 Slide switch schematic

Mini DPDT Toggle Switch


 Difference from SPDT

The SPDT toggle (single pole double throw) controls only one circuit, while the DPDT toggle is equivalent to

two SPDTs operating synchronously.


 More Slide switch types

3 pin 2 position Slide switch




  What is the function of a miniature slide switch ?

The slide switches are mainly used for on-off function and were originally designed for telecommunication applications as

they are easy to activate blindly. Miniature professional slide switches for PC boards. The smallest changeover switch.
