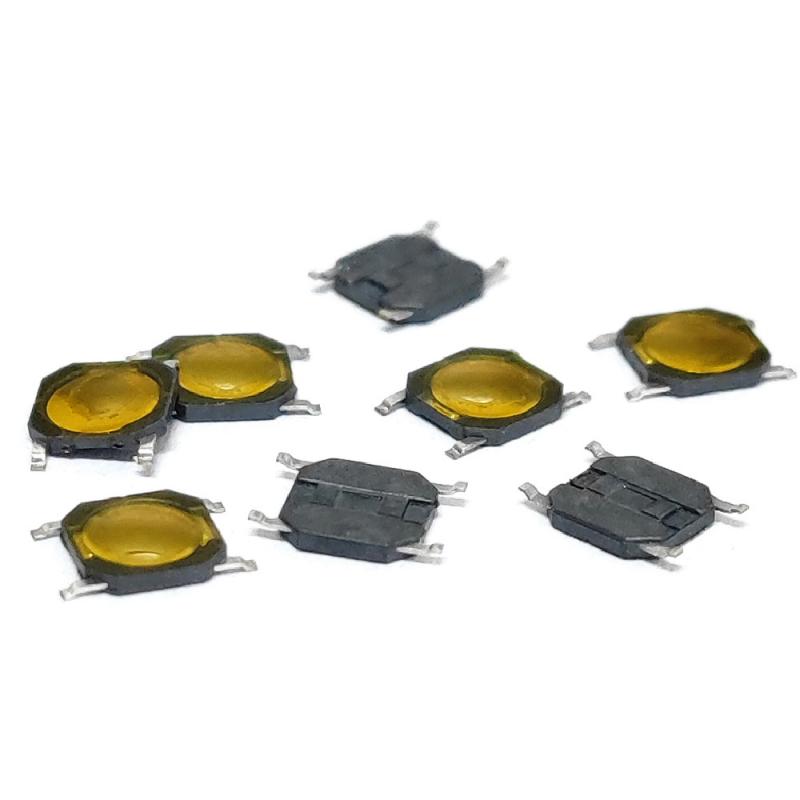

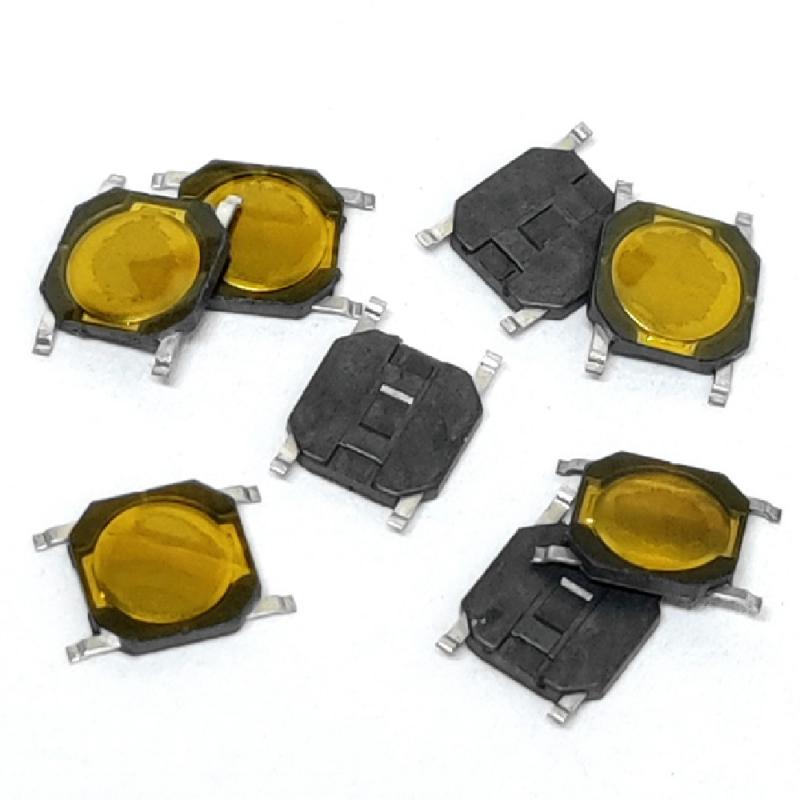

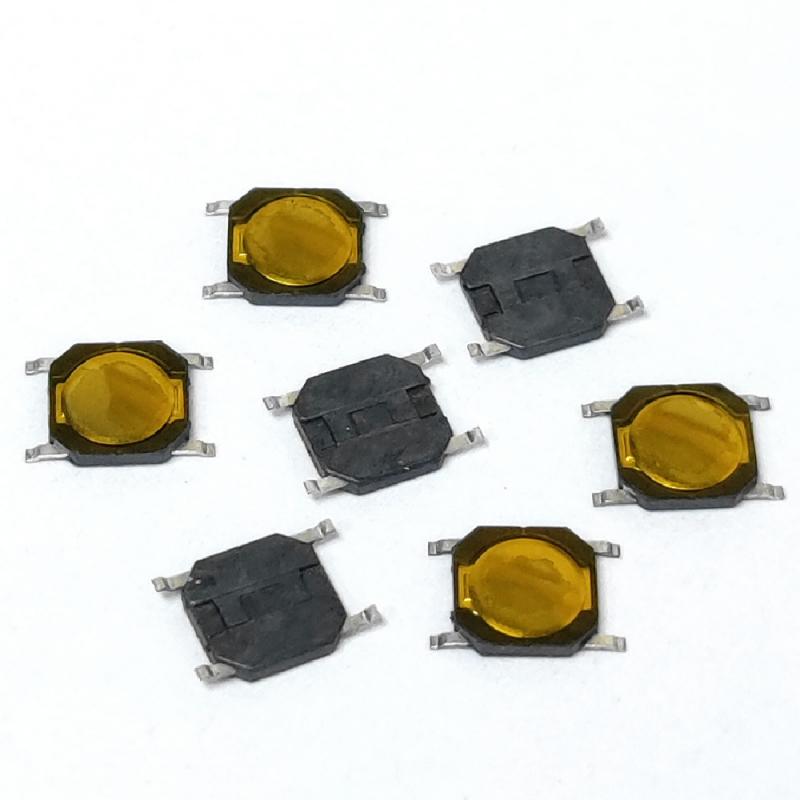

Home Switch Tactile switch 3.7*3.7 4 pin smd small micro tact switch

3.7*3.7 4 pin smd small micro tact switch

A tactile switch allows electricity to flow in an electrical circuit by manually pressing the operating section. The switch is used to supply input signal to actuate a device or equipment.

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0544A-C1-14
  • Order(MOQ):

    5000
  • Payment:

    100% before production
  • Product Origin:

    Wenzhou
  • Color:

    Black
  • Shipping Port:

    Ningbo or Shenzhen
  • Lead Time:

    7-15 working days
  • Outline (mm)

    3.70mm x 3.70mm
  • Mounting Type

    Surface Mount
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

Momentary smd tactile push buttons 4 pin SPST-NO Ultra-small tact switch


 Specification

Type: Horizontal tact switch

Ratings: DC 12V 50mA(Max)DC 1V 10μA (Min)

Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ

Operating Force: 260±50 gf

Product height: 0.7mm

Full Travel: 0.2±0.1mm

Operation life: 60,000 cycles


 Features & Benefits

Ultra-miniature - 3.7mm x 3.7mm

Surface mount termination

Very low profile - 0.7mm

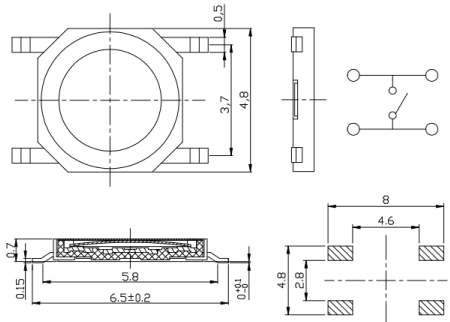

 Mechanical drawing

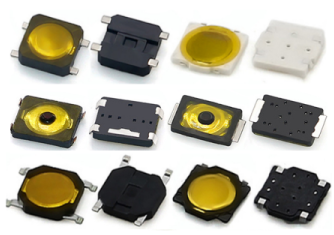

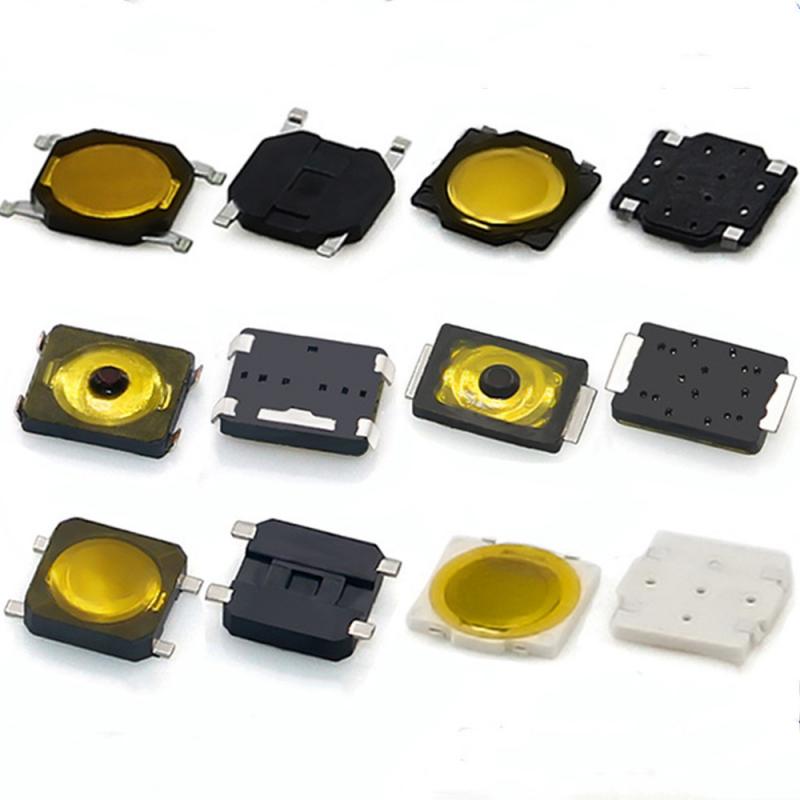

 More type


Smd Miniature Tact Tactile Micro Push Button Switch Micro Switch For Electronic Mobile Devices

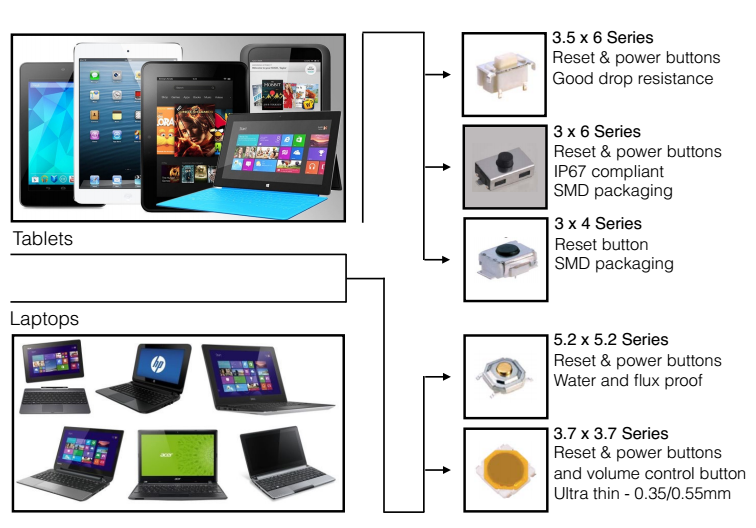

 Tactile switch application


Wearable Electronics / Computer Peripherals

Consumer Electronics / Instrumentation

Telecommunication / Handheld Devices
