Gangyuan's micro switches have passed UL, CQC certification.
Brand:
GangyuanItem NO.:
G20-16EV-150-05Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
BlackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating

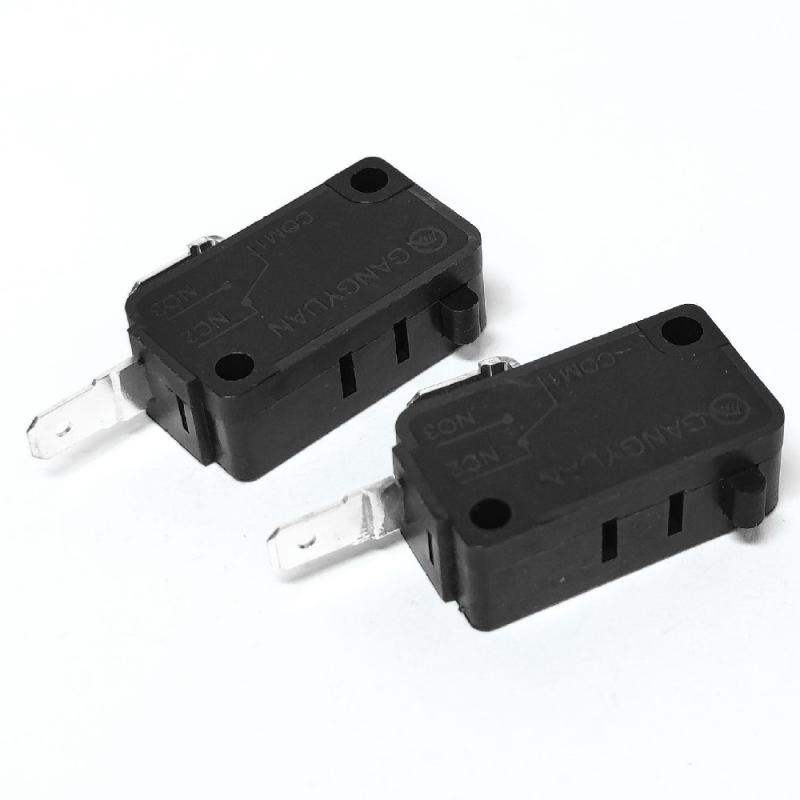

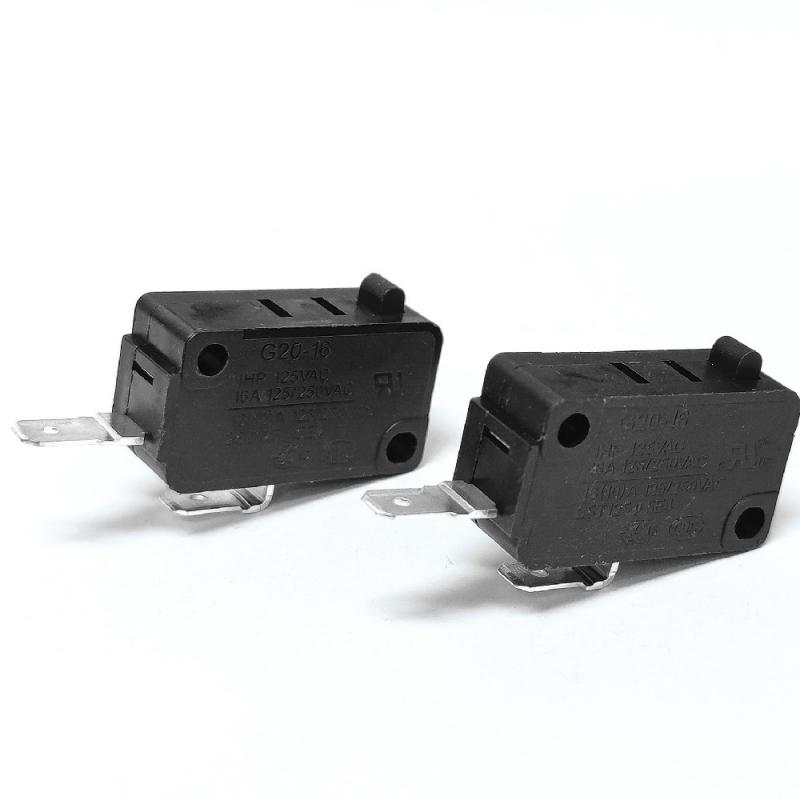

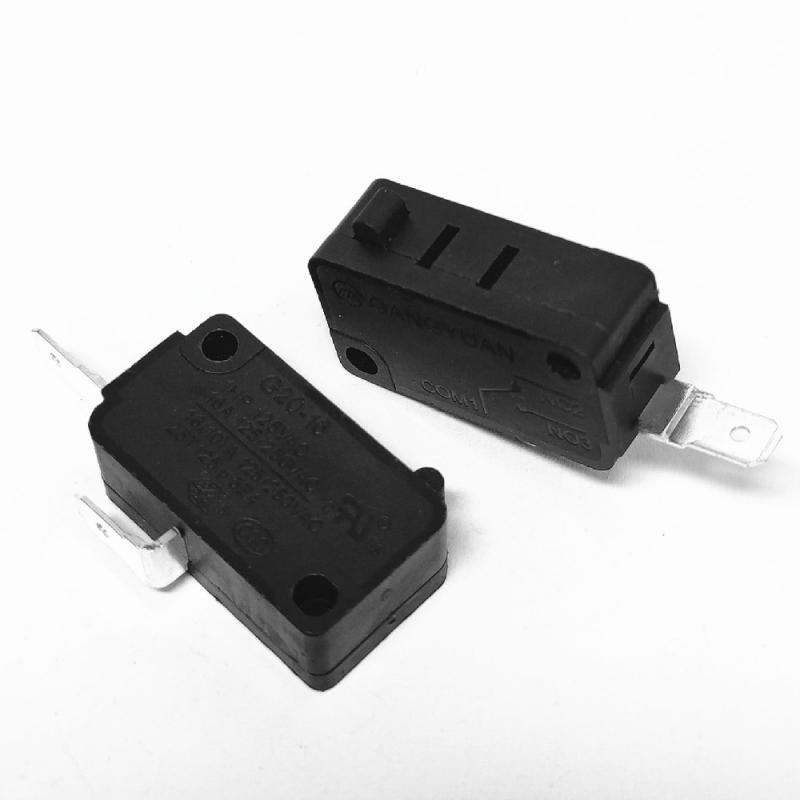

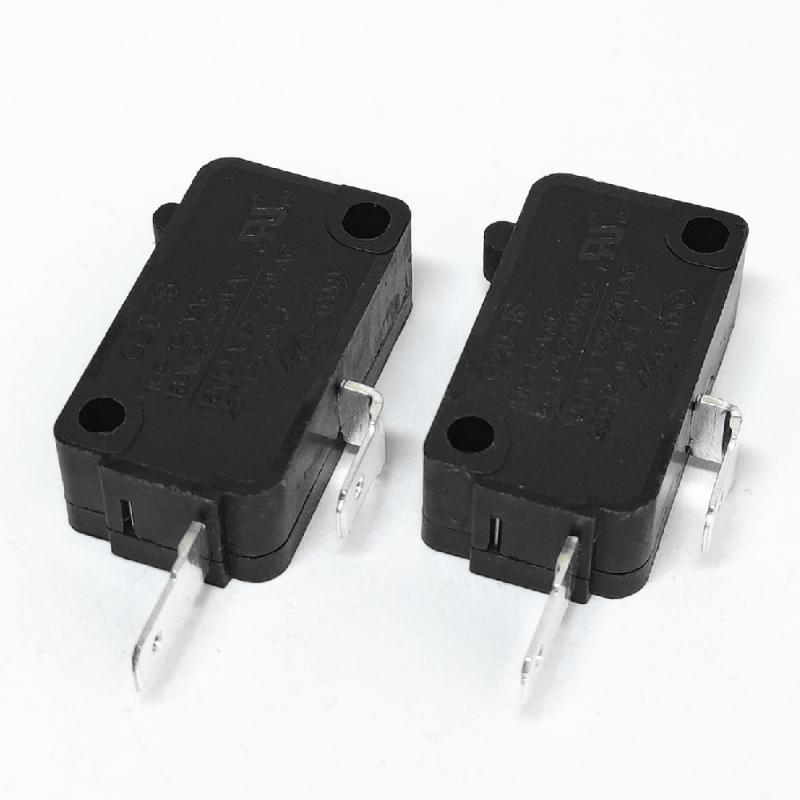

IP4X1HP 5E4 no lever 2 solder terminals micro switch 27.8*15.9*10.3
Momentary micro switch manufacturers
Parameter
Micro switch 16a 125/250vac
1.Operating Temperature Range: -25℃～+125℃
2.Operating Relative Humidity:≤85%
3.Voltage Rating:125/250V AC
4.Current Rating: 16A
5.Contact Resistance:≤200MΩ
6.Insulation Resistance:≥100MΩ
7.Dielectric Withstanding Voltage:1500V AC 1Min
8.Soldering Temperature: 260士5℃ 5s
9.0perating Force : 150士50gf
10.Life Time (mating cycles):50000 Cycles

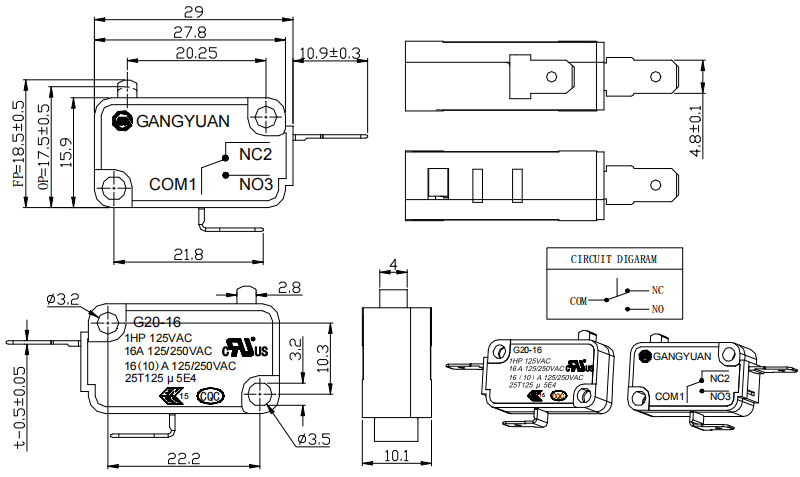

Drawing
Circuit Code
SPDT SPST-NO SPST-NC

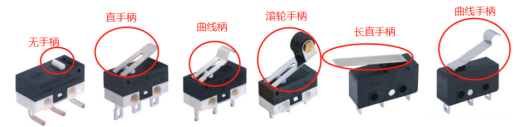

Lever Type
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
