Common applications of micro switches include the door interlock on a microwave oven, mouse,
safety switches in elevators, vending machines, arcade buttons, and to detect paper jams or other faults in photocopiers.
Brand:
GangyuanItem NO.:
G20-10EN-150-04Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Shanghai /ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
27.80mm x 15.90mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X2 pin push button micro switch t85 5e4 micro switch

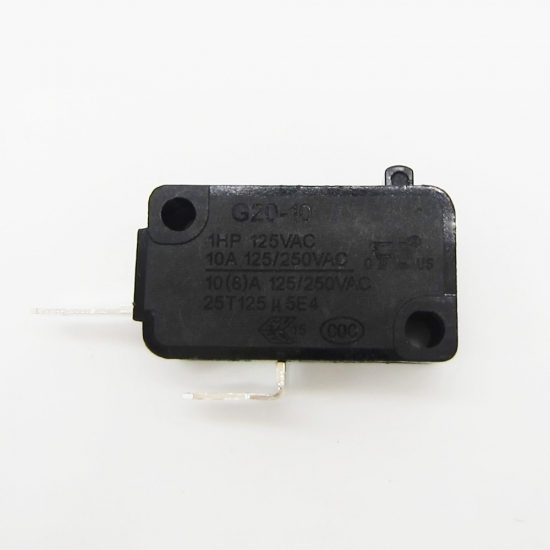

ThIs icro switch size :29x15.9x10.1mm.
Black shell with none lever.
Marked with basic parameters, which is convenient for customers to distinguish.
Basic Information
Product type
Micro switch
Rating
10A 125/250V AC
Contact resistance
≤200mΩ ≥℃
Insulation resistance
≥100MΩ
Operating force
150±50gf
Life
50000 cycles
Operating temperature range
-25℃~+125℃
Operating relative humidity
≤ 85%

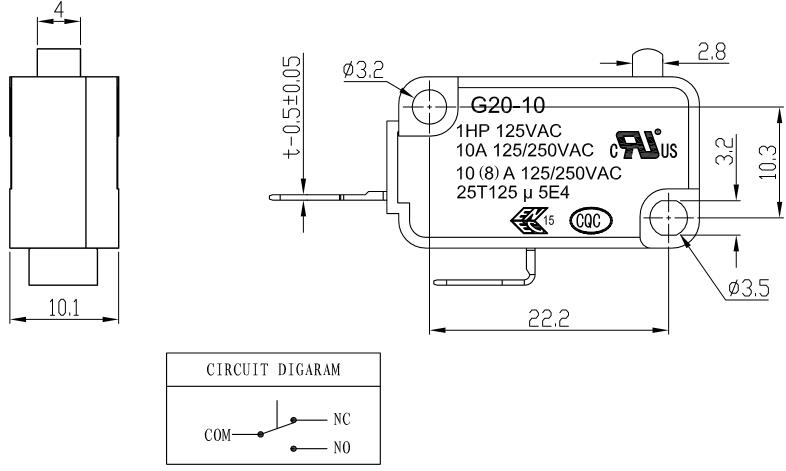

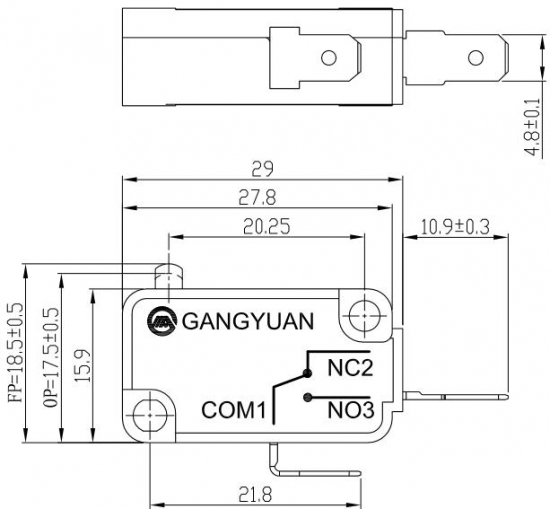

Drawing:
Product features
1. Type: G20 Micro switch
2. Circuit Code: SPDT
3. Lever Type: None lever
4. Electrical Rating: 10(8) 125/250vac,5e4.25t125
Our advantage
1. The factory has 26 years of experience in switch manufacturing and trade.
2. Variety of micro switch option. More than 2000 models.
3. Quality assurance. Imported raw materials from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in China mainland, Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples available within 3~5 days. MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have IQC IQCC and PQC test before delivery.
