Home Switch Tactile switch 23 Series tact switch Waterproof SMD Tact switch with cover

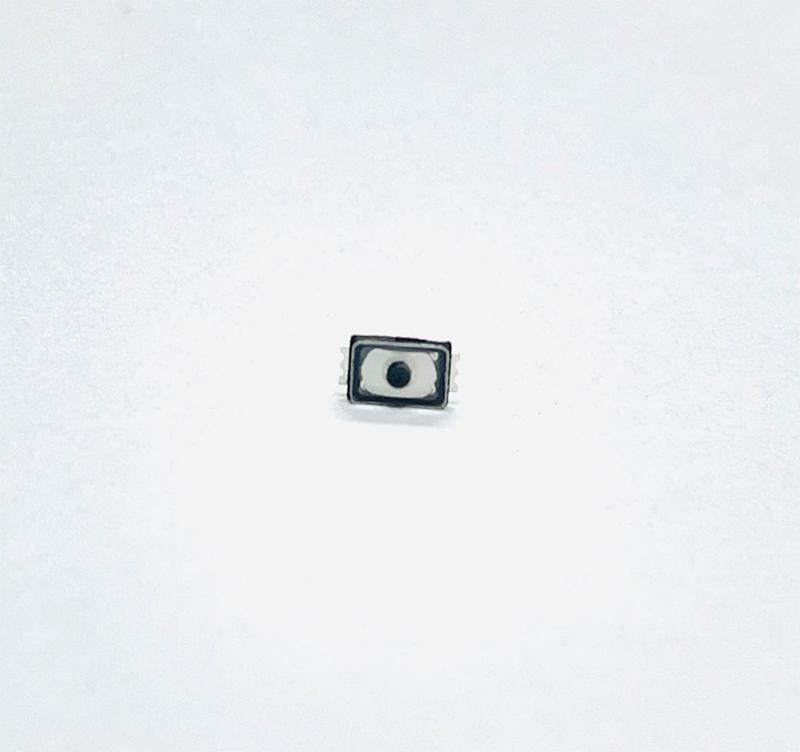

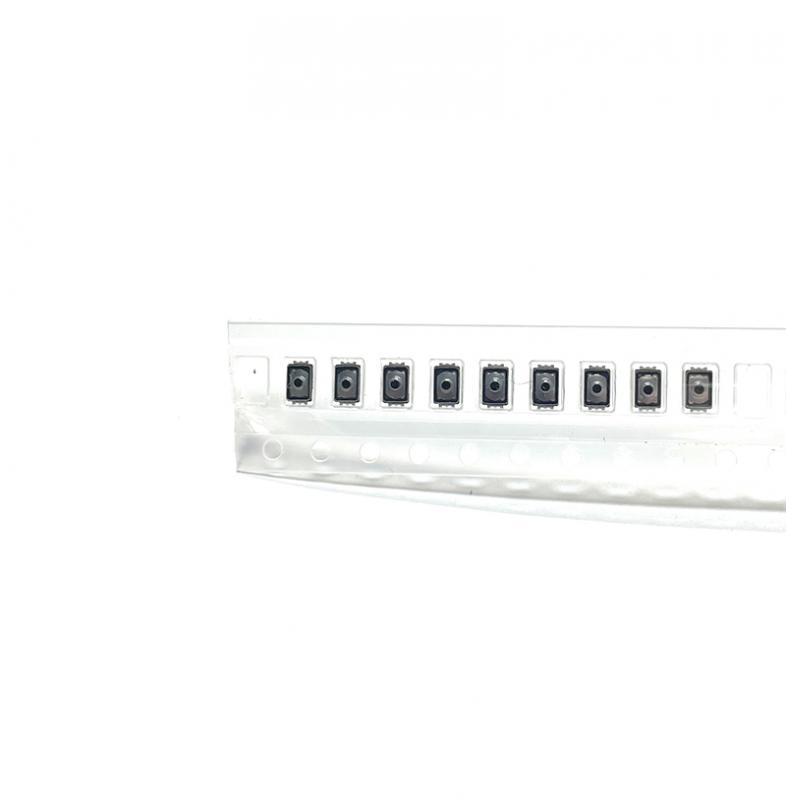

Waterproof SMD Tact switch with cover

Gangyuan Long Travel Mini Waterproof SMD Tact switch with cover

  • Brand:

    Gangyuan
  • Item NO.:

    KAN2341
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    silver
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Product Detail

Gangyuan Long Travel Mini Waterproof SMD Tact switch with cover

Product Description


Tact Switch Features:

  • Gangyuan
  • SMD Tact switch
  • Dimensions: 3x2x0.6 (mm)



Tact Switch Specification:

Contact Rating

  Ratings: DC 12V  50mA(Max)    DC 1V  10μA (Min)

Contact Resistance

≤100mΩ

Insulation Resistance

≥100MΩ

Operating Force

160/260±50gf

Operation life

100,000 cycles

1,000,000cycles

Height

0.6±0.1mm

Heat resistance



80±2℃, 96h

Sulfuration resistance

40±2℃, 72h

Free samples range

30~50pcs

Button(stem)

black




OUTLINE, WIRING DIAGRAM, MOUNTING HOLE LAYOUT (UNIT: mm)
