Waterproof micro tact switch IP67 jaycar push button switch 12v

factory manufacturer waterproof tactile switch IP67

6.2x6.2 mm tact switch SMT

micro push button switch 2pin switch

right angled dip tactitle switch

Brand:
Gangyuan
Item NO.:
WS6242C-180BH
Order(MOQ):
10pcs sample
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
metal and black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
14 working days for payment

Outline (mm)
6.20mm x 6.20mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP67

Product Detail

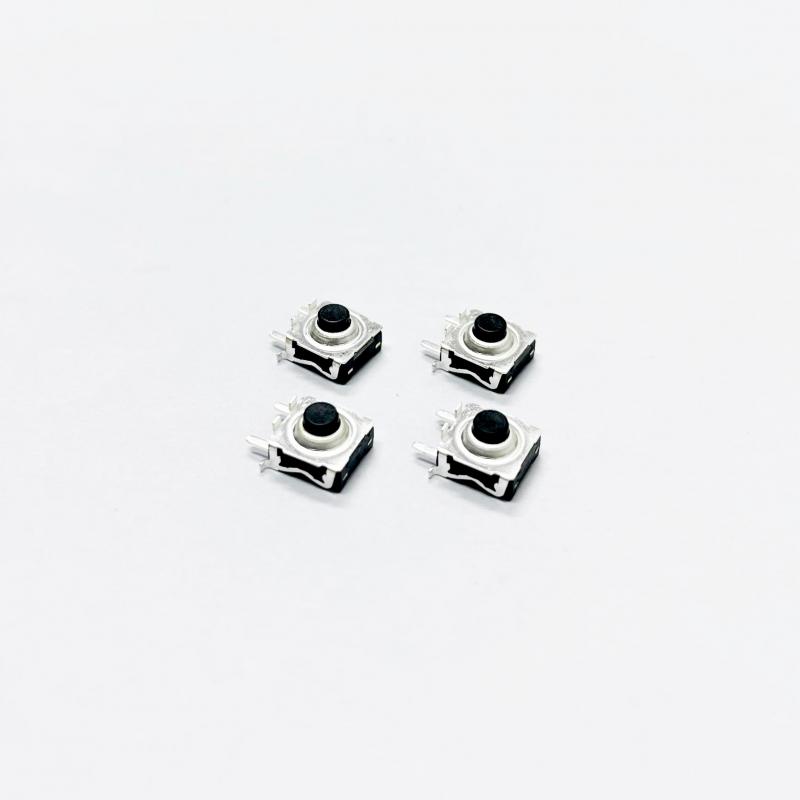

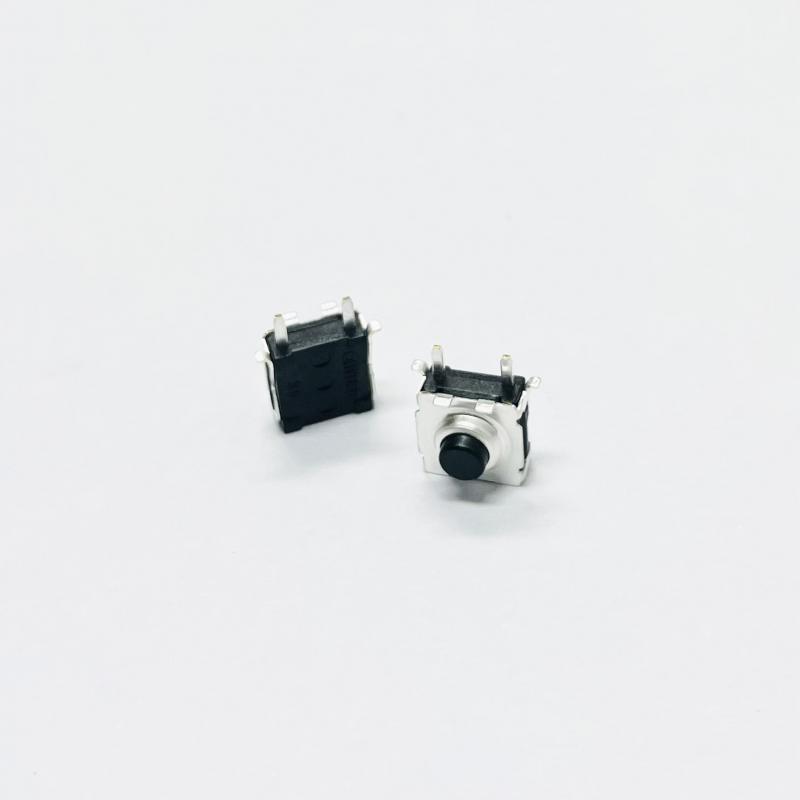

Waterproof micro tact switch IP67 jaycar push button switch 12v

micro tact switch IP67

Basic Information

Rating	50mA 12VDC	Travel	0.3±0.15mm
Insulation Resistance	≥100MΩ	Life circle	100 000circles Min
Contact resistance	≤50mΩ	Operating force	180±50gf
Withstand strength	250VAC(50Hz/60Hz)/1min	Dip type	2pin with right angled dip

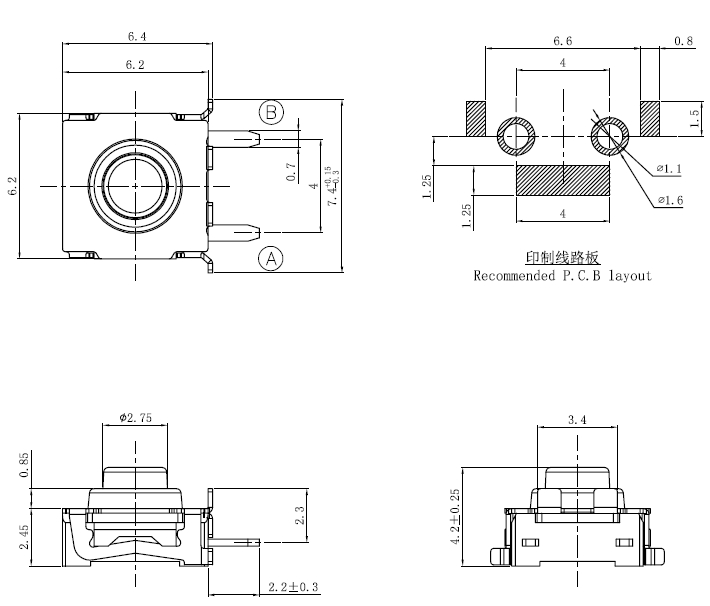

Dimension

Tact Switch installation

1．Please consult us or reference the datasheet we offered you once any questions.

2．Soldering type with manual or wave soldering at certain wroking temperature

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．Double sides soldering ask the temperature get to be normal environment after the first process temperature

Our advantage

1. Excellent R&D team, flexilble applicationa and OEM type.

2.30 years manufacturing on the switch production and sales

3. Local granted technology patents and 47 utility model patents.
4. Full automation process in 100,000 grade dust-free workshop.
5. Certificates granted with TS16949,ISO9001,ISO14001,OHSA18001, RoHS, etc

Application

Multi application of Gangyuan tactile switch use for:

Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

Waterproof feature maxmize the application and the products acceptance in all works of life.

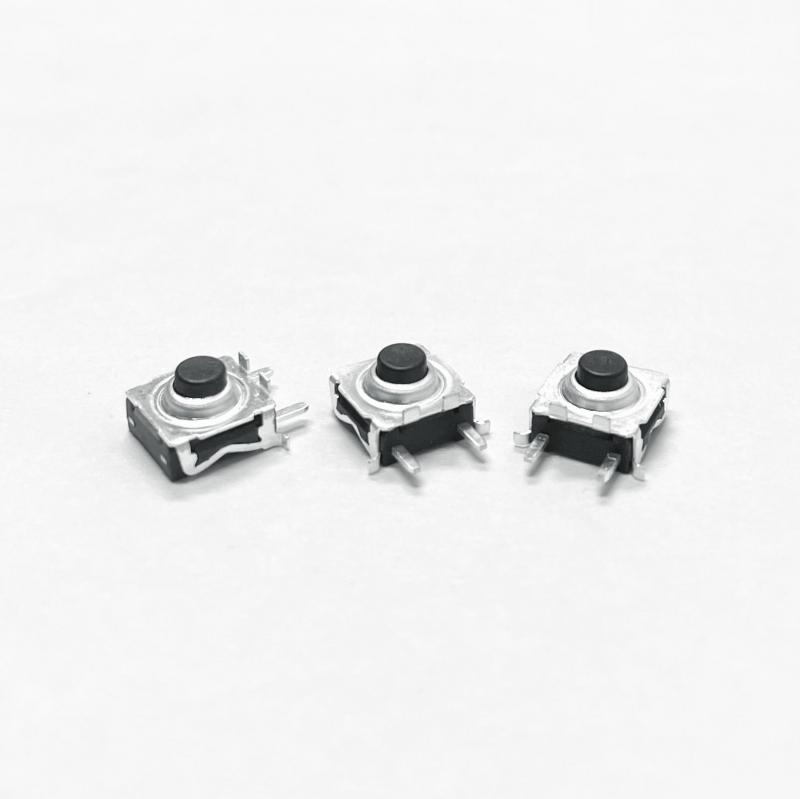

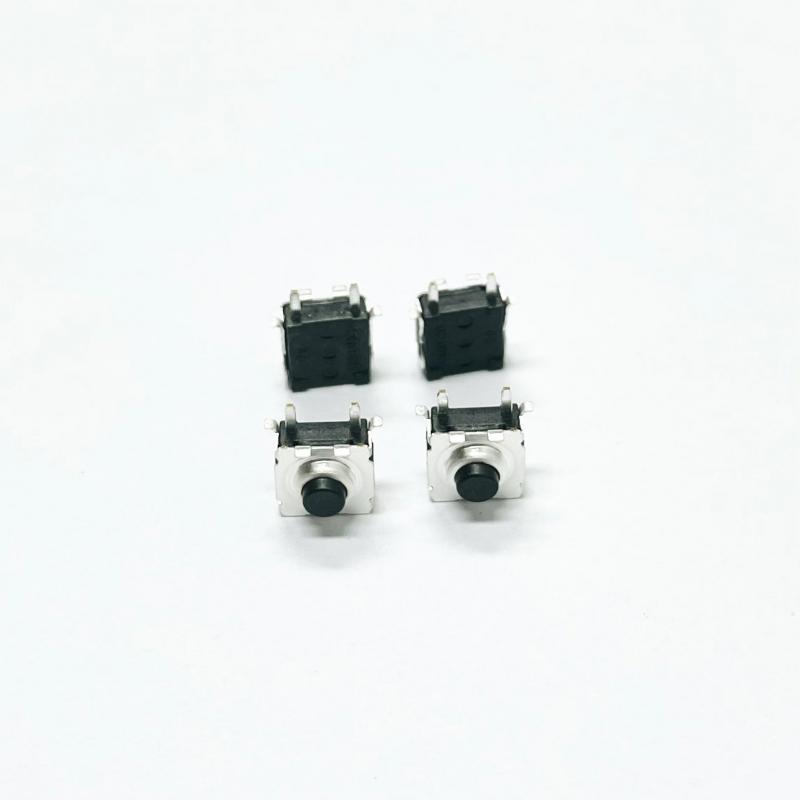

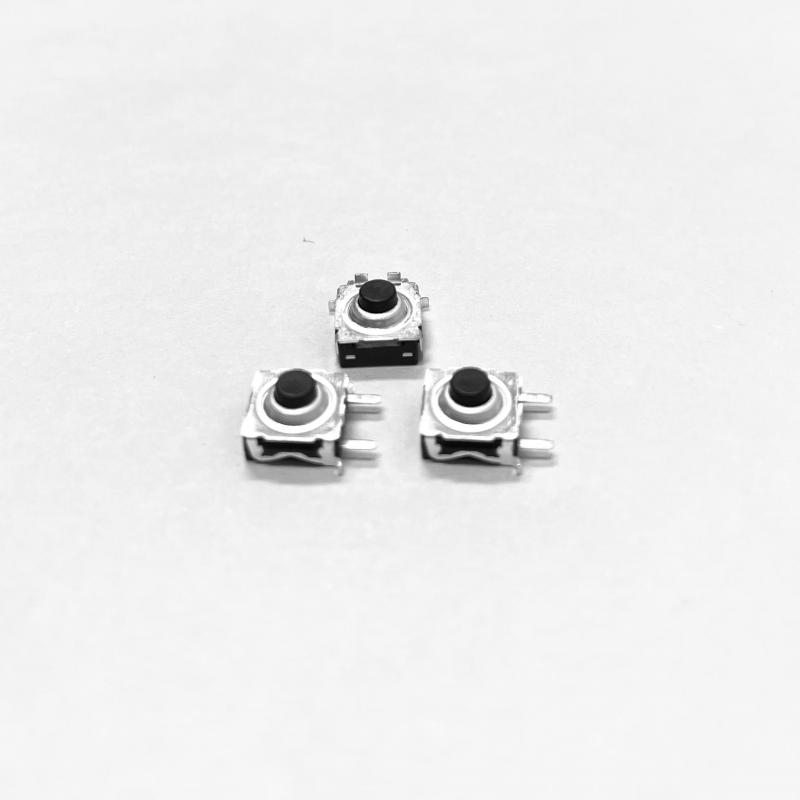

IP67 micro switch with waterproof switch, 2pins
