Middle-travel SMD tactile switch

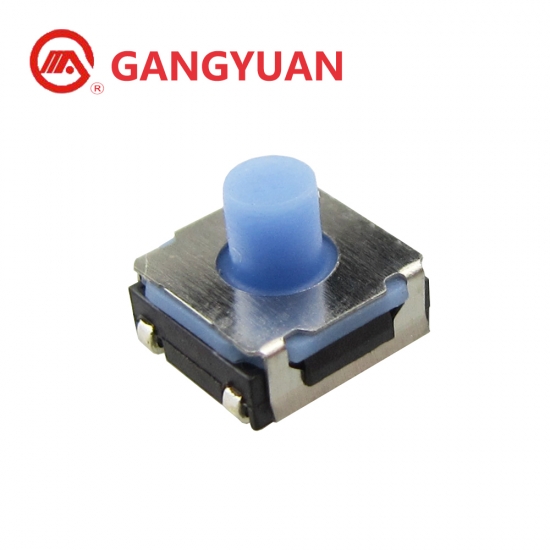

6.2mm Waterproof Square Type Middle-travel SMD tactile switch

Brand:
Gangyuan
Item NO.:
KAN6247-0514M1
Order(MOQ):
1000pcs
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
silver and blue
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Outline (mm)
6.20mm x 6.20mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP67

Product Detail

6.2mm Waterproof Square Type Middle-travel SMD tactile switch

Basic Information

P/N	KAN6247-0340C1
Dimension	6.2x6.2xHmm(H=3.1/3.4/5.1mm)
Operating force	200gf ± 70 gf
Life time	100,000cycles
Rating	12V DC, 50mA
Travel	0.30±0.15mm

Dimension

push button switch function.jpg

Tact Switch Using Attention

1．Please consult us when considering to wash tact switches

2．Please don’t immerse soldering flux into tact switches

3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4．The second welding should be done after switches return to normal temperature

Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
