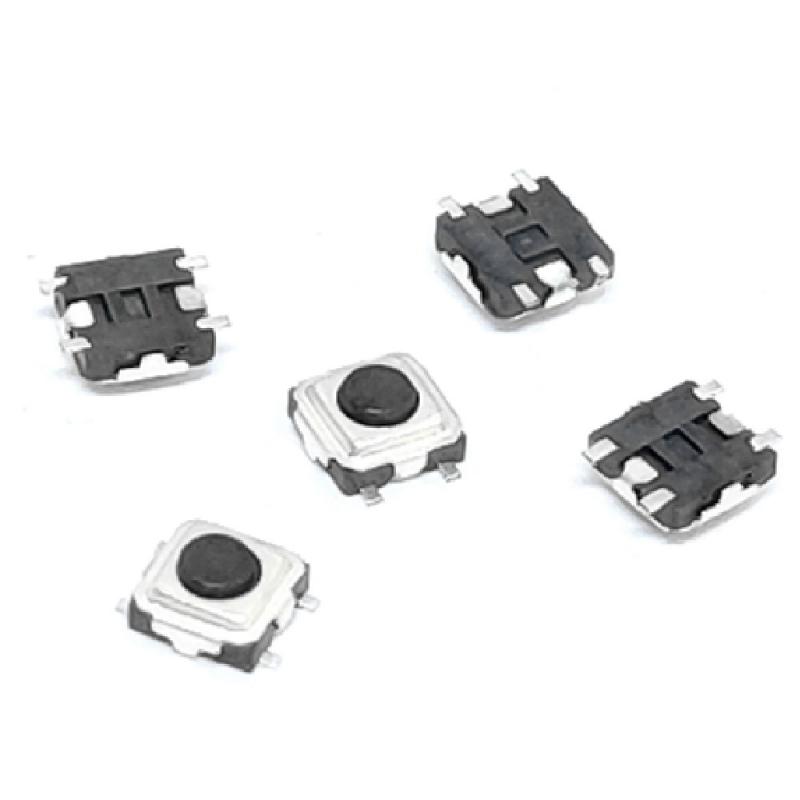

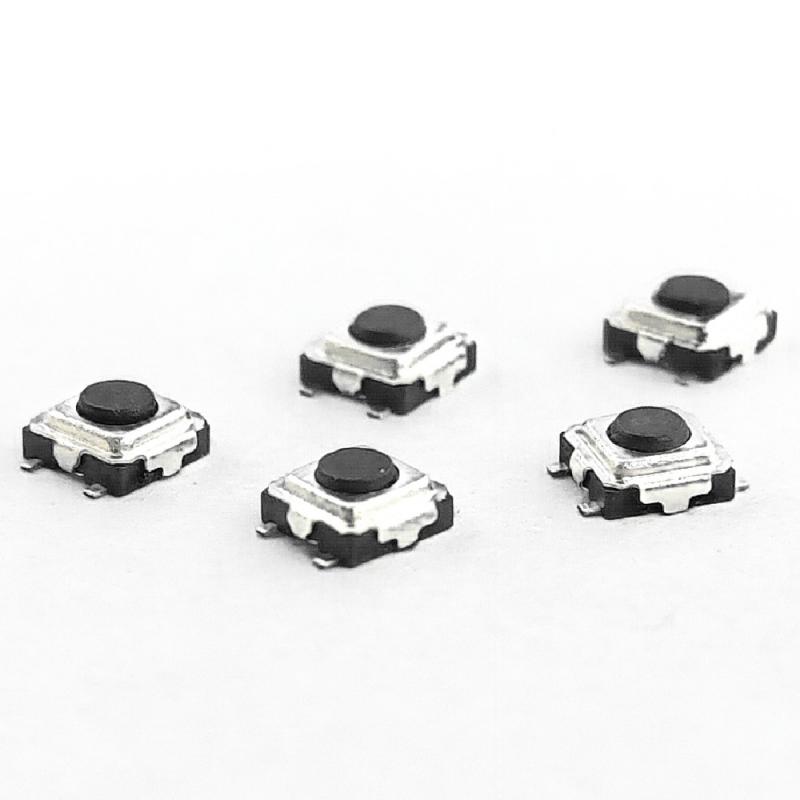

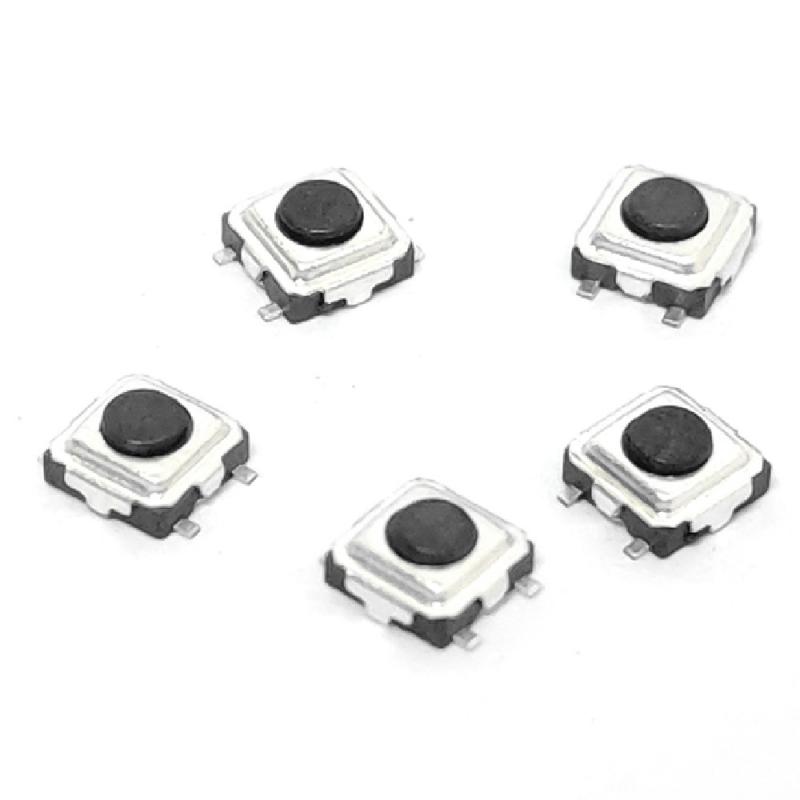

Ultramicro 3.4*3.4mm tact switch

There are 1.5mm,2mm and 2.5mm product height and different operating force for customer choose.

Brand:
Gangyuan
Item NO.:
KAN0341-0151B010-14
Order(MOQ):
4000
Payment:
100% T/T Before Production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black and White
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 Working Days For Payment

Outline (mm)
3.00mm x 3.00mm
Mounting Type
Surface Mount
lllumination
Non-llluminated
IP Rating
IP4X

Product Detail

DC12V 50mA 1.5mm height black mini button tact switch

SMD tact switch manufacturers

Parameter

China tact switch

Contact Resistance: ≤100mΩ

Insulation Resistance: ≥100MΩ

Operating Force: 160±50 gf

Full Travel: 0.15±0.1mm

Return Force: 20gf Min

Operating Temperature Range: -30℃～80℃

Operation Life: 100,000 cycles

Drawing

How to wire a tact switch

Tactile switches typically contain 4 pins. These pins are internally connected in 2 groups. The purpose of using 4 pins is to provide stability when mounting the device on a circuit board. When wiring, you technically only need to use 2 leads, but it's best practice to use all possible pins while being aware that the pairs are connected internally. The tactile switch also has only 2 pins.

Package

4000 products per reel

2 reels per bag, tightly sealed

10 bags of 20 reels per carton, 80,000 pieces in total
