Gangyuan Company was focusing on the research and development, production and sales of small tact switch components.
Brand:
GangyuanItem NO.:
KAN0444 seriesPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
Black and WhiteShipping Port:
WenZhou/ShenzhenLead Time：
7-14 Working Days For PaymentOutline (mm)
4.00mm x 2.90mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating

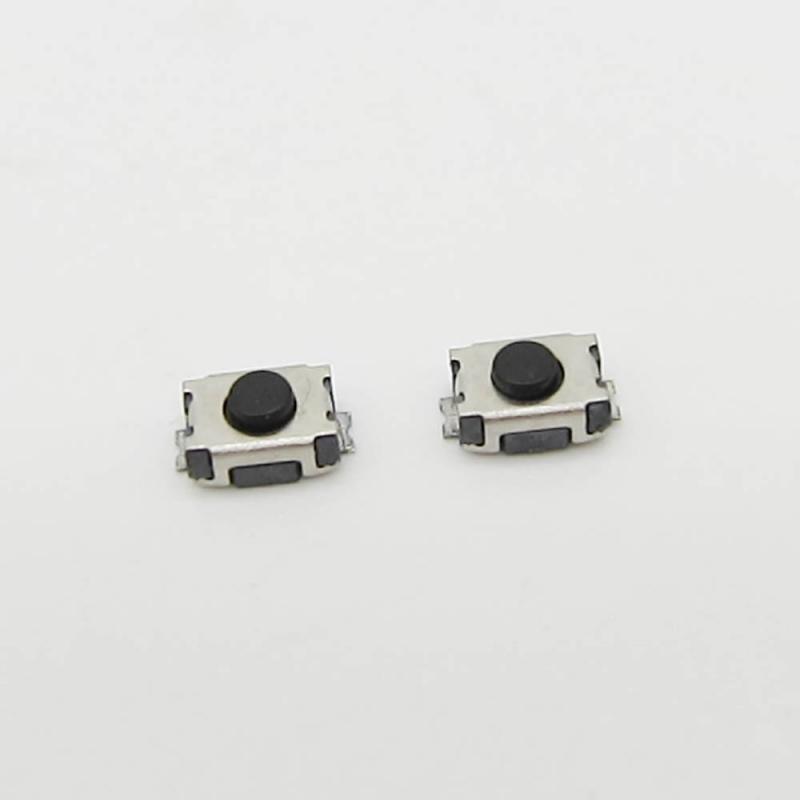

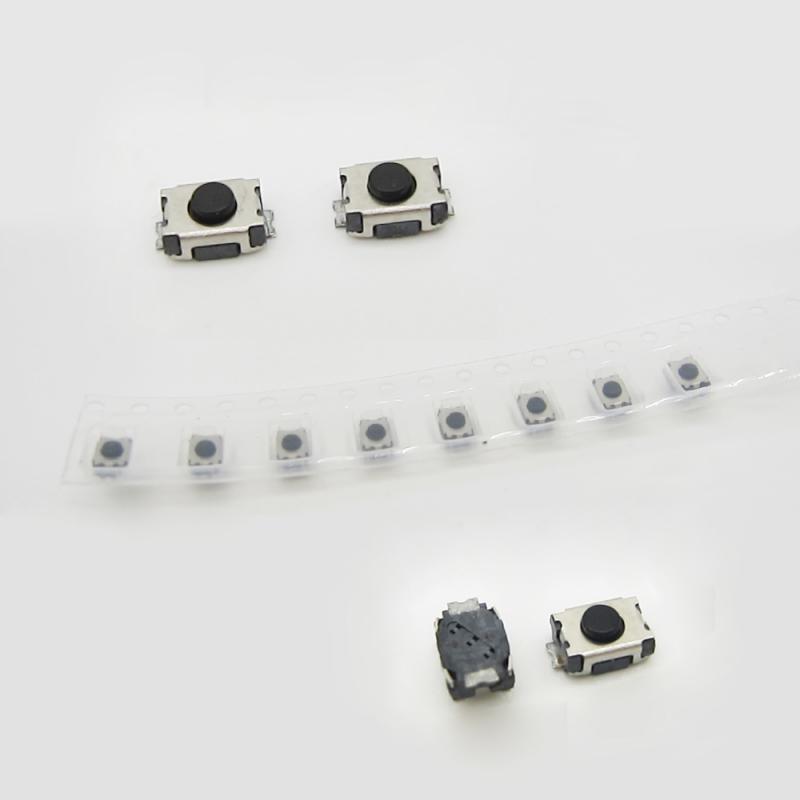

IP4XFactory SMD SMT Top Actuated tact switch
12V 50mA tact switch factory
Sensitive small and thin tact switch
Product Parameters
Max. Current: 50mA
Max. Voltage: DC12VOperation Stroke: 0.13±0.05mm
Life: 10000 cycles MinHeight: 1.7±0.1mm
Actuator: top
Drawing
The role of the ground pin
The longer of the three legs is grounded and can be called the ground pin, and the other two shorter legs are used to connect household appliances to the circuit, so they can be called conductive pins. If the metal shell of the household appliance is charged due to the damage of the insulator or other reasons, the ground pin will form a ground short-circuit current, so that the metal shell of the household appliance is grounded and discharged to the ground, so that people will not be electric shocked and play a role of safety protection.
The difference between tact switch and push button switch
1) Tact switch is a kind of click switch, that is to say, press to turn on and release to turn off. Simply put, it is to tap the switch that turns on instantly.
2) The push button switch refers to the switch that is pressed to turn on. In fact, the tact switch also adressed as push button switch. Push button switch usually means that a switch with a larger stroke can be self-locking and non-locking, highlighting the force of a press. The tact switch means short stroke, short contact, and light touch.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
