Home Switch Tactile switch 06 Series tact switch tactile switch 50mA 12V DC

tactile switch 50mA 12V DC

High quality 6x6mm 4pin tact switch  smd  tactile switch 50mA 12V DC

  • Brand:

    Gangyuan
  • Item NO.:

    KAN0611
  • Order(MOQ):

    50 pcs
  • Payment:

    T/T
  • Product Origin:

    zhejiang/shenzhen
  • Color:

    black and white
  • Shipping Port:

    ningbo or shenzhen
  • Lead Time:

    3 Working Days after payment
  • Outline (mm)

    6.00mm x 6.00mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail

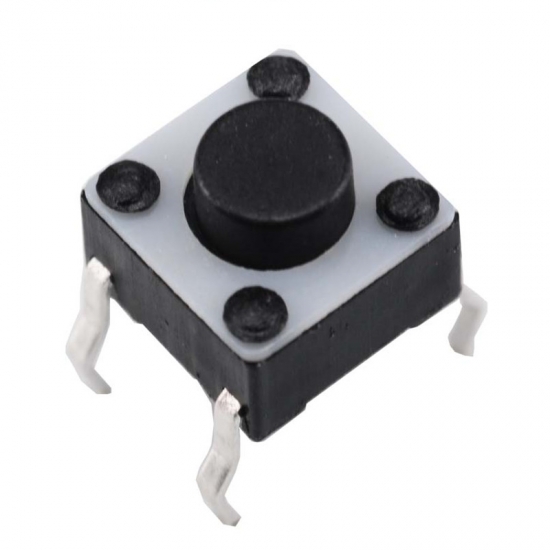

High quality 6x6mm 4pin tact switch  smd  tactile switch 50mA 12V DC


Basic Information

Model Name:

4pin 6x6 tactile switch

Model No.:

KAN0611 series

Dimension:

6x6xH (4.3-18)mm

Operating force:

100gf/160gf/260gf

Life cycles:

100,000/200,000 Cycles

Waterproof:

IP67 grade

Working tempreture:

 -20℃to+70℃

DC rating:

0.05A.12V DC

Insulation resistance:

100MΩ min.100V DC

Dielectric strength:

250V AC for 1 min

Contact resistance:

100m Ω max.

Full travel :

0.25±0.1mm



Passed test:

Salt Mist/Solderability/Resistance to

low temperature/Heat resistance/Change of temperature /Moisture resistance /Sulfuration Resistance etc

Certifications:   CE,ROHS, REACH, ENEC,
 Features:  High quality, durable using life

Dimension

4pin tact switch.jpg


smd tactile switch.jpg

Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;

act Tactile Switch
