Wenzhou Gangyuan Electronics Co.,Ltd.

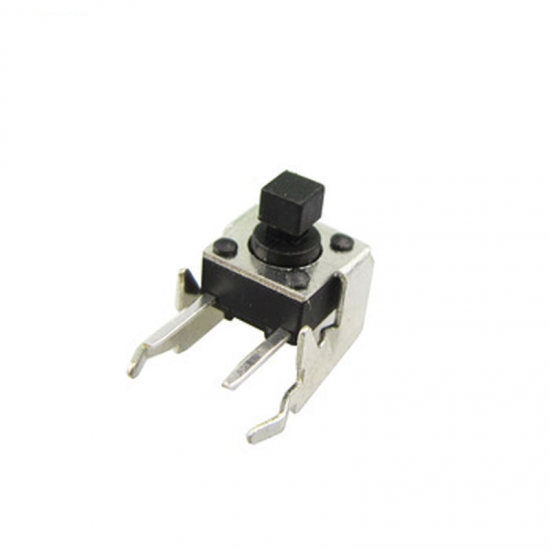

2 pin 6x6mm tact switch tactile push button micro switch
Brand:
GangyuanItem NO.:
KAN0630Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment
Product Description:
|
Brand
|
GANGYUAN (GYE)
|
|
Item NO.
|
KAN0630
|
|
Operating force
|
160gf/260gf±50gf
|
|
Rating
|
12V DC 50mA
|
|
Life cycles
|
60,000/80,000cycles
|
|
Travel
|
0.25mm±0.1mm
|
|
Contact resistance
|
50mΩ max
|
|
Insulation resistance
|
100mΩ min
|
|
Dielectric strength
|
250V AC for 1 min
|
Dimension:
Previous:
led push on push off tact switchNext:
2 pin tact switchIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
