tact switch micro push button 2-pin

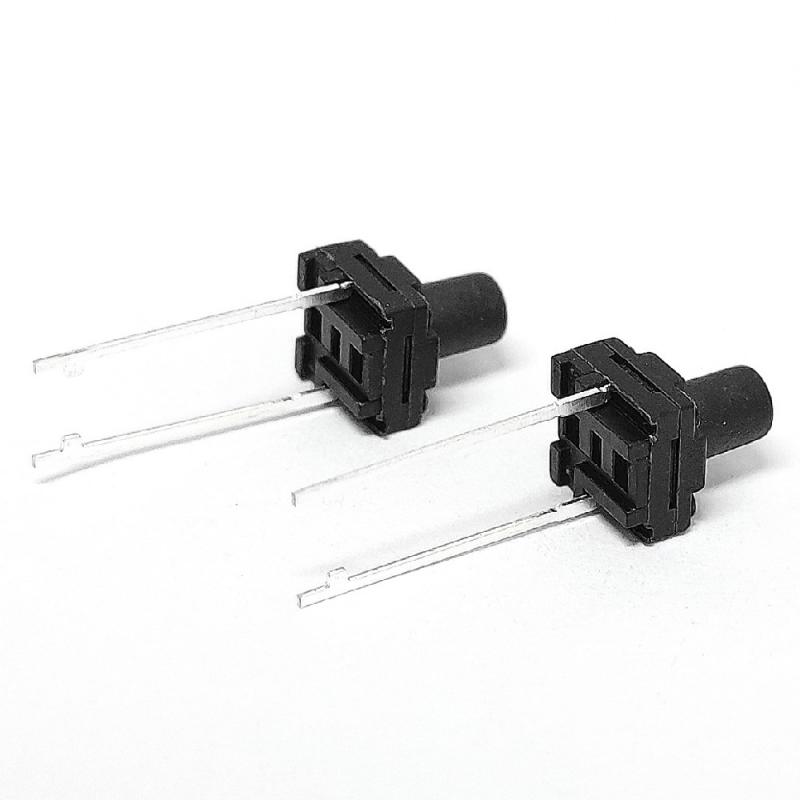

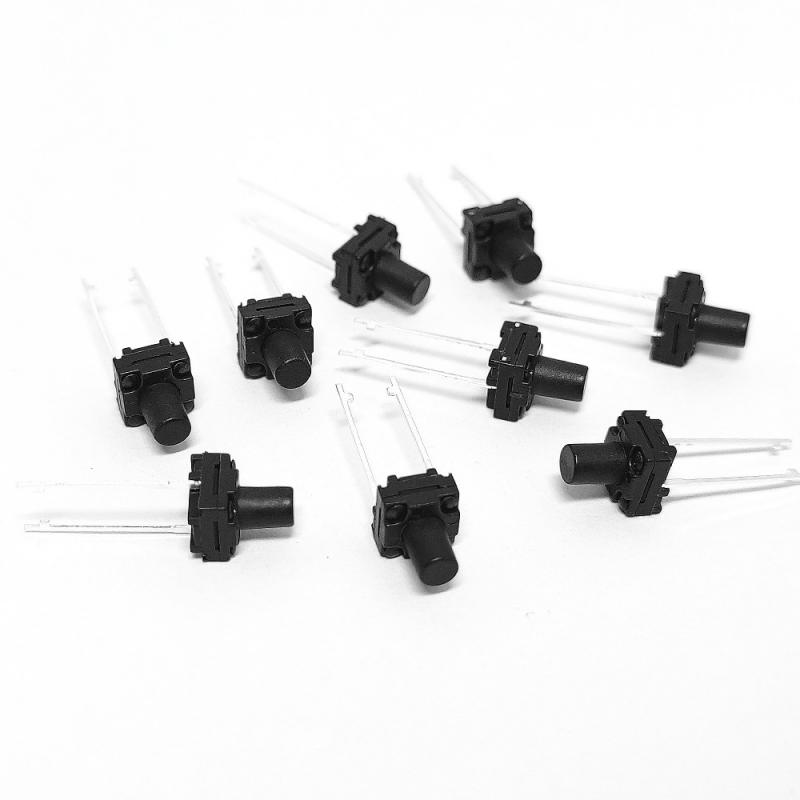

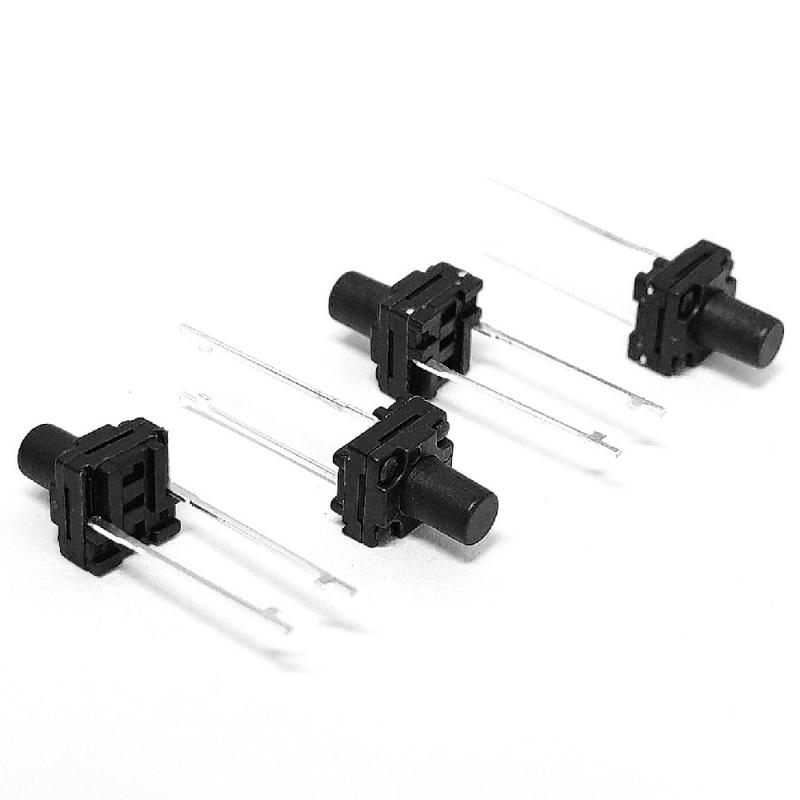

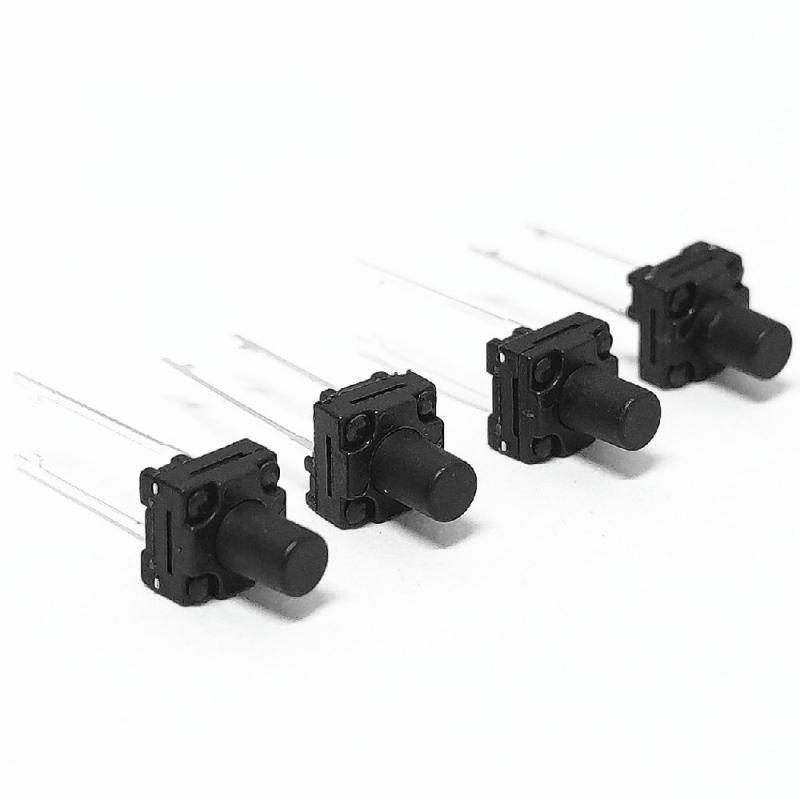

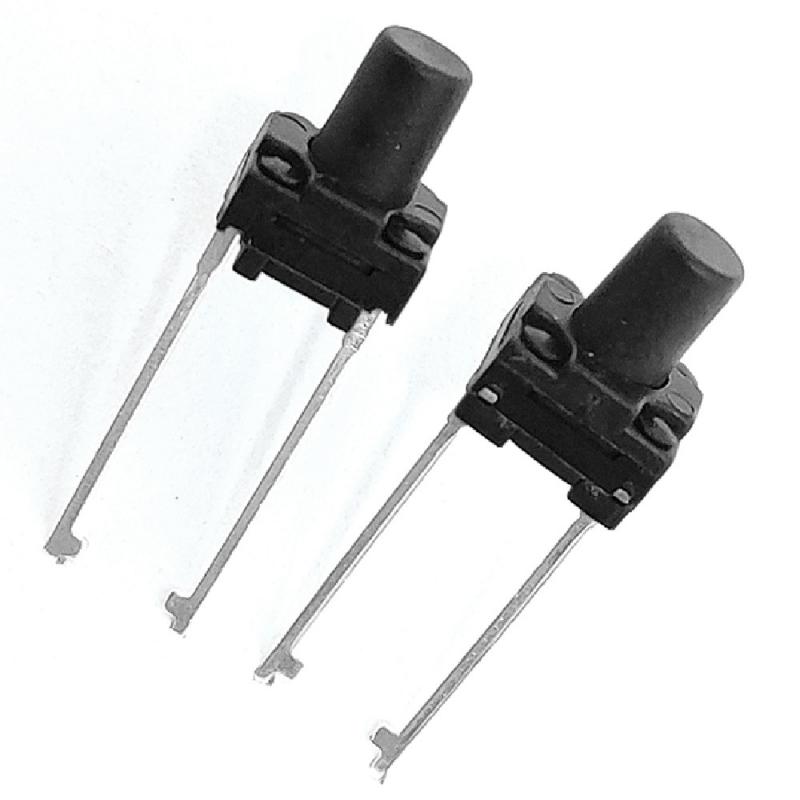

Waterproof Tact Switch 6X6mm Switch Tactile Long Middle 2 Pin DIP Soft Feeling Switch

Brand:
Gangyuan
Item NO.:
KAN0656-0801B1-C15
Order(MOQ):
1000
Payment:
100% T/T Before Production
Color:
black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7-14 working days for payment

Outline (mm)
6.00mm x 6.00mm
Mounting Type
Through Hole
lllumination
Non-llluminated
IP Rating
IP67

Product Detail

normally open tact switch ip67 2 terminal tactile switch

Feature

Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min)
Contact Resistance: ≤100mΩ
Insulation Resistance: ≥100MΩ
Operating Force: 160±50gf
Full Travel: 0.3±0.1mm
Life Time(mating cycles): 80,000 cycles
Height: 8mm

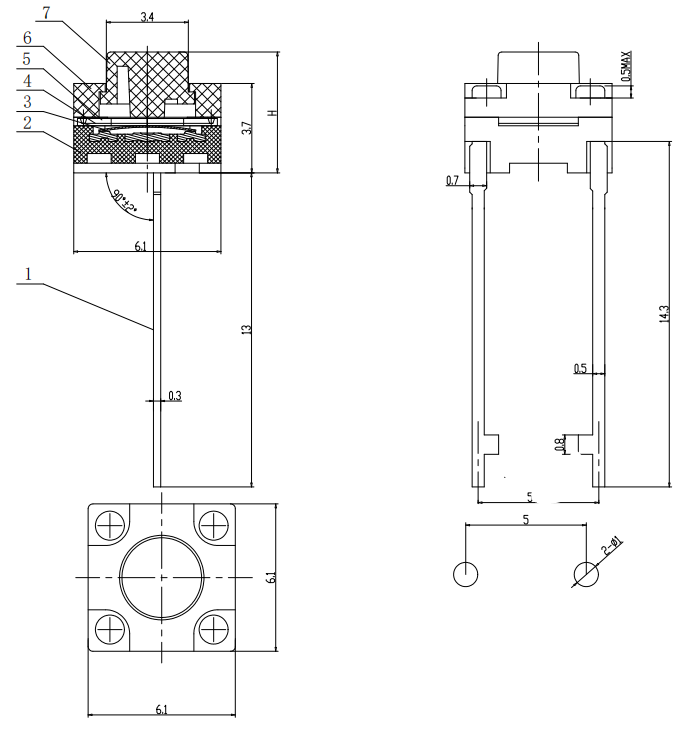

Tactile switch dimensions

Related

Waterproof tactile switches factory

6*6mm smd tact switch 6*6 dip tact switch 8*8 dip tact switch 8*8 long pin tact switch 7.2*7.2 tact switch

What is a tack switch?

Definition. These small sized switches are placed on PCBs and are used to close an electrical circuit when the button is pressed by a person.

When the button is pressed, the switches turn ON and when the button is released, the switches turn OFF. A tactile switch is a switch whose

operation is perceptible by touch.
