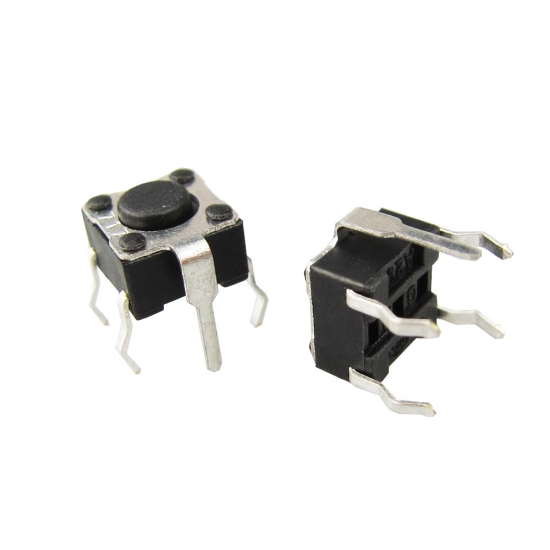

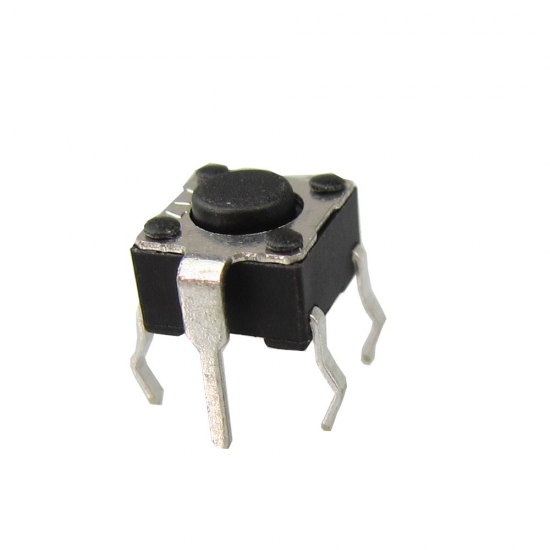

Tact Switch 6×6 Metal Push Button Horizotal Tact Switch

KAN0621: DC12v 50mA, 6*6mm. dip horizontal tactile switch.

Brand:
Gangyuan
Item NO.:
KAN0621
Order(MOQ):
1000
Payment:
T/T, Paypal full payment before produce
Product Origin:
China
Color:
Black
Shipping Port:
Ningbo/ Shenzhen
Lead Time：
5-7 working days

Product Detail

Tact Switch 6×6 Metal Push Button Horizotal Tact Switch

Basic Information

P/N	KAN0621
Dimension	6×6×H/H=4.3mm-21mm
Rating current	12VDC 50mA
Operating force	100gf/160gf/260gf
Life cycles	100,000/ 200,000/ 500,000/ 1,000,000 cycles
Travel	0.25±0.1mm

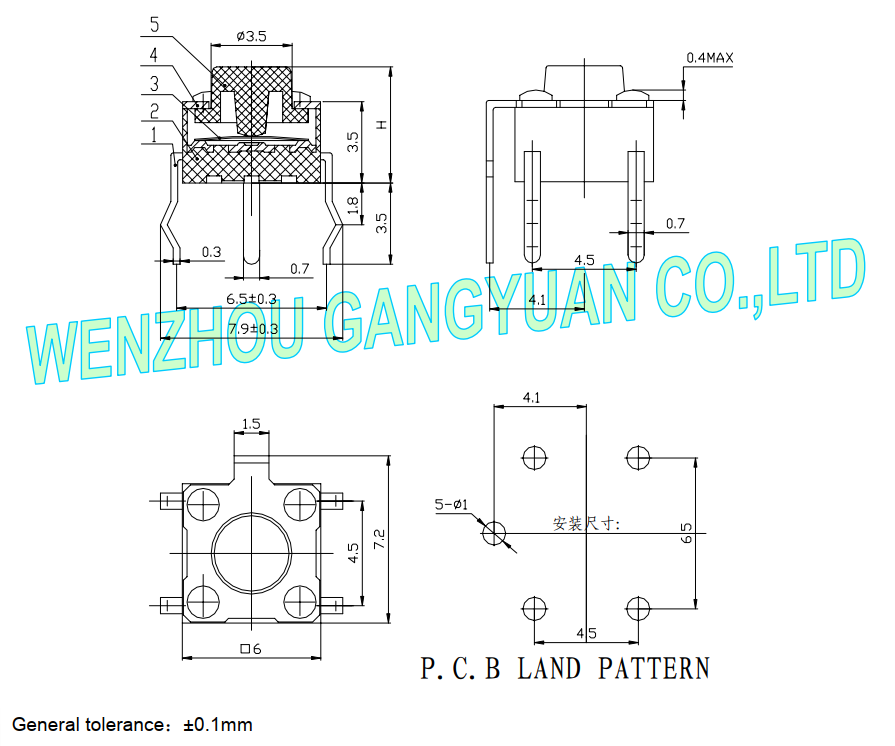

Dimension

Tact Switch Using Attention

1. Please be cautions not to give excessive static load or shock to switches.
2. Please be careful not to pile up P.W.B. after switches were soldered. Preservation under high temperature and high humidity or corrosive gas should be avoided Especially. When you need to preserve for a long period, do not open the carton.

Our advantage

1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.

Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
