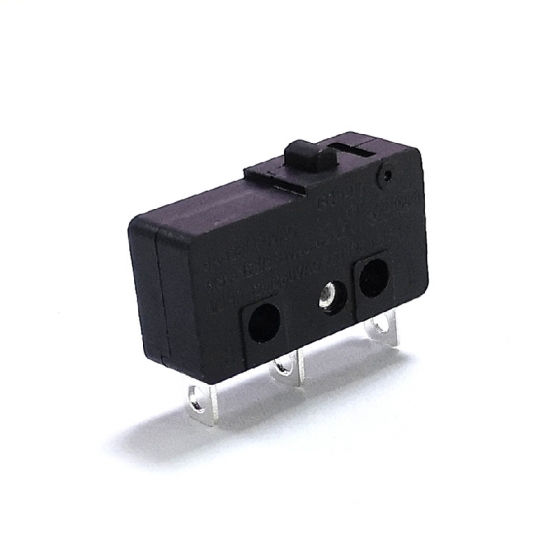

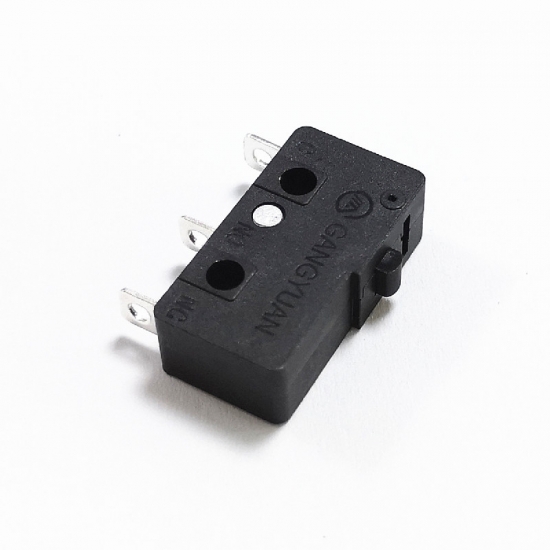

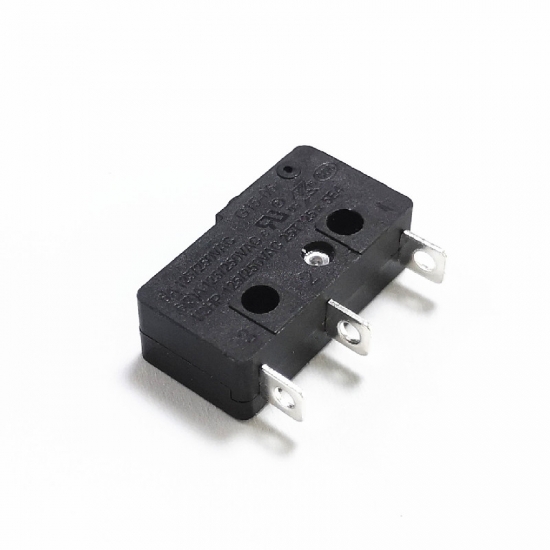

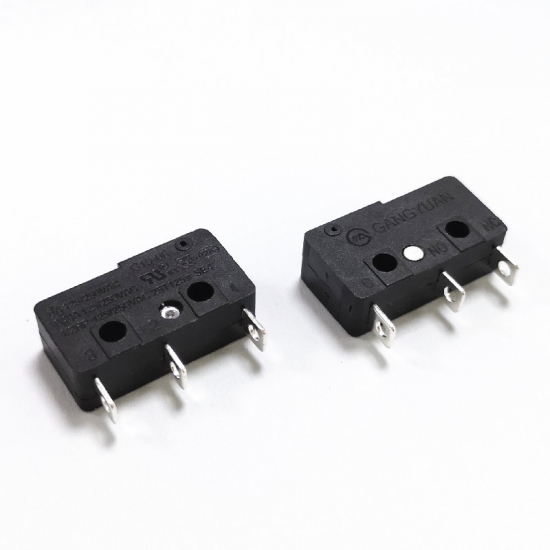

T125 5e4 SPDT micro switch

As its name, the mini push button micro switch uses a very small force switch. It is a kind of switch in which external mechanical force acts on the movable reed through the transmission element, so that the fixed contact and the movable contact at the end are quickly connected or disconnected.

Product Description

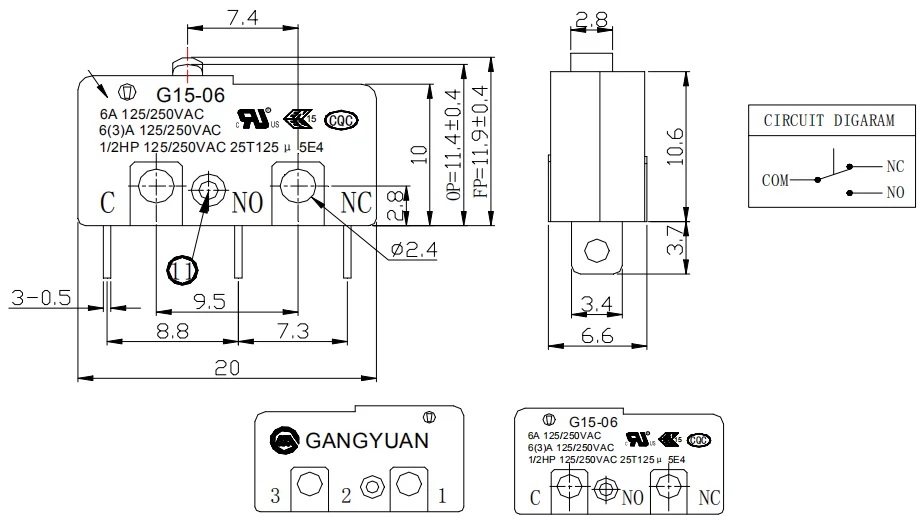

Drawing

Working principle

The external mechanical force acts on the reed through the transmission element (press pin, button, lever, roller, etc.). When the action reed moves to the critical point, it will immediately produce an action, causing the action contact to quickly open or close at the end of the action reed and the fixed contact.

When the force on the transmission element is eliminated, the acting reed will produce a reverse force. When the reverse stroke of the transmission element reaches the critical point of the action of the reed, the reverse action is completed immediately.

The contact distance of the touch tactile micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid.

Application of micro switch

1. Electronic equipment, instrumentation, mining, power systems, household electrical equipment, and military fields such as aerospace, aviation, missiles, and tanks.
2. Computer mouse, automotive electronics, communication equipment, military products, as well as testing instruments, gas water heaters, gas stoves, small household appliances, microwave ovens, rice cookers, float equipment, medical equipment, building automation, power tools and general electrical and Radio equipment, 24-hour timer.

FAQ

1. Q: Are you manufacture/ factory? Location?

     A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.

2. Q: Can I get free sample before placing an order ? MOQ?

    A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.

3. Q: What about the delivery time?

     A: Stable delivery. 7-15 working days.

4. Q: What about terms of payment ?

    A: T/T, L/C, Paypal, Cash etc.

5. Q: Can you customize products according to the design drawing?

    A: We have independent R&D center in Shezhen, ODM/OME project is welcome.

6.Q: Do you test all your goods before delivery?

   A: Yes, we have 100% test before delivery.
