Wenzhou Gangyuan Electronics Co.,Ltd.

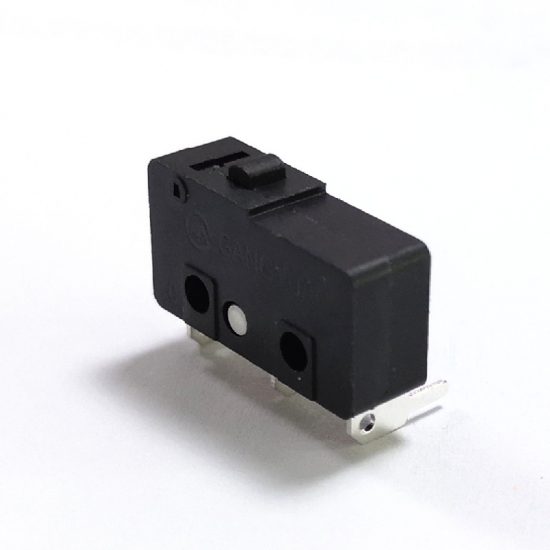

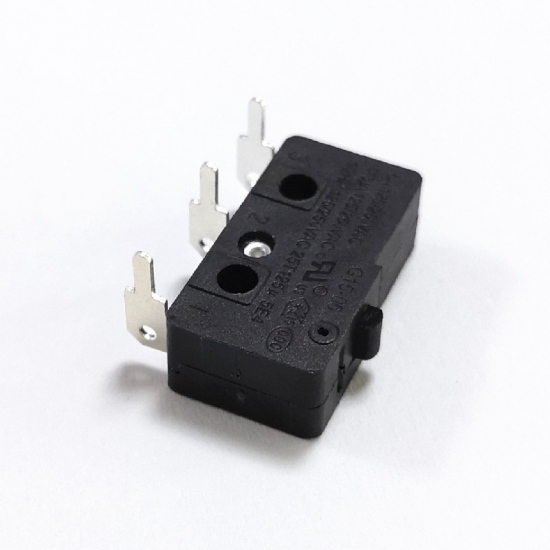

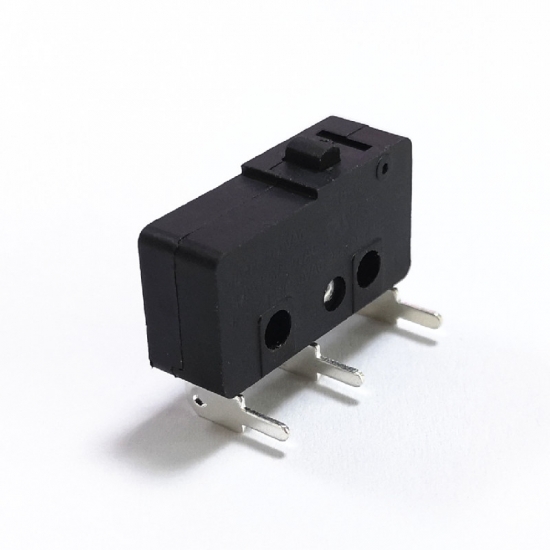

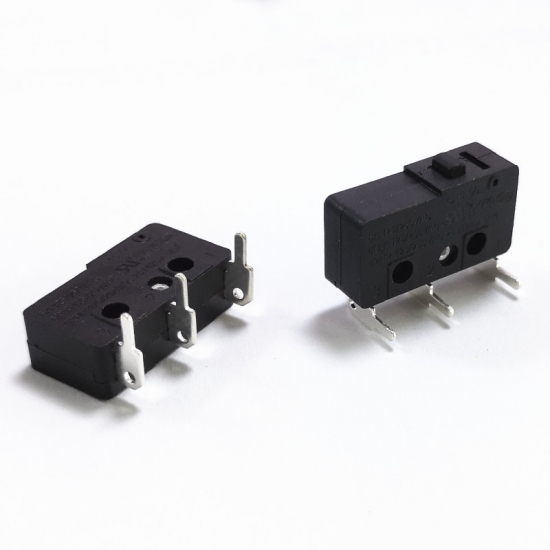

The micro switch is right angled terminal,SPDT,No lever.
Brand:
GangyuanItem NO.:
G15-06DM-150-74Order(MOQ):
1000Payment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X
Micro switch parameter
Type: SPDT Micro Switch
Operating force: 150±50gf
Rating: 6A 125/250VAC
Contact resistance:≤100mΩ
Insulation resistance: ≥100MΩ
Life: 10000 cycles
Soldering temperature: 260±5℃ 5s

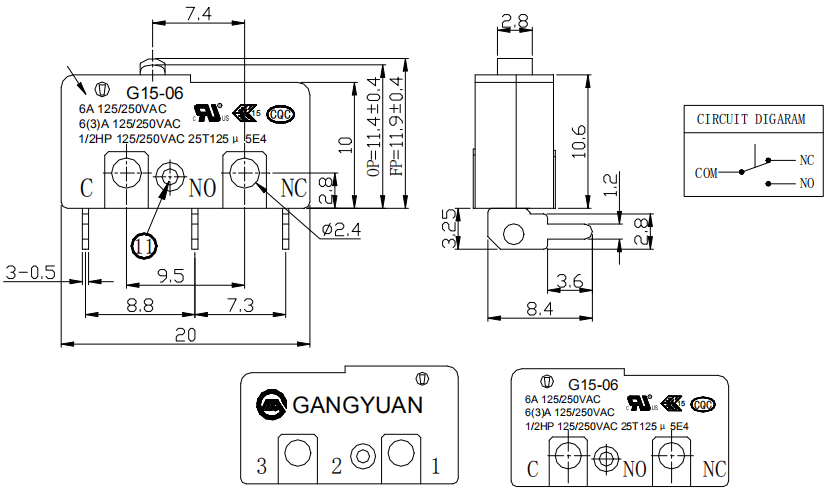

Dimension
what is a micro switch ?
A micro switch is a contact mechanism that has a small contact interval and a snap-action mechanism, and uses a specified stroke and a specified force to switch action. It is covered by a shell and has a drive rod outside of it. Because the contact distance of the switch is relatively small. Small, hence the name micro switch, also called sensitive switch.
Application
Micro switches are used for automatic control and safety protection in equipment that requires frequent circuit switching. They are widely used in electronic equipment, instrumentation, mining, power systems, household appliances, electrical equipment, as well as aerospace, aviation, ships, missiles, and Military areas such as tanks
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, switch manufacturer. three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About tact switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
