Home Switch Micro switch G10 Series t125 5e4 micro switch

t125 5e4 micro switch

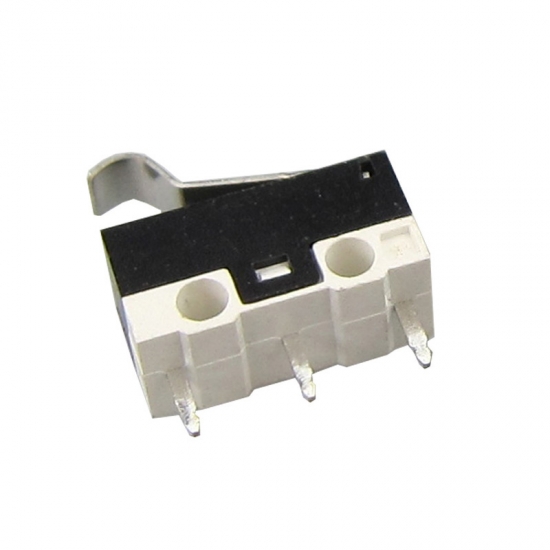

3 pin short lever micro switch  t125 5e4 micro switch

  • Brand:

    Gangyuan
  • Item NO.:

    DM1-05PW-30-3
  • Order(MOQ):

    1000pcs
  • Payment:

    100% T/T Before Production
  • Product Origin:

    Zhejiang, China (Mainland)
  • Color:

    black and white
  • Shipping Port:

    Ningbo/Shenzhen
  • Lead Time:

    7 Working Days after payment
  • Outline (mm)

    12.80mm x 6.60mm
  • Mounting Type

    Through Hole
  • lllumination

    Non-llluminated
  • IP Rating

    IP4X
  • Product Detail


3 pin short lever micro switch t125 5e4 micro switch



Basic Information


Model Name:

Micro Switch

Model No.:

DM1-05PW-30-3

Lever length

0.4mm

Operating Temperature

-20℃~70℃

Voltage Rating

125V AC

Current Rating

1A

Operation Force

30±15gf

Mechanical life

50,000 cycles



Dimension



Tact Switch Using Attention

1.Please consult us when considering to wash tact switches

2.Please don’t immerse soldering flux into tact switches

3Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board

4.The second welding should be done after switches return to normal temperature



Our advantage

1. Excellent R&D team, clients design requests are welcome.

2. Experience of more then two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.



Application

Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
