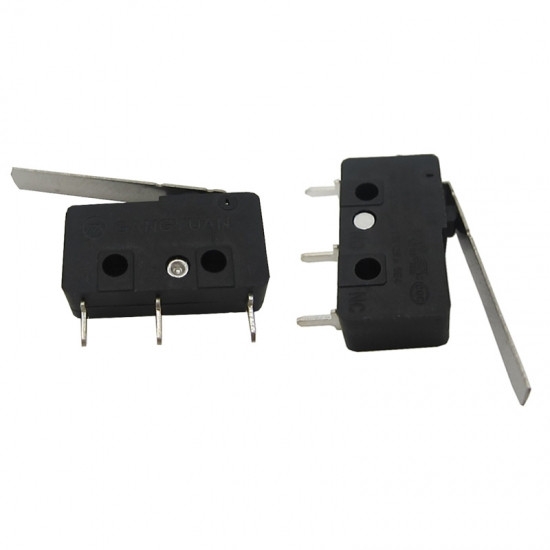

UL approved long lever SPDT snap action micro switch
Brand:
GangyuanItem NO.:
G15-06PM03-40-13Order(MOQ):
100pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7-14 working days for paymentOutline (mm)
20.00mm x 10.00mmMounting Type
Through Holelllumination
Non-llluminatedIP Rating
IP4X
UL approved long lever SPDT snap action micro switch
Basic Information
| P/N | G15-06PM03-40-13 |
| Lever length | 24.5mm or at your request |
| Rating | 125/250VAC 6A |
| Operating Force | 40±20gf |
| Life Time | 50,000 Cycles |
| Operating Temperature Range | -25℃~+85℃ |
| Dielectric Withstanding Voltage | 1500V AC 1Min |
| Certificate | UL,ENEC,CQC |
| Circuit Code | SPDT |
| Insulation Resistance | ≥100MΩ |
| Contact Resistance | ≤100mΩ |
| Soldering Temperature |
260±5℃ 5s |
Dimension
Product features
1. Type: G15 Micro switch
2. Circuit Code: SPDT - PCB type.
3. Lever Type: 24.5mm Long lever （Handle length can be customized）
4. Electrical Rating: 6A 125/250vac
5. Terminal length: 4.3mm
Our advantage
1. The factory has more than 20 years of experience in the field of switch manufacturing.
2. Variety of categories. More than 2000 models.
3. Good quality. Using raw materials imported from Japan and South Korea.
More than 85% of product automated manufacturing coverage.
4. Excellent R&D team, clients design requests are welcome.
5. Two thousands invention patents and 47 utility model patents.
6. Assembly process in 100,000 grade dust-free workshop.
7. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
8. After-sales service team. Global radiation multiple service outlets.
Application
Micro switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
FAQ
1. Q: Are you manufacture/ factory? Location?
A: Yes, three palnts located in Shenzhen , Zhejiang, Hubei province.
2. Q: Can I get free sample before placing an order ? MOQ?
A: Yes, free samples will get ready within 3~5 days. About micro switch, MOQ is 1,000pcs.
3. Q: What about the delivery time?
A: Stable delivery. 7-15 working days.
4. Q: What about terms of payment ?
A: T/T, L/C, Paypal, Cash etc.
5. Q: Can you customize products according to the design drawing?
A: We have independent R&D center in Shezhen, ODM/OME project is welcome.
6.Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
