Wenzhou Gangyuan Electronics Co.,Ltd.

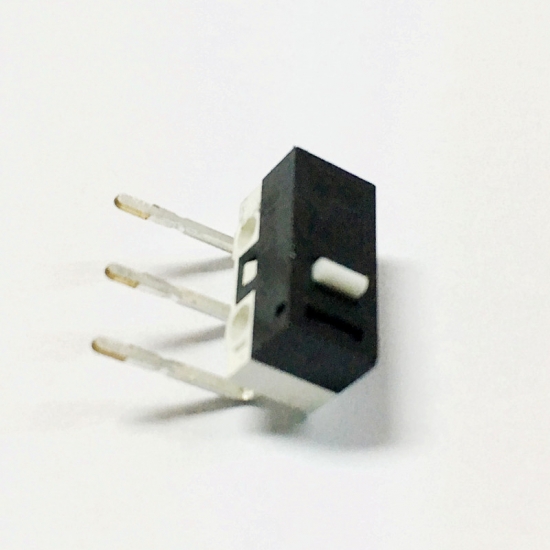

3 pin 6A 250V AC right angle miniature snap action joystick micros witch
Brand:
GangyuanItem NO.:
G10-3-00R-150-15Order(MOQ):
1pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
black and whiteShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
12.80mm x 6.60mmMounting Type
Right Anglelllumination
Non-llluminatedIP Rating
IP4X
3 pin 6A 250V AC right angle miniature snap action joystick micros witch
Basic Information
|
Product name |
micro switch |
|
Operating temperature |
-20℃~70℃ |
|
Operating Relative Humidity |
≤85℃ |
|
Dielectric withstanding Voltage |
1000V AC 1Min |
|
Voltage Rating |
125/250V AC |
|
Voltage Rating |
4A/ 30VDC |
|
Operation force |
≤150gf |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
