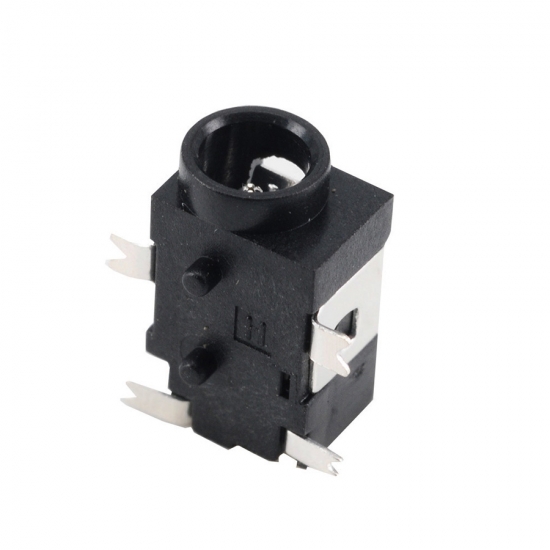

5 pin small DC female power jack SMT power jack connector
Brand:
GangyuanItem NO.:
DC-0504Order(MOQ):
50 pcsPayment:
T/TProduct Origin:
zhejiang/shenzhenColor:
blackShipping Port:
ningbo or shenzhenLead Time：
3 Working Days after payment
5 pin small DC female power jack SMT power jack connector
Basic Information
|
Model Name: |
DC Power SMT Jack, |
|
Model No.: |
DC-0504 |
|
Dimension: |
11.4X5.4mm |
|
Operation life: |
5000cycles |
|
Soldering: |
High temperature reflow soldering |
|
Operating force: |
3~20N |
|
Insulation resistance: |
≥100MΩ 100V DC |
|
Application: |
Audio and Video |
|
Features: |
Surface mount(SMT), Shielded, Internal switch |
|
Certifications: |
UL CE ROHS ISO9001 |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
Previous:
Micro usb jackNext:
4 pin DC connector DC power JackIf you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
