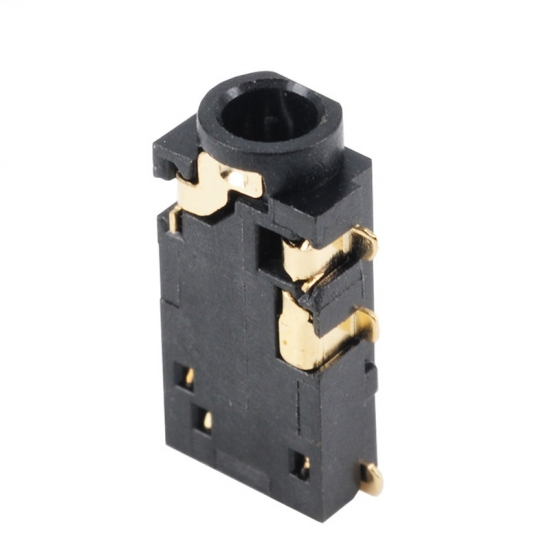

Audio dc Power Jack Female Connectors

2.5mm Waterproof Headset Phone Jackwith 3 to 30N Operation

Item NO.:
PJ-2537
Order(MOQ):
1000pcs
Payment:
100% T/T before production
Product Origin:
Zhejiang, China (Mainland)
Color:
Black
Shipping Port:
Ningbo/Shenzhen
Lead Time：
7 Working Days after payment

Product Detail

Product Description

•Product name:SMT DC Socket

• Operation force:3~20N

• Operation temperature:-20-70℃

• Contact Resistance:≤0.05Ω

• Voltage Withstand: AC500V(50Hz)/min

• Insulation resistance of adjacent opened terminals shall not be <50MΩ when measured with 500V resistance meter

• Connector shall withstand 500V (RMS) between adjacent opened terminal for one minute

• Contact resistance of normally closed terminals shall not exceed 0.03Ω when measured at 1A current by voltage drop method

• After exposed at temperature of 40 ±2℃, insulation resistance shall not be <30MΩ

• At relative humidity of 90% to 95% for 48 hours, insulation resistance shall not be <30MΩ

• Dried at room temperature for 30 minutes, insulation resistance shall not be <30MΩ

• Connector shall withstand 5,000 cycles of insertions and withdrawal with testing plug contact resistance shall not exceed 0.1Ω

• A wide range of A/V connectors are available

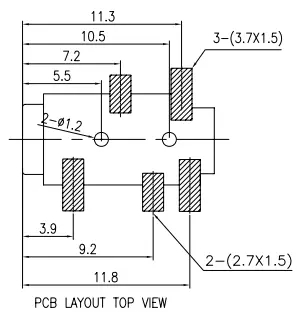

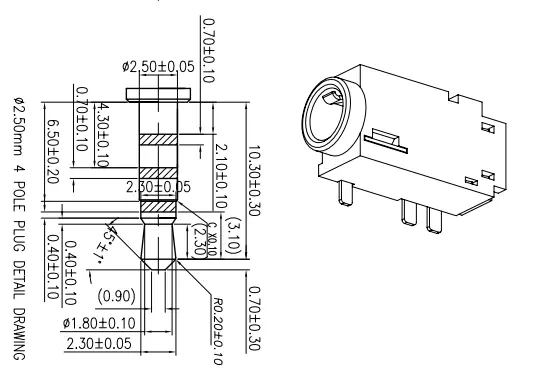

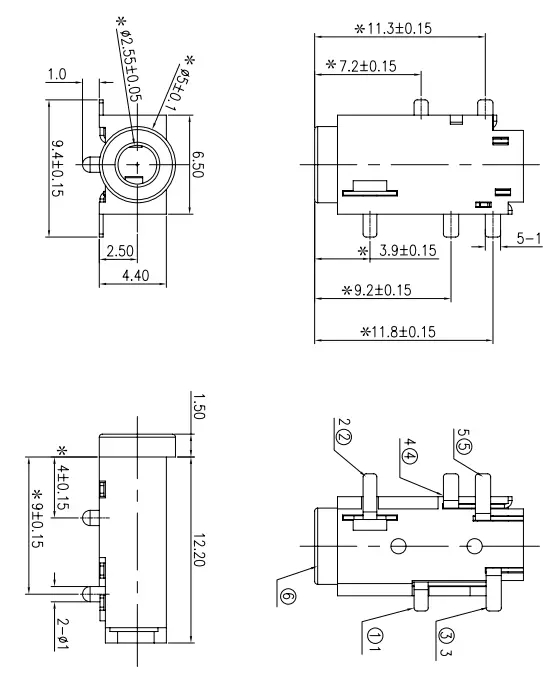

Dimension:
