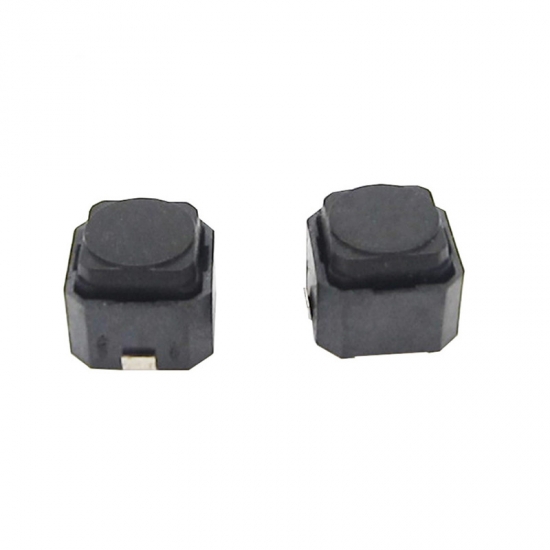

High quality smd tactile switch car air conditioner switch car switch panel automotive
Brand:
GangyuanItem NO.:
KTD0621-0501BOrder(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
blackShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after paymentOutline (mm)
6.00mm x 6.00mmMounting Type
Surface Mountlllumination
Non-llluminatedIP Rating
IP4X
High quality smd tactile switch car air conditioner switch car switch panel automotive
waterproof IP65, use for car switch car air conditioner pannel automotive switch.
Basic Information
|
Model Name: |
Car air conditoner switch |
|
Model No.: |
KTD0621-0501B |
|
Dimension: |
6x6MM |
|
Operating force: |
160gf/230gf/300gf +-50gf |
|
Life cycles: |
100,000 Cycles |
|
Working tempreture: |
-20℃to+70℃ |
|
DC rating: |
10mA 5VDC |
|
Insulation resistance: |
100MΩ min.100V DC |
|
Dielectric strength: |
250V AC for 1 min |
|
Contact resistance: |
100m Ω max. |
|
Full travel : |
0.25±0.1mm |
|
Features: |
Waterproof: IP65 grade |
Dimension
Tact Switch Using Attention
1．Please consult us when considering to wash tact switches2．Please don’t immerse soldering flux into tact switches
3．Please don’t paint soldering flux on the surface of switch terminals and other parts in PCB board
4．The second welding should be done after switches return to normal temperature
Our advantage
1. Excellent R&D team, clients design requests are welcome.
2. Experience of more then
two decades in switch manufacturing.
3. Two thousands invention patents and 47 utility model patents.
4. Assembly process in 100,000 grade dust-free workshop.
5. Owing TS16949,ISO9001,ISO14001,OHSA18001 system.
Application
Tactile switch use for: Mini type portable equipment, PCB board, Digital products, Kitchen appliances, Communication products, white home appliance, black home appliance, small home appliance, Security products, Toys, Computers, body building apparatus, medical appliance;
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
