Wenzhou Gangyuan Electronics Co.,Ltd.

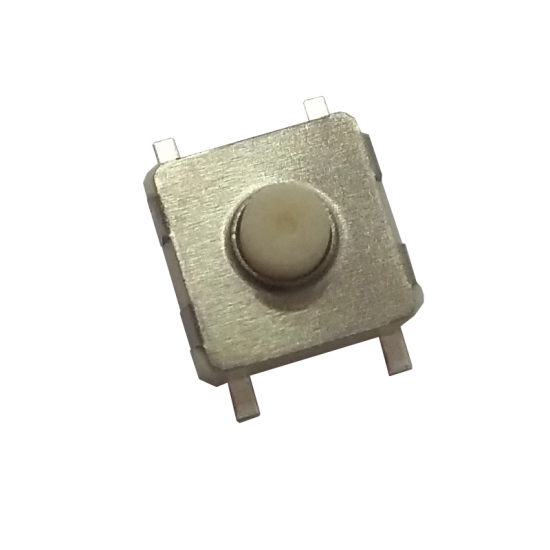

4 pin smd 6X6mm SMD tact switch cap with IP67
Brand:
GangyuanItem NO.:
DC06Order(MOQ):
1000pcsPayment:
100% T/T Before ProductionProduct Origin:
Zhejiang, China (Mainland)Color:
silverShipping Port:
Ningbo/ShenzhenLead Time：
7 Working Days after payment4 pin smd 6X6mm SMD tact switch cap with IP67
product description
Tact Switch Specification:
|
Contact Rating |
Ratings: DC 12V 50mA(Max) DC 1V 10μA (Min) |
|
Contact Resistance |
≤100mΩ |
|
Insulation Resistance |
≥100MΩ |
|
Operating Force |
1 st: 100 ± 40 gf |
|
Travel |
1 st: 0.3 ± 0.1 mm |
| Operating Temperature Range |
-20 to+70℃(normal humidity, normal press.) |
|
Storage Temperature Range |
-40 to+85℃(normal humidity, normal press.) |
|
Operation life |
100,000 cycles
|
|
Heat resistance |
80±2℃, 96h |
|
Sulfuration resistance |
40±2℃, 72h |
|
Free samples range |
30~50pcs |
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
KAN0656: DC 12v 50mA, smd, water resistance type tact switch.
KAN0616: Dip switch, water resistance IP67, 6*6mm mini tact switch.
KAN0611: DC 12v 50mA, 6*6mm, 4 pins tact switch.
6x5.3mm Small 2 Pin Tactile Button Switch long terminal Tact Switch.
12V IP67 waterproof switch push button tact switch china, 4pin dip tact switch, 100,000/200,000 cycles for optional,use for Kitchen appliances, smart toilet covers. Small appliances, white electricity, black electricity require a variety of operational switches for waterproof construction.
This kind of switch is silent, often used in car industry.
Item: KAN0641 Size: 6*6*H (4.3-18mm) Rating: 12VDC 50mA Operating life: 60,000/ 80,000/ 100,000 cycles Operating force: 100gf, 160gf, 260gf MOQ: 1000
KAN0673: 6×6mm, side horizontal type tact switch.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
