Horizontal Actuator Type A low-profile slide switch with 1.1mm thickness
Brand:
GangyuanItem NO.:
MSK12C01-TG15-LB1-ROrder(MOQ):
3000Payment:
100% before productionProduct Origin:
WenzhouColor:
BlackShipping Port:
Ningbo or ShenzhenLead Time：
7-15 working dayslllumination
NoLength
6.1Width
3IP Rating
No IP RatingSeries
Mounting Type
Surface MountActuator Height:
1.5

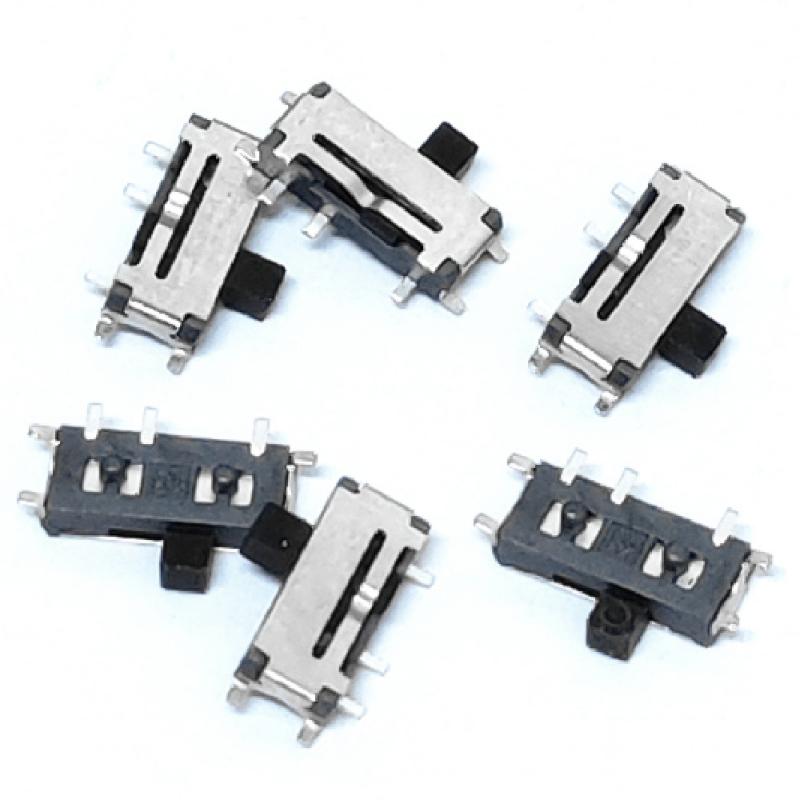

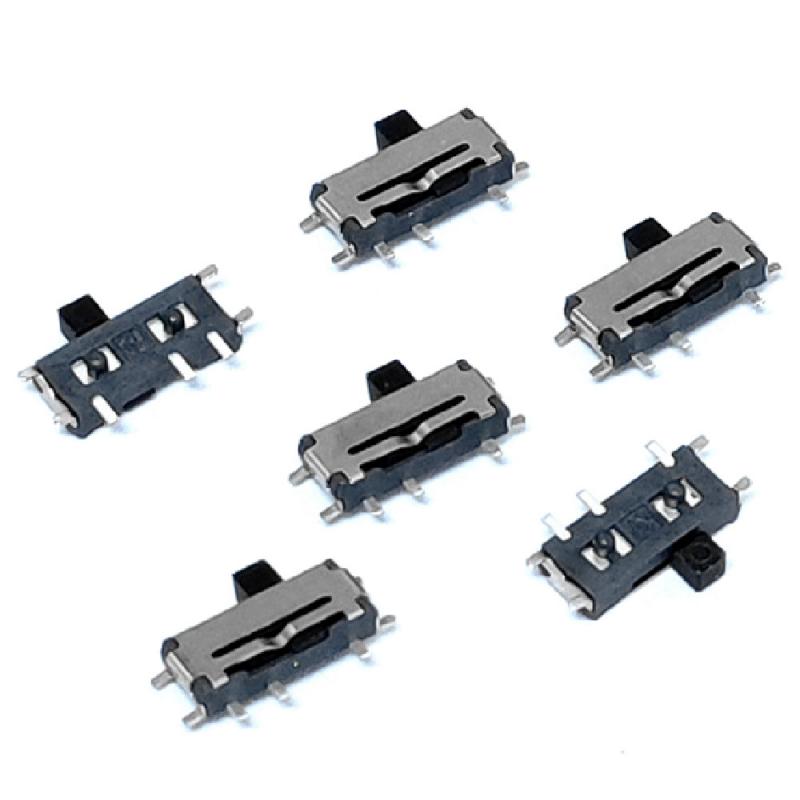

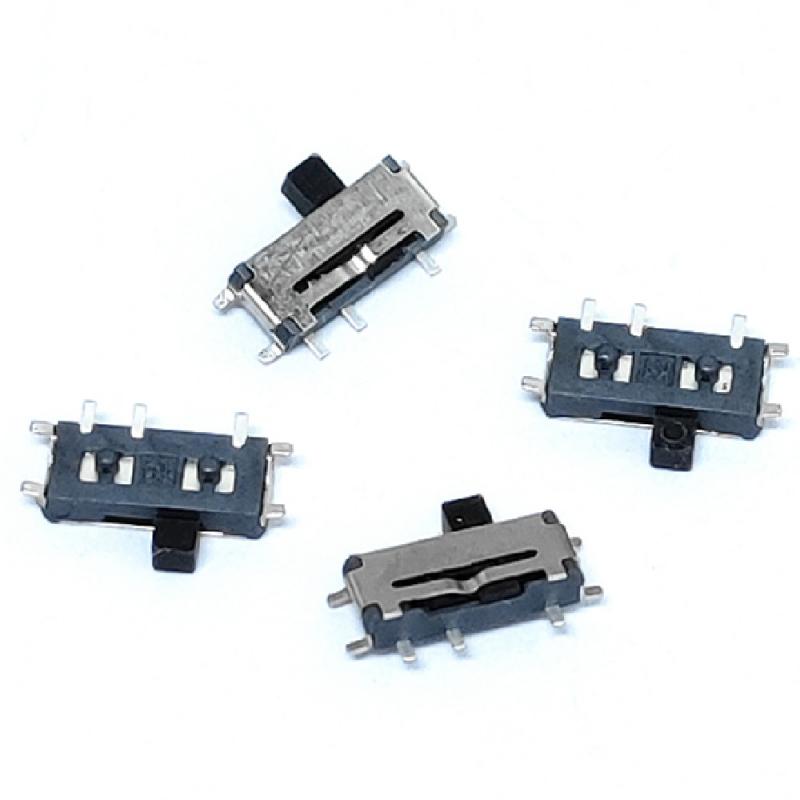

Miniature toggle switch surface mount SPDT 2 position micro mini Slide Switch
Typical Specifications
Ratings: DC 12V 100mA
Operating Force: 170±80gf
Full Travel: 1.5±0.2mm
Operation life: 10,000 cycles
Slide switch knob: 1.5mm
Operating Temperature Range: -20℃～70℃

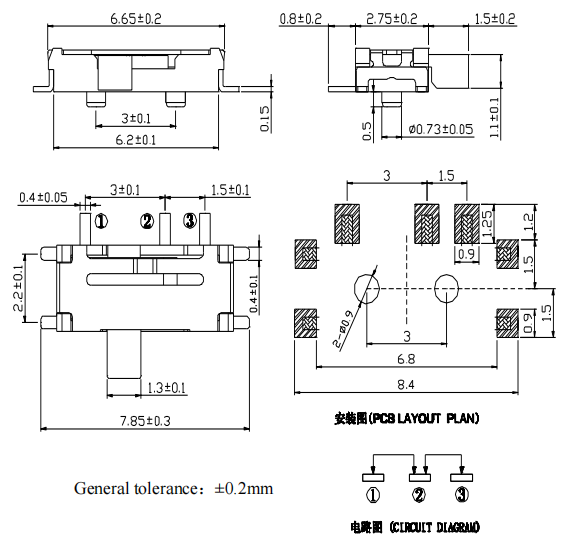

Slide switch schematic
Horizontal Actuator Slide switch Type
Features/Benefits
- Small size: The ultra-small toggle switch is compact and suitable for the design of electronic products with limited space
- High reliability: It has stable practicality, high durability and long life under normal use.
- Easy to use: It is easy to operate and can switch states with just a slight toggle, which is easy for different user groups to use.
- Stable electrical performance: When tested under a small current, the contact resistance is low, the insulation resistance is high, and the voltage resistance is good,
ensuring stable operation of the circuit.
- Good mechanical performance: The action force is moderate, the terminal strength is high, and it can withstand certain mechanical stress without damage.

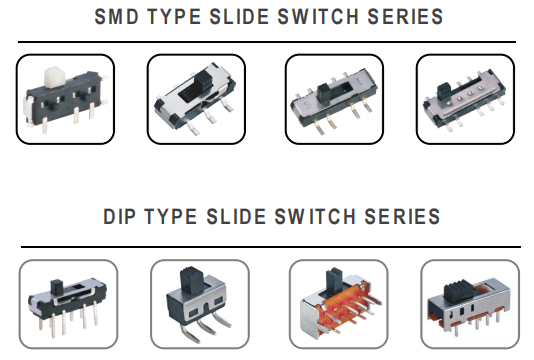

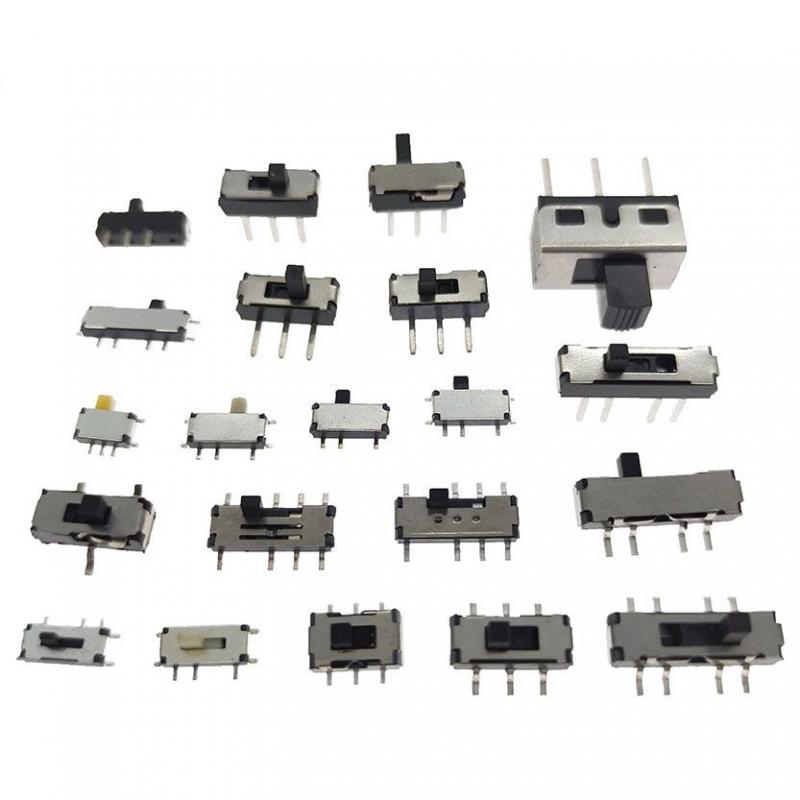

More Slide switch types
• Surface and thru hole mounting • SPDT, DPDT, DP3T models • RoHS compliant • Sub-Miniature Slide Switches
Typical Applications
• Telecommunication products
• Computer peripherals
• Thermostat select switch
• Instrumentation
• Medical
If you want to purchase switch products and need to know quotations, parameters or solutions, please leave us a message, and we will give you a satisfactory reply within 2 hours.
Categories
Easy Structure, Mini Body, 3 Terminal, Vertical Handle,1 Pole 3 Position, Sliding Knob Actuator.
Horizontal slide switch, knob of wave or V shape, 1 pole 3 position, PCB mounting.
SMD type slide switch, miniature body, easily handle, surface mount design terminal with 2 positions, workable for reel packing.
Side operated white knob, one pole two throw, PCB mounting design, 3 terminal, adoptable in reel packing.
Side operated knob, 2P3T type, 8 termninals, Mini shape for PCB, also a great components for DIY.
2P3T Mini Slide Switches for Audio Products,Easy Structure, Mini Body, 8 Terminal, Vertical Handle,2 Pole 2 Position, Sliding Knob Actuator.
MSK-01-B: 7.1mmX3.5mm, 180gf, 2P2T type slide switch.
MSK-01Q: 9.9mmX3.2mm, 180gf/250gf, 2P3T Type slide switch.
For inquiries about our products or pricelist, please leave to us and we will be in touch within 24 hours.
